Mitsubishi Z-20 User Manual

sre META PRA BET CEE ORME DSTO: 9 TARE ENEMIES PNR MISERY OE RO OIE IE BESET SR A CO I TO I I FN

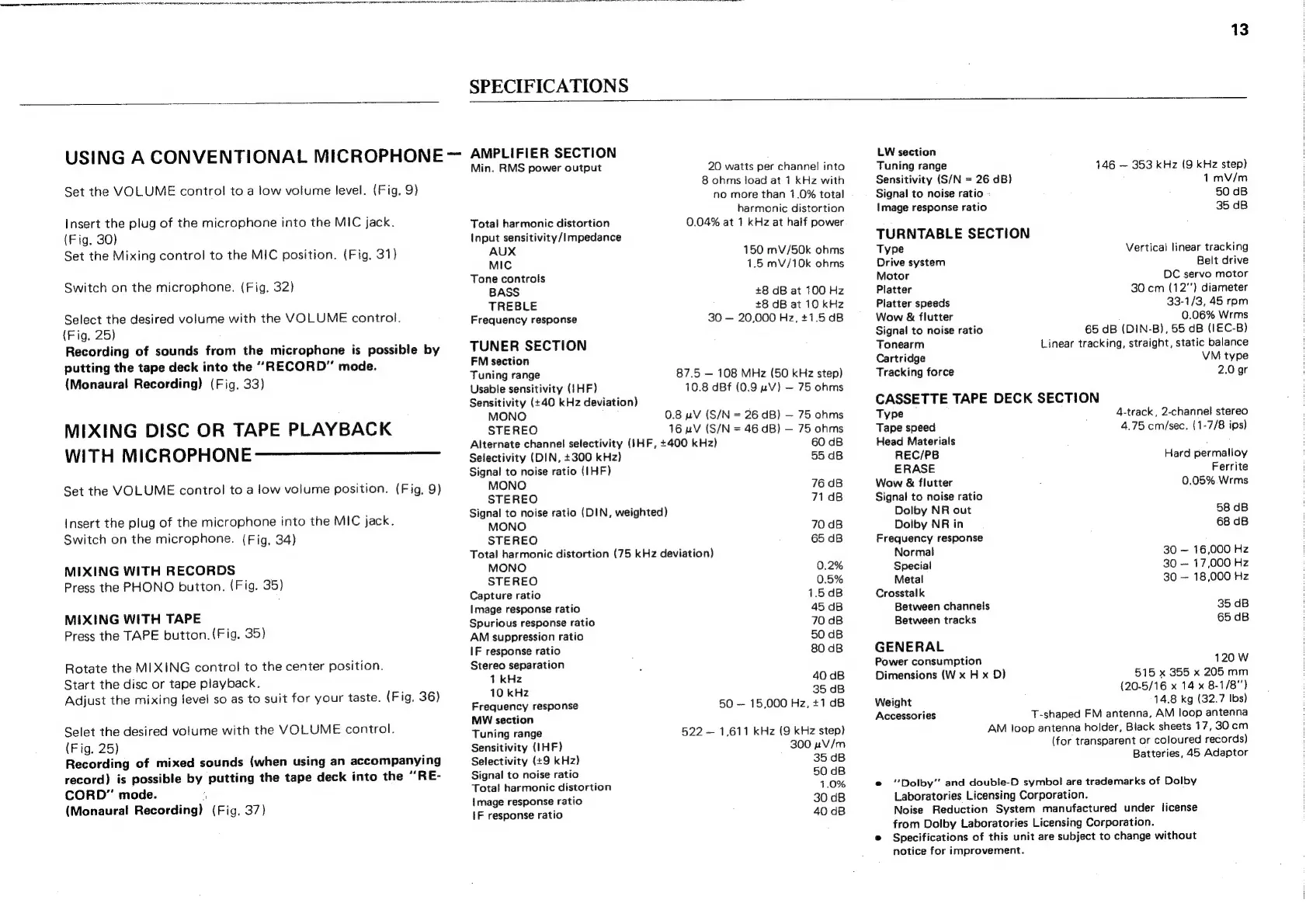

SPECIFICATIONS
13
USING
A
CONVENTIONAL
MICROPHONE
—
AMPLIFIER
SECTION
Set the VOLUME control to a low volume level. (Fig. 9)
Insert the plug of the microphone into the MIC jack.
(Fig. 30)
Set the Mixing control to the MIC position. (Fig. 31)
Switch on the microphone. (Fig. 32)
Select the desired volume with the VOLUME control.
(Fig, 25)
Recording of sounds from the microphone is possible by
putting the tape deck into the “RECORD” mode.
(Monaural Recording} (Fig. 33)
MIXING DISC OR TAPE PLAYBACK
WITH MICROPHONE
Set the VOLUME control to a low volume position. (Fig, 9)
insert the plug of the microphone into the MIC jack.
Switch on the microphone. (Fig, 34)
MIXING WITH RECORDS
Press the PHONO button. (Fig. 35)
MIXING WITH TAPE
Press
the
TAPE
button.
(Fig.
35)
Rotate
the
MIXING
control
to
the
center
position.
Start the disc or tape playback.
Adjust
the
mixing
jevel
so
as
to
suit
for
your
taste.
(Fig.
36)
Selet
the
desired
volume
with
the
VOLUME
control.
(Fig. 25)
Recording
of
mixed
sounds
(when
using
an
accompanying
record)
is
possible
by
putting
the
tape
deck
into
the
“RE-
CORD”
mode.
.
(Monaural Recording) (Fig. 37)
Min. RMS power output
Total harmonic distortion
Input sensitivity/Impedance
AUX
MIC
Tone controls
BASS
TREBLE
Frequency response
TUNER SECTION
FM section
Tuning range
Usable sensitivity (1 HF)
20 watts per channel into
8 ohms load at 1 kHz with
no more than 1.0% total
harmonic distortion
0.04% at 1 kHz at half power
150 mV/S50k ohms
1.5 mV/10k ohms
+8 dB at 100 Hz
+8 dB at 10 kHz
30 — 20,000 Hz, +1.5 dB
87.5 — 108 MHz (50 kHz step)
10.8 dBf (0.9 uV) — 75 ohms
Sensitivity (+40 kHz deviation)
MONO 0.8 nV (S/N = 26 dB) — 75 ohms
STEREO 16 nV (S/N = 46 dB) — 75 ohms
Alternate channel selectivity ((HF, +400 kHz) 60 dB
Selectivity (DIN, +300 kHz) 55 dB
Signal to noise ratio (IHF)
MONO 76 dB
STEREO 71 dB
Signal to noise ratio (DIN, weighted)
MONO 70 dB
STEREO 65 dB
Total harmonic distortion (75 kHz deviation)
MONO 0.2%
STEREO 0.5%
Capture ratio 1.5dB
Image response ratio 45 dB
Spurious response ratio 70 dB
AM suppression ratio 50 dB
IF response ratio 80 dB
Stereo separation
1
kHz
40
dB
10
kHz
35
dB
Frequency
response
50
—
15,000
Hz,
+1
dB
MW
section
Tuning range
Sensitivity (IHF)
Selectivity (£9 kHz)
Signal to noise ratio
Total harmonic distortion
image response ratio
IF response ratio
522 — 1,611 kHz (9 kHz step)
300 pV/m
35 dB
50 dB
1.0%
30 dB
40 dB
LW section
Tuning range
Sensitivity (S/N = 26 dB)
Signal to noise ratio -
Image response ratio
TURNTABLE SECTION
Type
Drive system
Motor
Platter
Platter speeds
Wow & flutter
Signal to noise ratio
Tonearm
Cartridge
Tracking force
146 ~— 353 kHz (9 kHz step)
1mV/m
50 dB
35 dB
Vertical linear tracking
Belt drive
DC servo motor
30 cm (12"') diameter
33-1/3, 45 rpm
0.06% Wrms
65 dB (DIN-B), 55 dB (IEC-B)
Linear tracking, straight, static balance
VM type
2.0 gr
CASSETTE TAPE DECK SECTION
Type
Tape speed
Head Materials
REC/PB
ERASE
Wow & flutter
Signal to noise ratio
Dolby NR out
Dolby NR in
Frequency response
Normal
Special
Metal
Crosstalk
Between channels
Between tracks
GENERAL
Power consumption
Dimensions (W x H x D)
Weight
Accessories
4-track, 2-channel stereo
4.75 cm/sec. (1-7/8 ips)
Hard permalloy
Ferrite
0.05% Wrms
58 dB
68 dB
30 — 16,000 Hz
30 — 17,000 Hz
30 — 18,000 Hz
35 dB
65 dB
120 W
515 x 355 x 205 mm
(20-5/16 x 14 x 8-1/8")
14.8 kg (32.7 Ibs)
T-shaped
FM
antenna,
AM
loop
antenna
AM
loop
antenna
holder,
Black
sheets
17,
30
cm
(for transparent or coloured records)
Batteries, 45 Adaptor
e “Dolby” and double-D symbol are trademarks of Dolby
Laboratories Licensing Corporation.
Noise
Reduction
System
manufactured
under
license
from
Dolby
Laboratories
Licensing
Corporation.
e
Specifications
of
this
unit
are
subject
to
change
without
notice for improvement.
