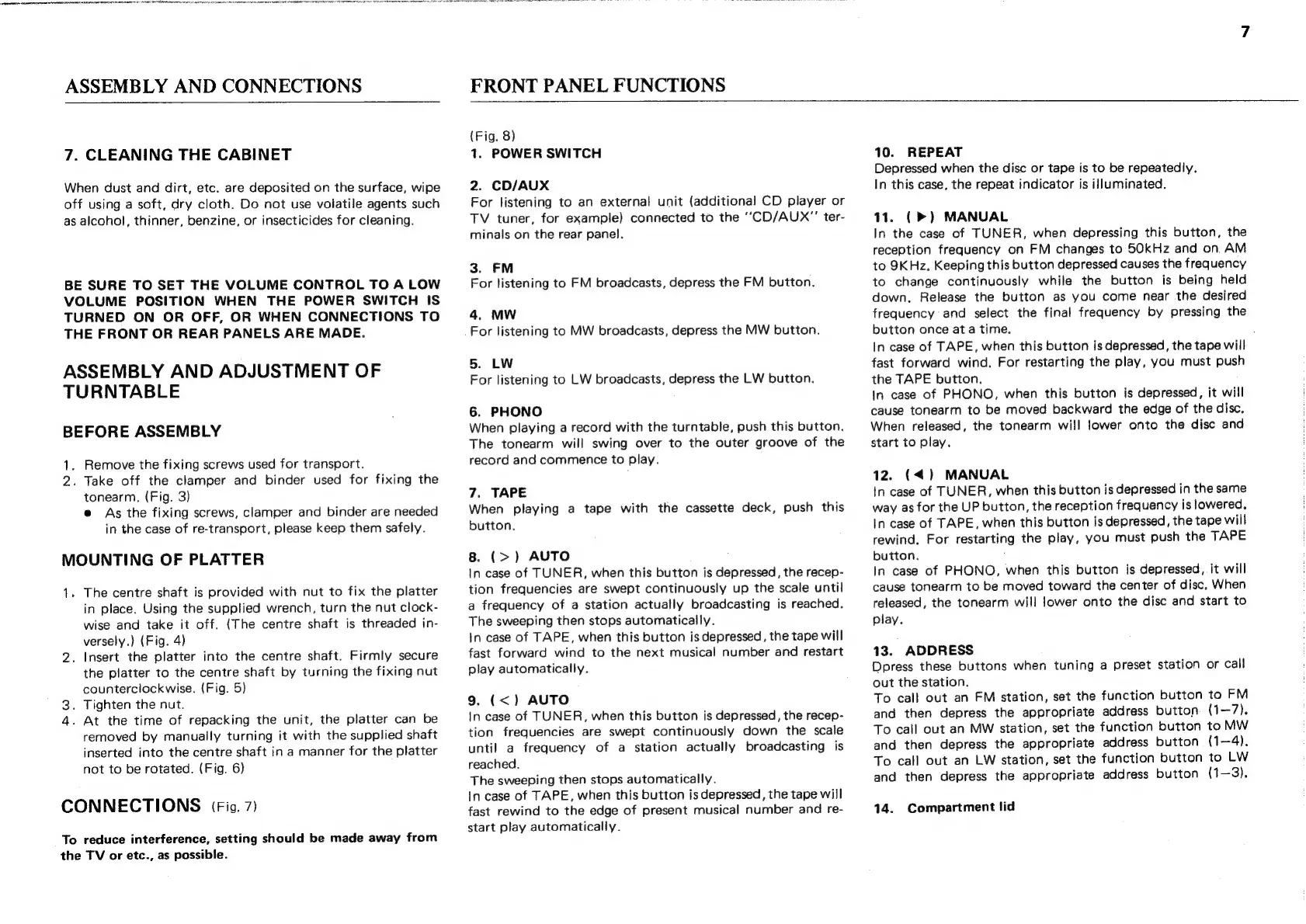

ASSEMBLY AND CONNECTIONS
7. CLEANING THE CABINET
When dust and dirt, etc. are deposited on the surface, wipe
off using a soft, dry cloth. Do not use volatile agents such
as alcohol, thinner, benzine, or insecticides for cleaning.
BE SURE TO SET THE VOLUME CONTROL TO A LOW
VOLUME POSITION WHEN THE POWER SWITCH IS
TURNED ON OR OFF, OR WHEN CONNECTIONS TO
THE FRONT OR REAR PANELS ARE MADE.
ASSEMBLY AND ADJUSTMENT OF
TURNTABLE
BEFORE ASSEMBLY
1. Remove the fixing screws used for transport.
2. Take off the clamper and binder used for fixing the
tonearm. (Fig. 3)
e As the fixing screws, clamper and binder are needed
in the case of re-transport, please keep them safely.
MOUNTING OF PLATTER
1. The centre shaft is provided with nut to fix the platter
in place. Using the supplied wrench, turn the nut clock-
wise and take it off. (The centre shaft is threaded in-
versely.) (Fig. 4)
2. Insert the platter into the centre shaft. Firmly secure
the platter to the centre shaft by turning the fixing nut
counterclockwise. (Fig. 5)
3. Tighten the nut.
4. At the time of repacking the unit, the platter can be
removed by manually turning it with the supplied shaft
inserted into the centre shaft in a manner for the platter
not to be rotated. (Fig. 6)
CONNECTIONS (Fig. 7)
To reduce interference, setting should be made away from
the TV or etc., as possible.
FRONT PANEL FUNCTIONS
(Fig. 8)
1. POWER SWITCH
2. CD/AUX
For listening to an external unit (additional CD player or
TV tuner, for example) connected to the ‘‘CD/AUX"' ter-
minals on the rear panel.
3. FM
For listening to FM broadcasts, depress the FM button.
4, MW
For listening to MW broadcasts, depress the MW button.
5. LW
For listening to LW broadcasts, depress the LW button.
6. PHONO
When playing a record with the turntable, push this button.
The tonearm will swing over to the outer groove of the
record and commence to play.
7. TAPE
When playing a tape with the cassette deck, push this
button.
8. (>) AUTO
In case of TUNER, when this button is depressed, the recep-
tion frequencies are swept continuously up the scale until
a frequency of a station actually broadcasting is reached.
The sweeping then stops automatically.
in case of TAPE, when this button is depressed, the tape will
fast forward wind to the next musical number and restart
play automatically.
9. (<) AUTO
In case of TUNER, when this button is depressed, the recep-
tion frequencies are swept continuously down the scale
until a frequency of a station actually broadcasting is
reached.
The sweeping then stops automatically.
In case of TAPE, when this button is depressed, the tape will
fast rewind to the edge of present musical number and re-
start play automatically.
10. REPEAT
Depressed when the disc or tape is to be repeatedly.
In this case, the repeat indicator is illuminated.
11. (») MANUAL
In the case of TUNER, when depressing this button, the
reception frequency on FM changes to 5O0kHz and on AM
to 9KHz. Keeping this button depressed causes the frequency
to change continuously while the button is being held
down, Release the button as you come near the desired
frequency and select the final frequency by pressing the
button once at a time. ‘
In case of TAPE, when this button is depressed, the tape will
fast forward wind. For restarting the play, you must push
the TAPE button.
In
case
of
PHONO,
when
this
button
is
depressed,
it
will
cause
tonearm
to
be
moved
backward
the
edge
of
the
disc.
When
released,
the
tonearm
will
lower
onto
the
disc
and
start
to
play.
12. (4) MANUAL
in
case
of
TUNER,
when
this
button
is
depressed
in
the
same
way
as for
the
UP
button,
the
reception
frequency
is
lowered,
In
case
of
TAPE,
when
this
button
is
depressed
,
the
tape
will
rewind,
For
restarting
the
play,
you
must
push
the
TAPE
button.
;
In case of PHONO, when this button is depressed, it will
cause tonearm to be moved toward the center of disc. When
released, the tonearm will lower onto the disc and start to
play.
13. ADDRESS
Dpress
these
buttons
when
tuning
a
preset
station
or
call
out
the
station.
To
call
out
an
FM
station,
set
the
function
button
to
FM
and
then
depress
the
appropriate
address
button
(1-7).
To
call
out
an
MW
station,
set
the
function
button
to
MW
and
then
depress
the
appropriate
address
button
(1-4).
To
call
out
an
LW
station,
set
the
function
button
to
LW
and
then
depress
the
appropriate
address
button
(1-3).
14. Compartment lid
