ROW SIX (Continued)

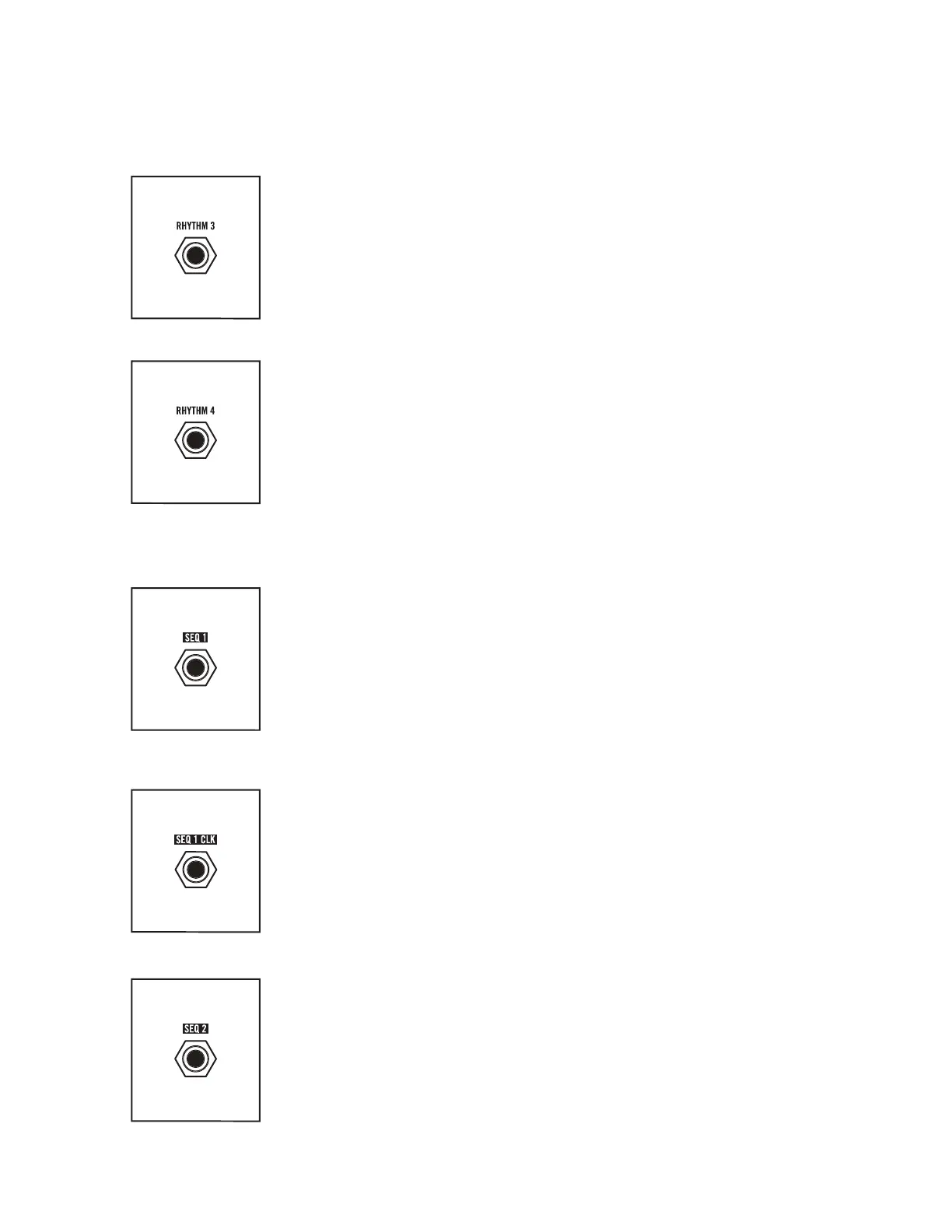

RHYTHM 3 INPUT
A control signal connected to this input sets the timing of Rhythm Generator 3
by controlling the value of the RHYTHM 3 knob, thereby selecting the integer
value (1-16) used to divide the current tempo. RHYTHM 3 knob should be
centered for the best range.
CV INPUT: -5V to +5V
RHYTHM 4 INPUT
A control signal connected to this input sets the timing of Rhythm Generator 4
by controlling the value of the RHYTHM 4 knob, thereby selecting the integer
value (1-16) used to divide the current tempo. RHYTHM 4 knob should be
centered for the best range.
CV INPUT: -5V to +5V
ROW SEVEN
SEQ 1 OUTPUT
The control signal available via this output reflects the value of the control
voltage created by the current step of Sequencer 1 and respects the settings of
both the QUANTIZE button and the SEQ OCT button.
CV OUTPUT: -5V to +5V
NOTE: The Sequencer outputs can be de-coupled from the Quantize setting (page 21)
and/or the Seq Oct setting (page 28).
SEQ 1 CLK OUTPUT
A clock signal based on the tempo of Sequencer 1 is available here.
CV OUTPUT: 0V to +5V
SEQ 2 OUTPUT
The control signal available via this output reflects the value of the control
voltage created by the current step of Sequencer 2 and respects the settings of
both the QUANTIZE button and the SEQ OCT button.
CV OUTPUT: -5V to +5V
NOTE: The Sequencer outputs can be de-coupled from the Quantize setting (page 21)
and/or the Seq Oct setting (page 28).
