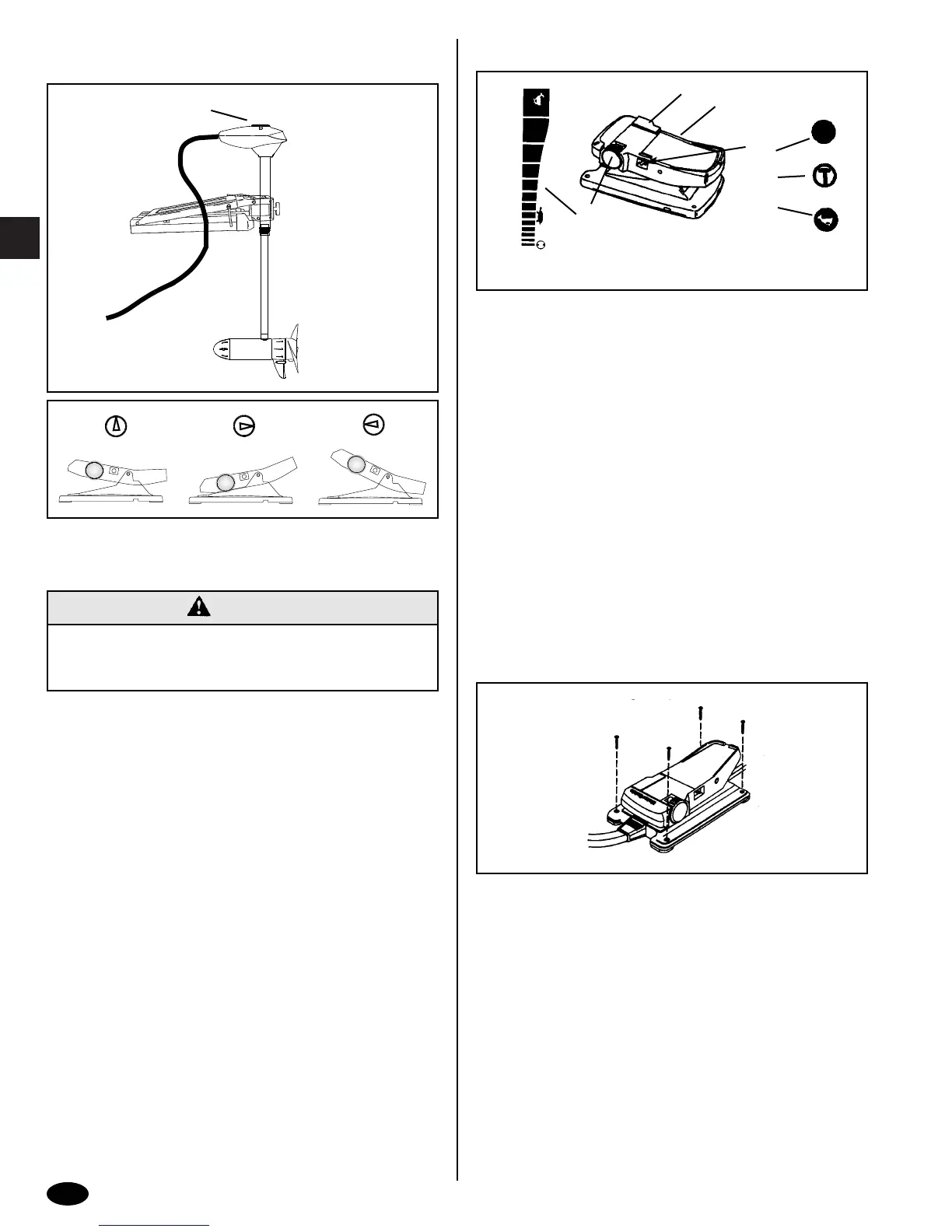

OPERATIONS
Directional indicator
1 Provides directional information at a glance. Pressing down
on the heel of the foot pedal will steer the boat to the left.
Pressing down on the toe of the foot pedal will steer the boat
to the right.
Speed control
2 The speed of your foot operated motor can be controlled with
your foot by rolling the speed control knob on the foot pedal
to the desired speed. The speed control is either 5 speed or
variable, depending on your model motor. The speed control
knob on a 5 speed motor is numbered 1 through 5 and
allows you to select a preset speed. The speed control knob
on a variable speed motor allows infinite speed selection.
Constant/Momentary/Hi-bypass
3 This 3 position switch provides constant on, momentary
variable and hi-speed bypass.
3a This allows motor to run continuously without the use of
the On/Off switch.
3b This allows motor to activate with the On/Off switch.
3c This will automatically deliver full thrust when the on/off
switch is activated.
4 On/Off Switch-This switch is located on side of the foot
pedal. To activate the motor, depress the ramped switch pad.
Permanent mounting
5 Determine the desired location that you wish to secure the
foot pedal. Place the foot pedal in the desired location. Using
a (3 mm) 7/64 inch drill bit, run the drill through the holes in
the corners of the foot pedal base and into the boat deck.
Using the four (4) #8 x 2" screws, run the screws through the
holes in the foot pedal base and securely into the holes in the
boat deck. (Refer to diagram above.)
8
GB
4
5
2
3a
3b
3c
2, 3, 4
a. Straight ahead
b. Right turn
c. Left turn
a
b c
5
1
1
Do not operate the unit while out of the water. Keep
clear of the propeller. A rotating propeller can cause
personal injury.
WARNING
90-10235021 502
