Motorola AP-5131 User Manual

Hardware Installation
7

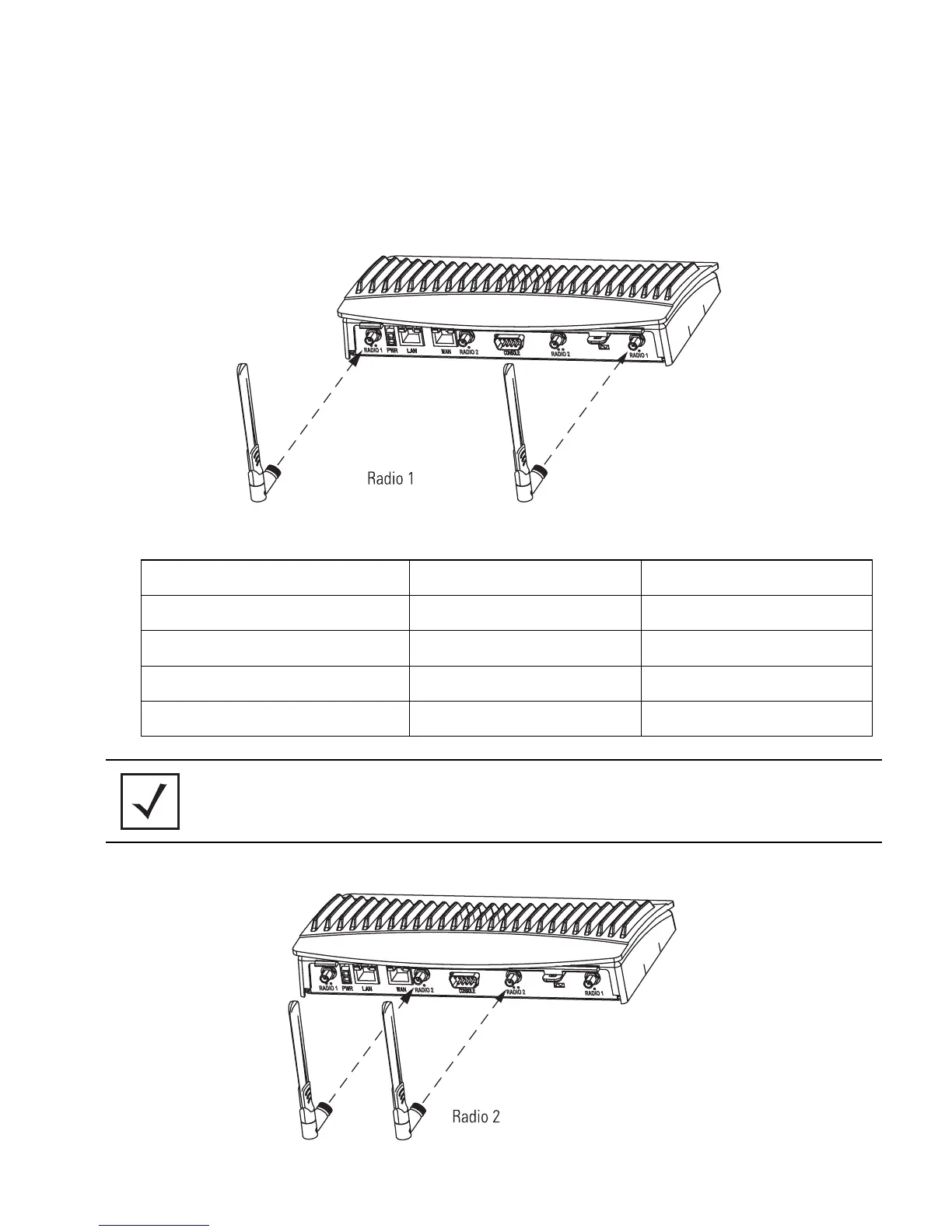

Certain Rogue AP Detection and Intrusion Detection features use an AP-5131 radio to perform dual-
band scanning. The dedicated radio should be connected to an appropriate dual-band dipole antenna
(Part No. ML-2452-APA2-01).
The 2.4 GHz antenna suite includes the following models:
Part Number Antenna Type Nominal Net Gain (dBi)
ML-2499-11PNA2-01R Wide Angle Directional 8.5
ML-2499-HPA3-01R Omni-Directional Antenna 3.3
ML-2499-BYGA2-01R Yagi Antenna 13.9
ML-2452-APA2-01 Dual-Band 3.0
NOTE An additional adapter is required to use ML-2499-11PNA2-01R and
ML-2499-BYGA2-01R model antennas. Please contact Motorola for more
information.
