3 CONNECTING YOUR DCX SET-TOP
13

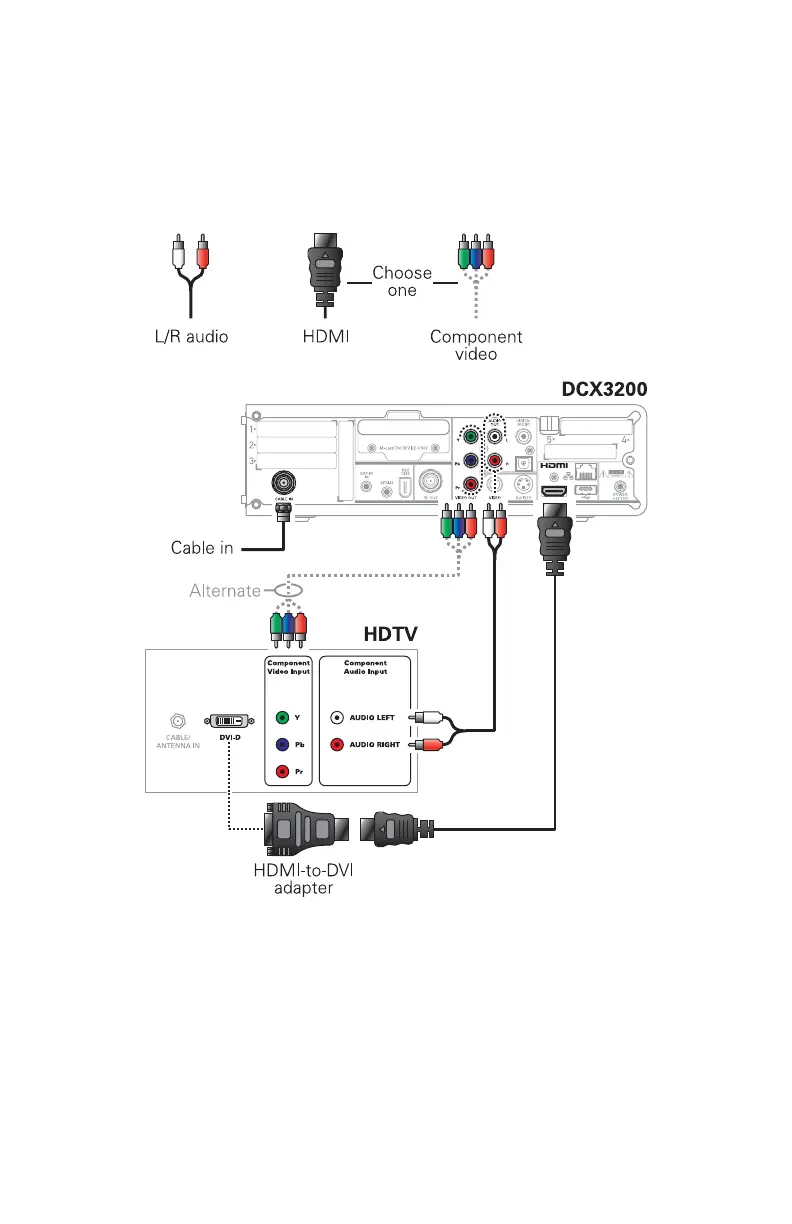

Connecting Your DCX Set-top to an HDTV — Separate
Video/Audio
Note: Only (1) video connection and (1) audi
o connection needs to be
made to an HDTV.
Note: Solid lines indicate opti
mum connections.
Note: HDMI-to-DVI adapter is not included with the set-top.
22
24
Table of Contents
Default Chapter
3
Important Safety Instructions
3
Table of Contents
9
1 Introduction
11
Front Panel
12
Rear Panel
13
2 Operation
15
Turning Power on and off
15
Changing Channels
15
Adjusting the Volume
15
Interactive Program Guide
15
M-Card
16
3 Connecting Your DCX Set-Top
17
Video Connection Options
17
Connecting HDTV - Single Connection for Video/Audio
19
Cable in
19
Hdmi
19
Ieee-1394
19
Connecting Your DCX Set-Top to an HDTV - Single Connection for Video/Audio
20
Connecting HDTV - Separate Video/Audio Connections
21
Cable in
21
DVI
21
Component Video (Ypbpr)
21
Audio
22
Connecting Your DCX Set-Top to an HDTV - Separate Video/Audio
23
Connecting Your DCX Set-Top to an HDTV - Alternative Audio
24
Connecting an A/V Receiver - Audio
25
Connecting Your DCX Set-Top to an A/V Receiver - Audio
26
Connecting an SDTV
27
Connecting Your DCX Set-Top to an SDTV
28
Connecting an SDTV and VCR/DVD Recorder
29
Connecting Your DCX Set-Top to an SDTV and VCR/DVD Recorder
30
Connecting an A/V Receiver, SDTV, and VCR/DVD Recorder
31
Connecting Your DCX Set-Top to an A/V Receiver, SDTV, and VCR/DVD Recorder
32
4 Recording Your Connections
33
Data Devices
34
Data Features
34
On-Screen Graphics
35
Configuring the Audio, Video, and Closed Caption Settings
37
Troubleshooting
51
Other manuals for Motorola DCX3200
Installation Manual
77 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Motorola DCX3200 and is the answer not in the manual?
Ask a question
Motorola DCX3200 Specifications
General
Brand
Motorola
Model
DCX3200
Category
Set-top boxes
Language
English
Related product manuals
Motorola DCX3200 P2
57 pages
Motorola STB DCX3200
57 pages
Motorola DCX3200-M P3
54 pages
Motorola DCX3220e
50 pages
Motorola DCX3400 Series
51 pages
Motorola DCX700
50 pages
Motorola DCX-3400
6 pages
Motorola DCH6416
44 pages
Motorola DCT3400 Series
48 pages
Motorola DCX3200 Series
2 pages
Motorola VIP1002E
24 pages
Motorola MTS HDTV set-top box
65 pages
