1-2 INSTALLATION
The following table lists power cables available for this radio:
2.2 Power Cable Installation Procedure
Begin the power cable installation as follows:
1. Determine a routing plan, keeping in mind where the radio is to be mounted.
2. Locate an existing hole with grommet in the vehicle fire wall, or use a 9.5 mm (3/8-inch) bit to
drill an access hole in the fire wall. Install a grommet with a 5 mm (3/16-inch) inside diameter
into the hole to protect the power cable.
3. From inside the vehicle, feed the red and black leads (without the lugs attached) through the
access hole and into the engine compartment. (See Figure 1-1 Power Cable Routing into the
Engine Compartment)
Table 1-1 Power Cables
Number Description Rating
HKN4137_ Low power cable to battery 1-25W; 15A fuse; 14 AWG 3m
HKN4191_ High Power Cable to battery 25-45W; 20A fuse; 12 AWG 3m
CAUTION: Improper handling with the power cable may cause shorting to ground. Ensure
that during radio installation the power cable fuse is removed.
CAUTION: Be very careful not to damage existing wires.

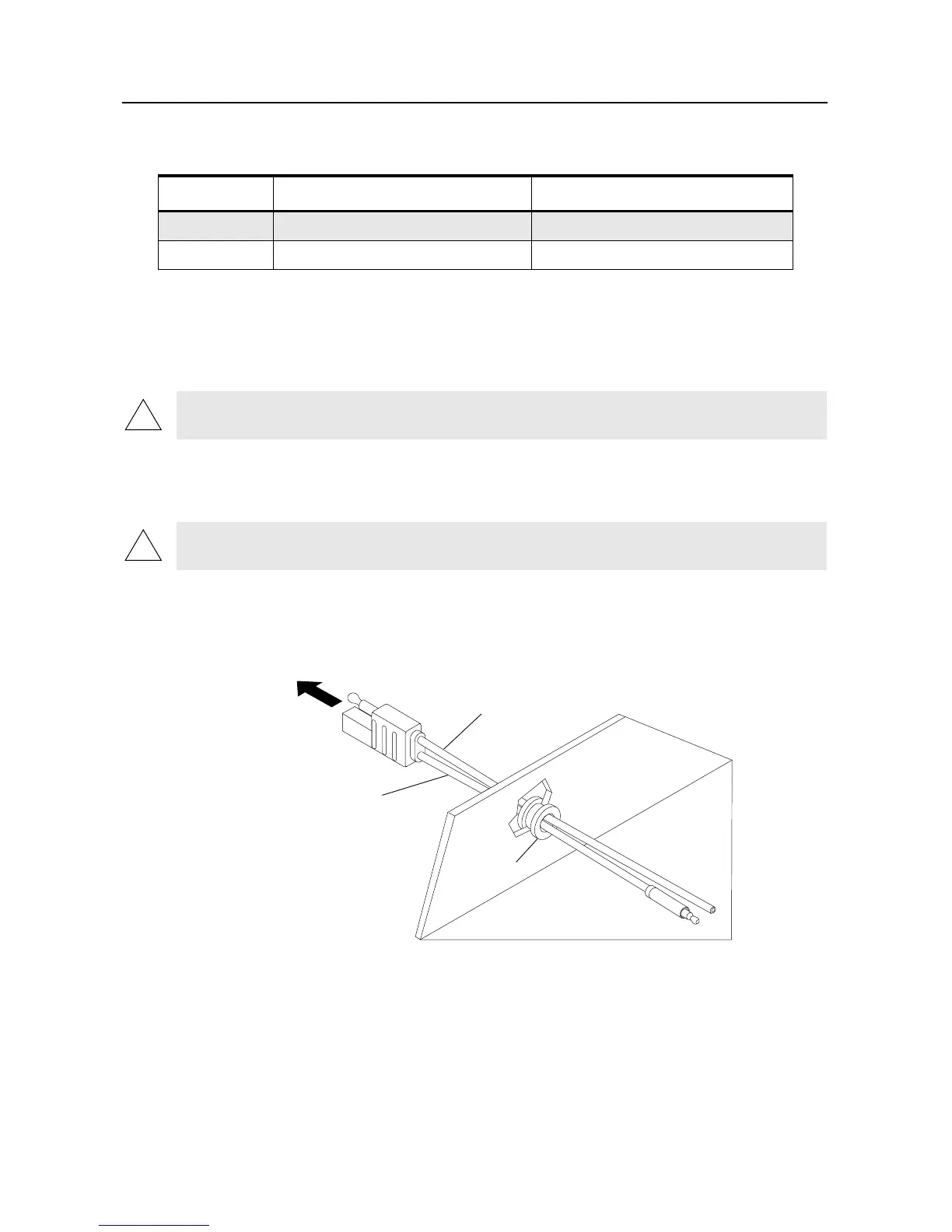

Figure 1-1 Power Cable Routing into the Engine Compartment
!
!
Black Lead
Red Lead
Firewall
Grommet
Engine Compartment
To Radio
FL0830246-O
FL0830246-O
To Next Page
