Installation Options 1-9
5.0 Installation Options
5.1 Radio Mounting in Dashboard
5.1.1 To Install the Radio in an Automotive Dashboard:
1. Open out the radio cut-out in the dashboard to ISO 7736 specification (182mm x 53mm).
2. Remove the Top plastic cover off the radio.
3. Insert the mounting frame into the cut-out and retain it by bending back the relevant fixing
tabs, using all 6 where possible, to hold it in place. Press the bezel onto the mounting frame.
5.1.2 To Mount the Complete Radio in the Frame:
1. Provide the electrical connections to the radio for power, antenna and accessories as shown
in Figure 1-4 Connections to the Back of Radio.
2. Plug in all the connectors and push the radio firmly into the mounting frame until the two
springs snap into place.
NOTE
1. The tabs are easily bent back by twisting a large flat-bladed screwdriver in the slot
behind the tabs.
2. For a more secure installation the top and rear of the frame should also be secured
with screws.
3. The demounting tool can be used as an aid to mounting as well as demounting.

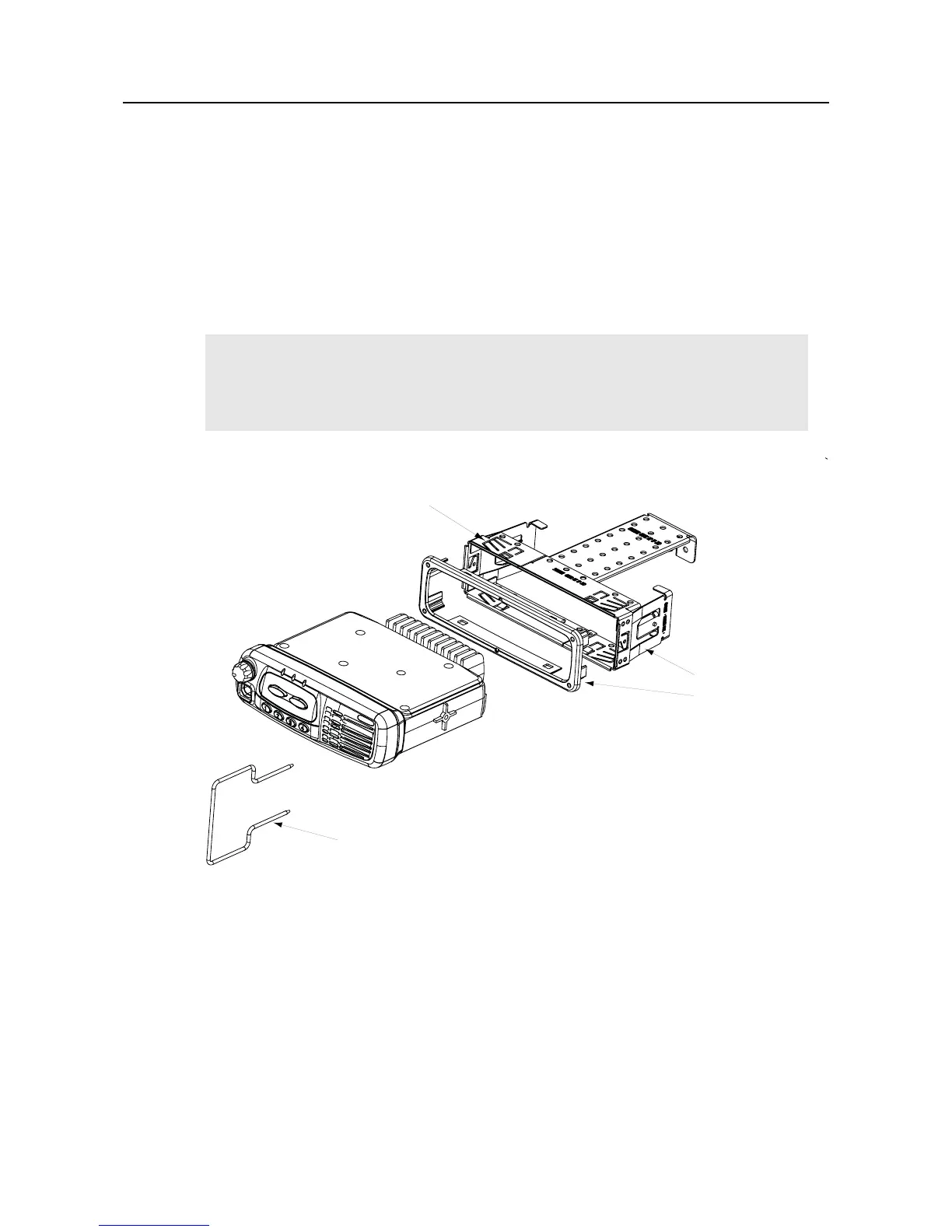

Figure 1-6 Mounting the Radio into the Dashboard
DIN MOUNT
MOUNTING FRAME
RLN4782
TABS
DEMOUNTING TOOL
P/N 8164298B01
ZWG0130399-A
