User Manual
10
w
alls, ceilings, or other objects that the wireless signals must pass through limit signal
range. Typical ranges vary depending on types of materials and background RF
noise in your home or business.
2
.2.2
Connecting the Device
Step 1
C
onnect the DSL port of the router and the Modem port of the splitter
with a telephone cable; connect the phone to the phone port of the
splitter through a cable; and connect the incoming line to the Line port of
the splitter.
The spliiter has three ports:
Line: Connect to a wall phone jack (RJ-11 jack)
Modem: Connect to the Line interface of the router
Phone: Connect to a telephone set
Step
2
C
onnect the LAN port of the router to the network card of the PC through
an Ethernet cable.
Step
3
Plu
g the power adapter to the wall outlet and then connect the other end
of it to the Power port of the router.

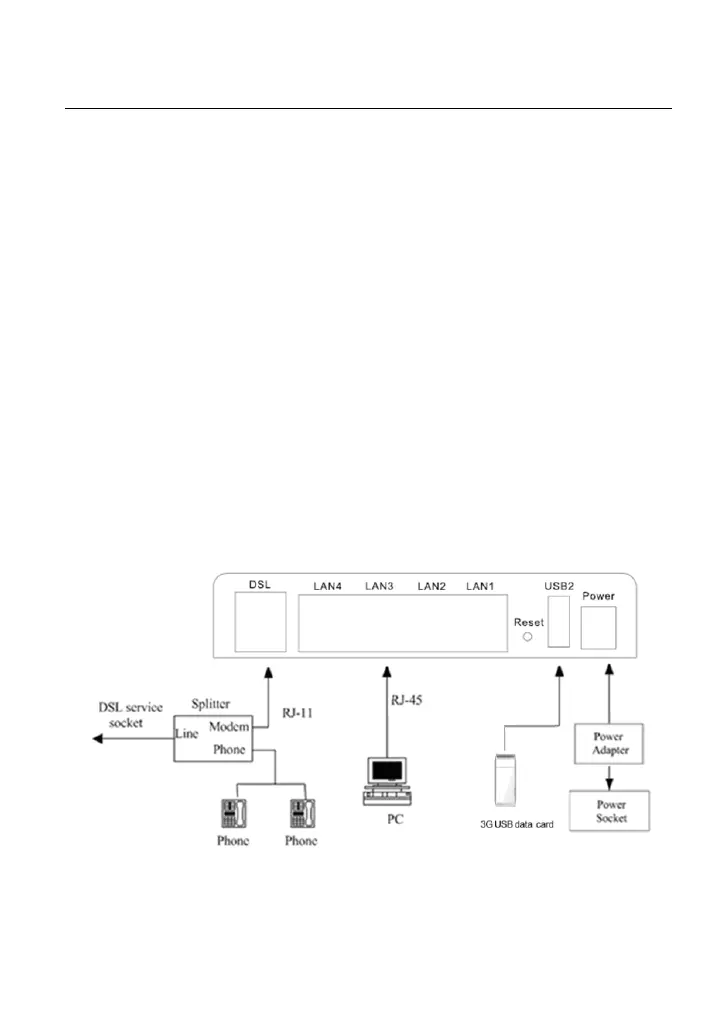

The followig figure displays the connection of the DSL router, PC, and telephones.
Figure 4 Connecting the DSL router
