18 September 26, 2006 6809505A63-O
Disassembly V3xx
Removing and Replacing the Rear Housing
1. Remove the battery cover, battery, USIM and memory card as described in the procedures.
2. Using a Torx driver with a T-6 bit, remove the screws at each side of the phone. Retain the
screws for reassembly. See Figure 4.
3. Release the four housing latches by inserting the flat end of the plastic disassembly tool
into the openings on the rear housing.
G
This product contains static-sensitive devices. Use anti-static handling procedures
to prevent electrostatic discharge (ESD) and component damage.
G
In addition to 2 screws, the rear housing assembly is fastened with plastic latches.
These are fragile and should be released with care.
061425o

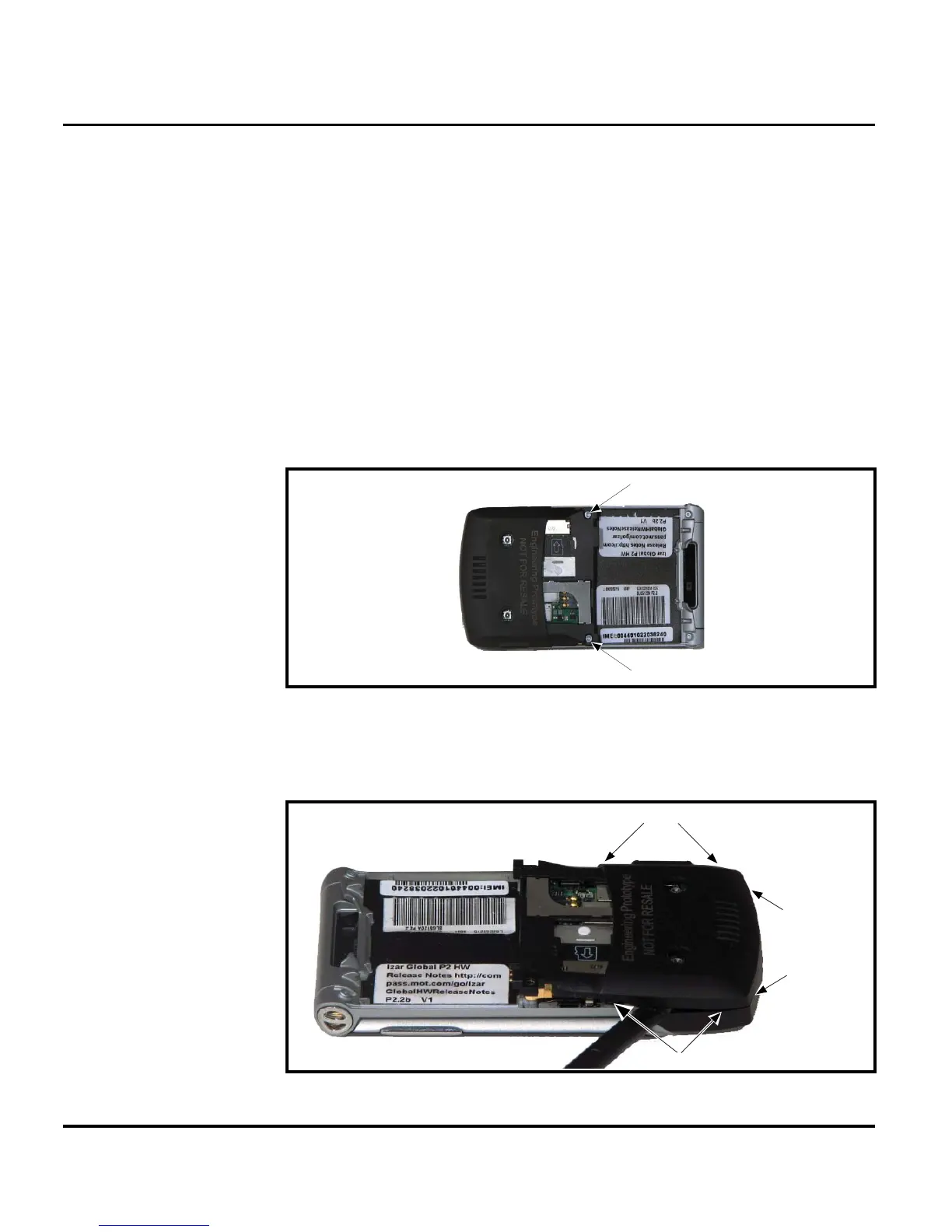

Figure 4. Removing the Rear Speaker Housing Screws
061426o
Figure 5. Removing the Rear Housing Latches
Housing Screw
Housing Screw
Housing Latch
Housing Latch
Housing Latch
Housing Latch
