Motorola XT420 User Manual

English
8
BATTERIES AND CHARGERS
Charging with the Drop-in Tray Single Unit
Charger
1. Place the Drop-in Tray Single Unit Charger on a flat surface.
2. Insert the connector of the Power Supply into the port on the
side of the Drop-in Tray Single Unit Charger.
3. Plug the AC Adaptor into a power outlet.
4. Insert the radio into the Drop-in Tray Single Unit Charger with
the radio facing the front, as shown.
Note: When charging a battery attached to a radio, turn the
radio OFF to ensure a full charge. See “Operational
Safety Guidelines” on page 3 for more information.
Charging a Standard Battery
The Drop-in Tray Single Unit Charger is designed to
charge either the battery (with the radio or with radio and
holster on) or a standalone battery.

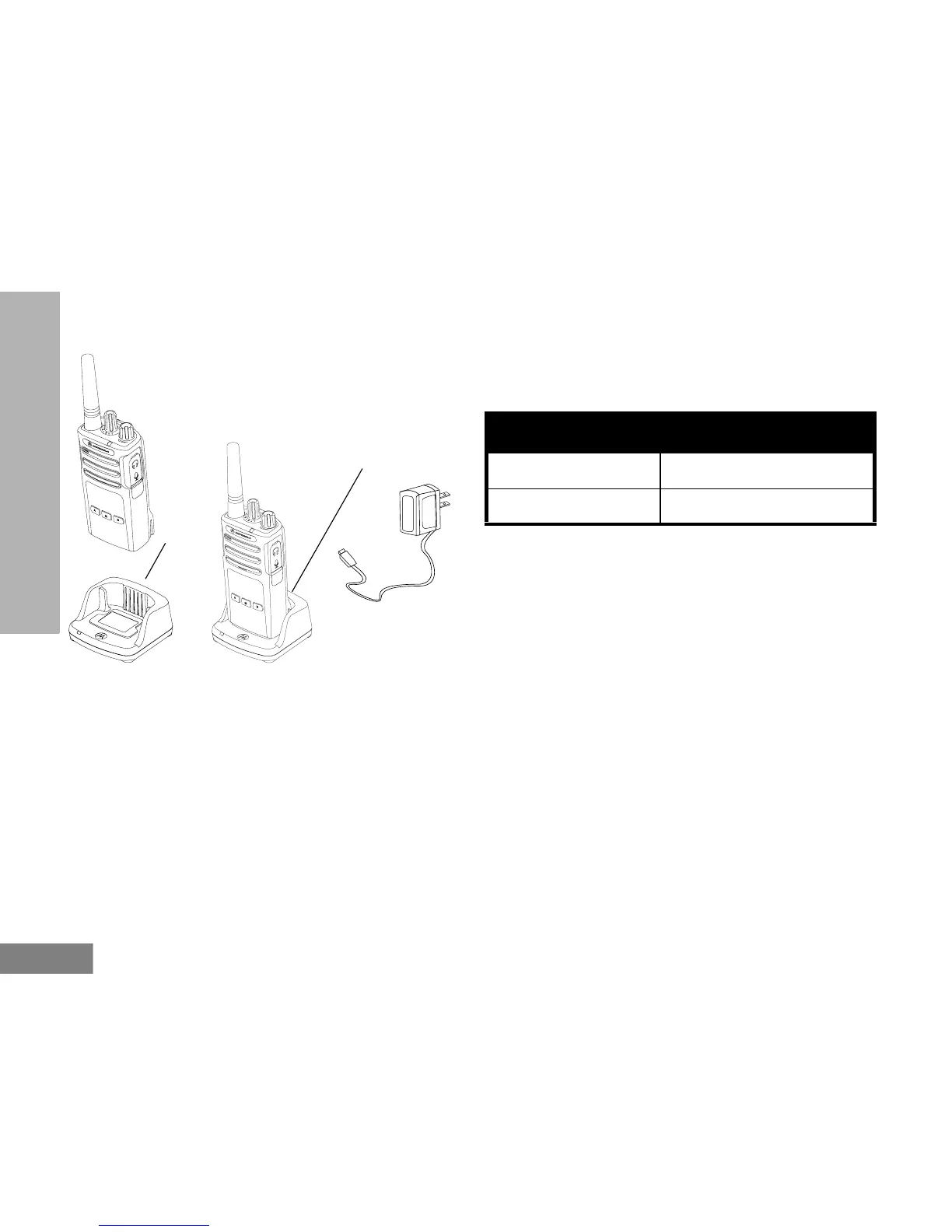

Power Supply
(Transformer)
Drop-in Tray Charger
Drop-in Tray
Charger
Port
Table 1: Motorola Authorized Batteries
Part Number Description
PMNN4434_R Standard Li-Ion Battery
PMNN4453_R High Capacity Li-Ion Battery

Motorola XT420 Specifications

General

Purpose	Multi-Use Radio Service (MURS)
Maximum range	- m
Operating frequency	446.00625 - 446.19375 MHz
Rechargeable	Yes
Battery life (max)	20 h
Product color	Black
Tones quantity	6
Transmit power	500 mW
International Protection (IP) code	IP55
Charger	No
Quantity	1
Operating temperature (T-T)	-30 - 60 °C

Weight and Dimensions

Depth	40 mm
Width	58 mm
Height	116 mm
Weight	244 g
