A-5
MS-7599
hardware defauLt Setting

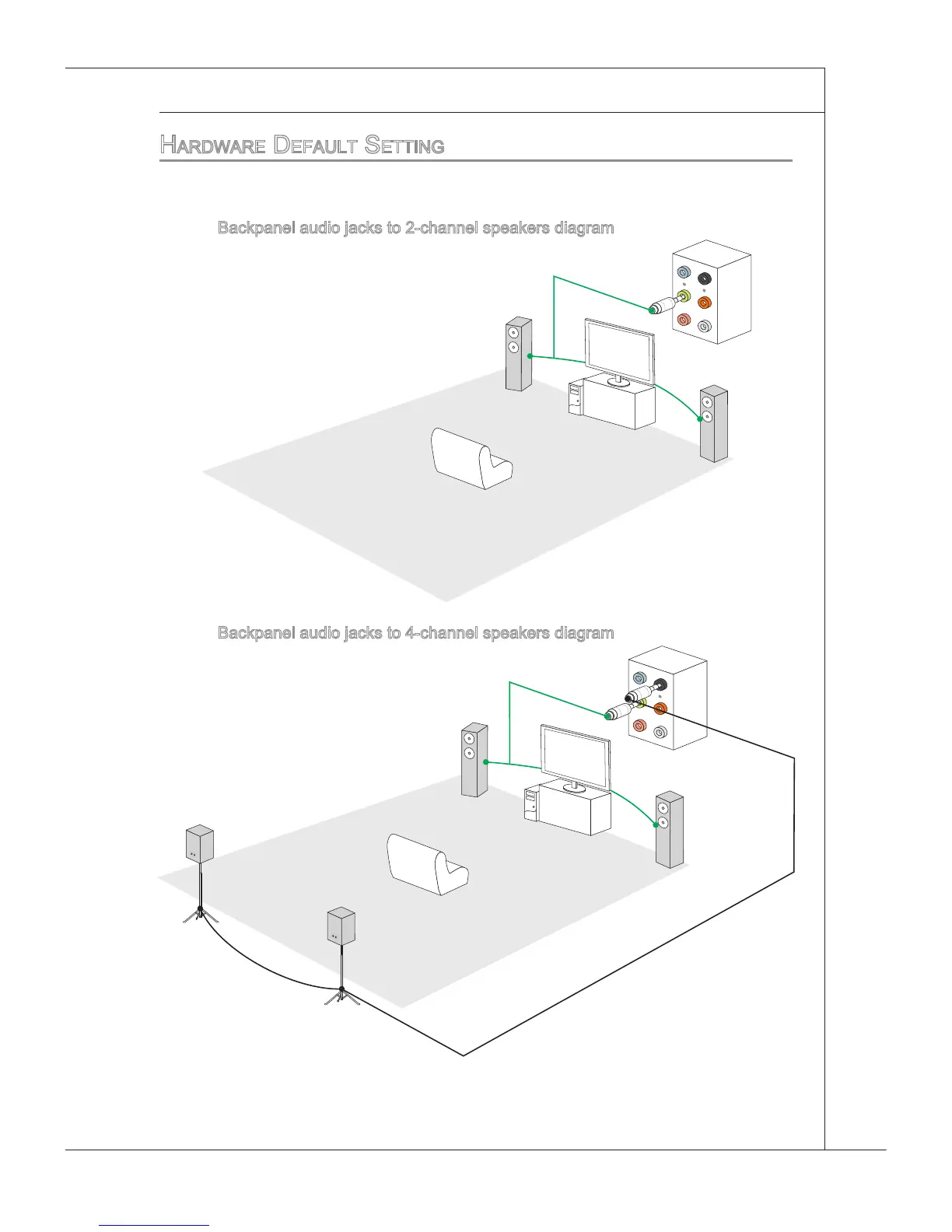

The followng dagrams are audo back panel default settng.
Backpanel audo jacks to 2-channel speakers dagram
Front
Backpanel audo jacks to 4-channel speakers dagram
Rear
Front
■
■
