Rear I/O Panel

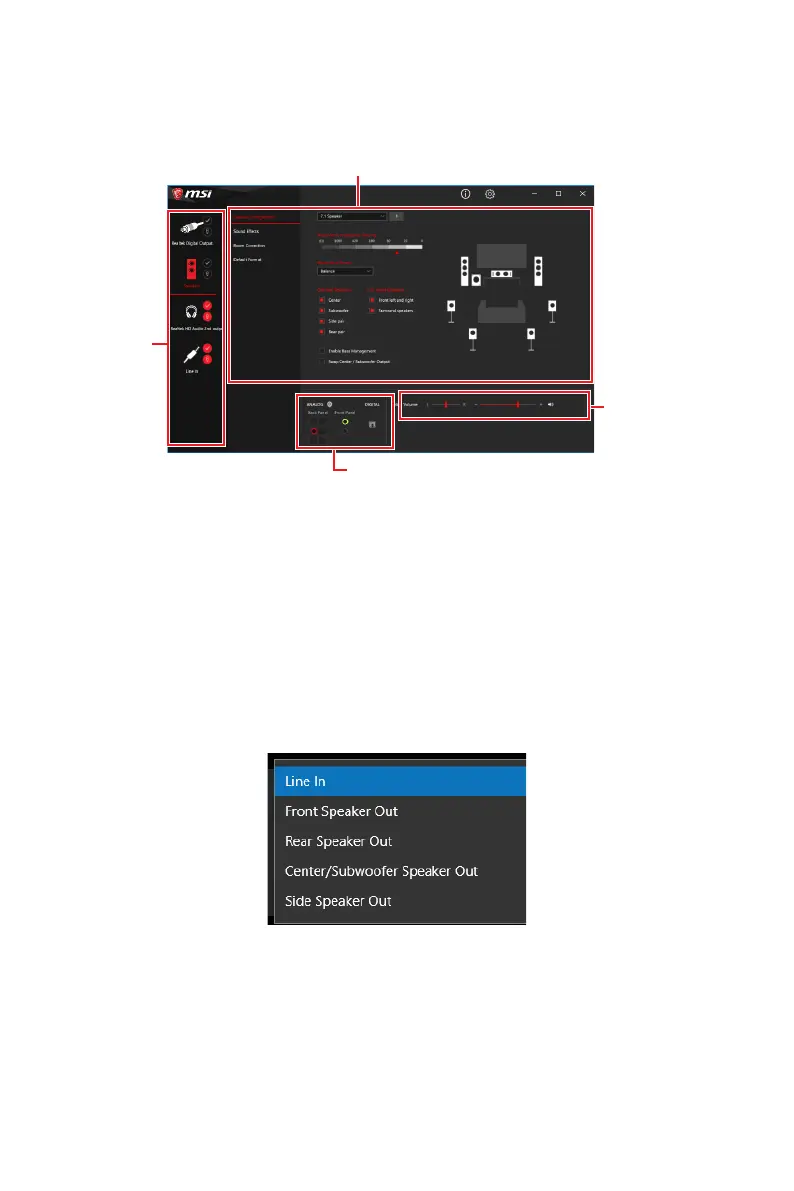

Realtek Audio Console
better sound experience.
Device Selection - allows you to select a audio output source to change the related
options. The check sign indicates the devices as default.
Application Enhancement - the array of options will provide you a complete
guidance of anticipated sound effect for both output and input device.
Main Volume - controls the volume or balance the right/left side of the speakers
that you plugged in front or rear panel by adjust the bar.
Jack Status - depicts all render and capture devices currently connected with your
computer.
Auto popup dialog
which device is current connected.
Each jack corresponds to its default setting as shown on the next page.
Jack Status
Device
Selection
Main Volume
Application Enhancement
Important
The pictures above for reference only and may vary from the product you purchased.
