Overview of Components
SATA1~6: SATA 6Gb/s Connectors
These connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device.
BAT1
SATA2
SATA1
Important
Please do not fold the SATA cable at a 90-degree angle. Data loss may result during
transmission otherwise.
recommended that the flat connector be connected to the motherboard for space
saving purposes.
SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M.2 slot.
SATA5
SATA6
SATA3
SATA4
BAT1

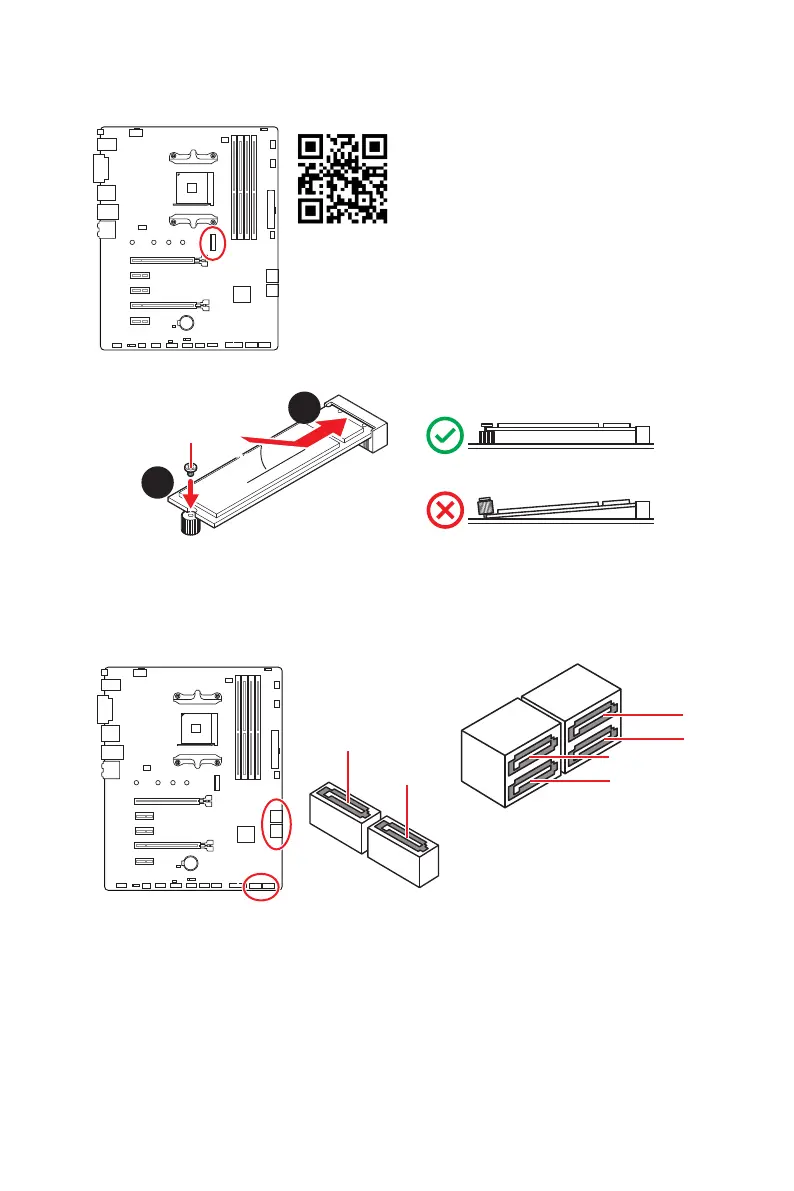

M2_1: M.2 Slot (Key M)
Video Demonstration
Watch the video to learn how to Install
M.2 module.
M2_1 slot installation
1. Insert your M.2 SSD into the M.2 slot at a 30-degree
angle.
2. Secure the M.2 SSD in place with the M.2 screw.
30º30º
3
4
M.2 screw
To Next Page
