MSI B450 TOMAHAWK MAX II User Manual

24
Overview of Components
BAT1

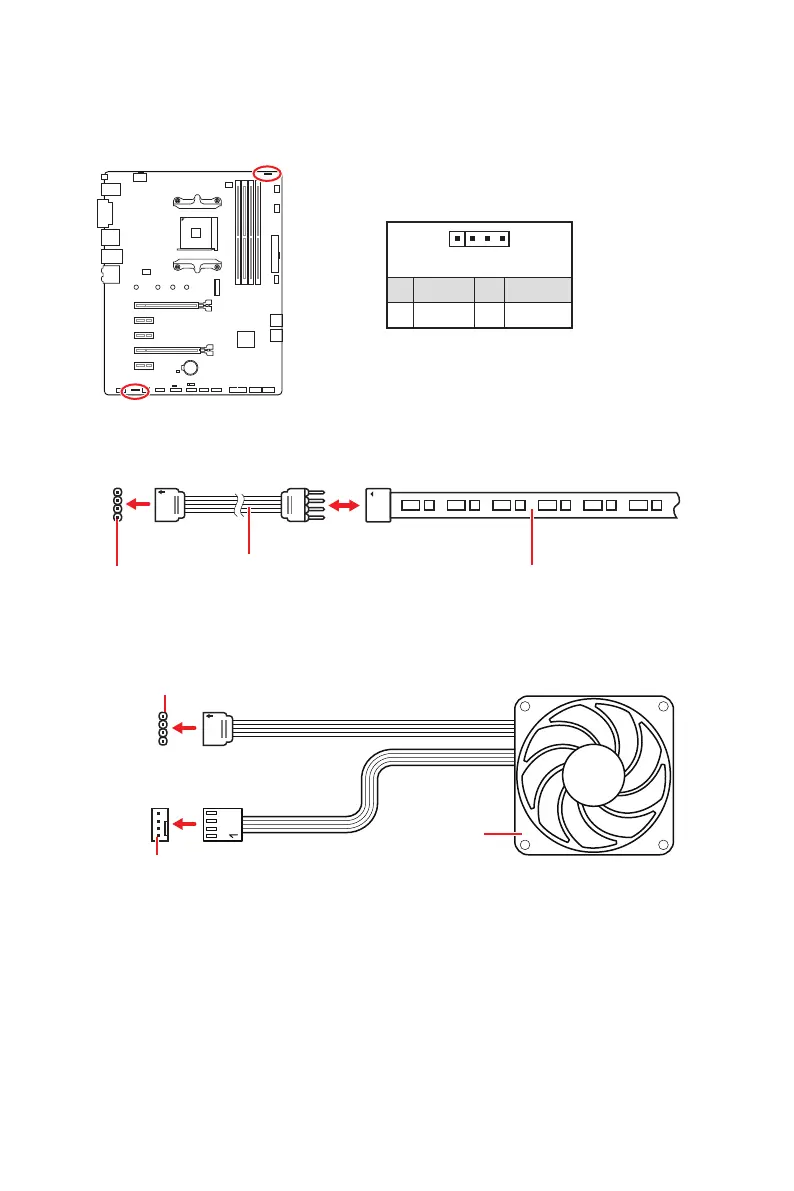

JRGB1~2: RGB LED connectors
The JRGB1/2 connectors allow you to connect the 5050 RGB LED strips 12V.
1
1 +12V 2 G
3 R 4 B

Important
 The JRGB connector supports up to 2 meters continuous 5050 RGB LED strips
(12V/G/R/B) with the maximum power rating of 3A (12V).
 Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing the RGB LED strip.
 
1
G
R
B
JRGB
connector
RGB extension
cable
5050 RGB LED strips 12V
RGB LED Strip Connection
1
1
G
R
B
JRGB connector
System Fan connector
RGB LED Fan Connection
RGB LED Fan
