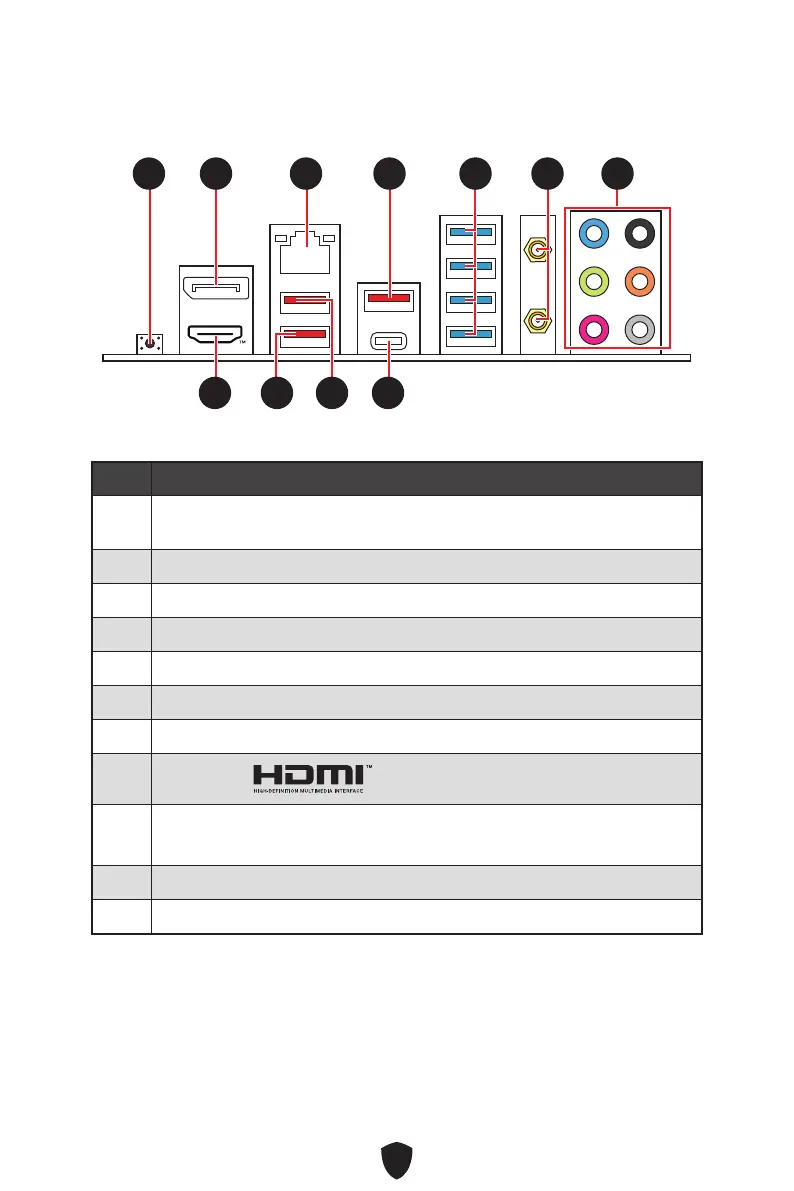

Back Panel Connectors
11
88 99 1010 1111
22 44 77
Item Description
1
Flash BIOS button - Please refer to page 53 for details about updating BIOS
with Flash BIOS button.
2 DisplayPort
3 2.5 Gbps LAN jack
4 USB 3.2 Gen 2 10Gbps Type-A port (From CPU)
5 USB 3.2 Gen 1 5Gbps Type-A ports (From Hub-1074)
6 Wi-Fi antenna connectors
7 Audio jacks
8
HDMI™ port
9
USB 3.2 Gen 2 10Gbps Type-A port (From CPU)
Flash BIOS Port
10 USB 3.2 Gen 2 10Gbps Type-A port (From CPU))
11 USB 3.2 Gen 2x2 20Gbps Type-C port (From B650 chipset)
