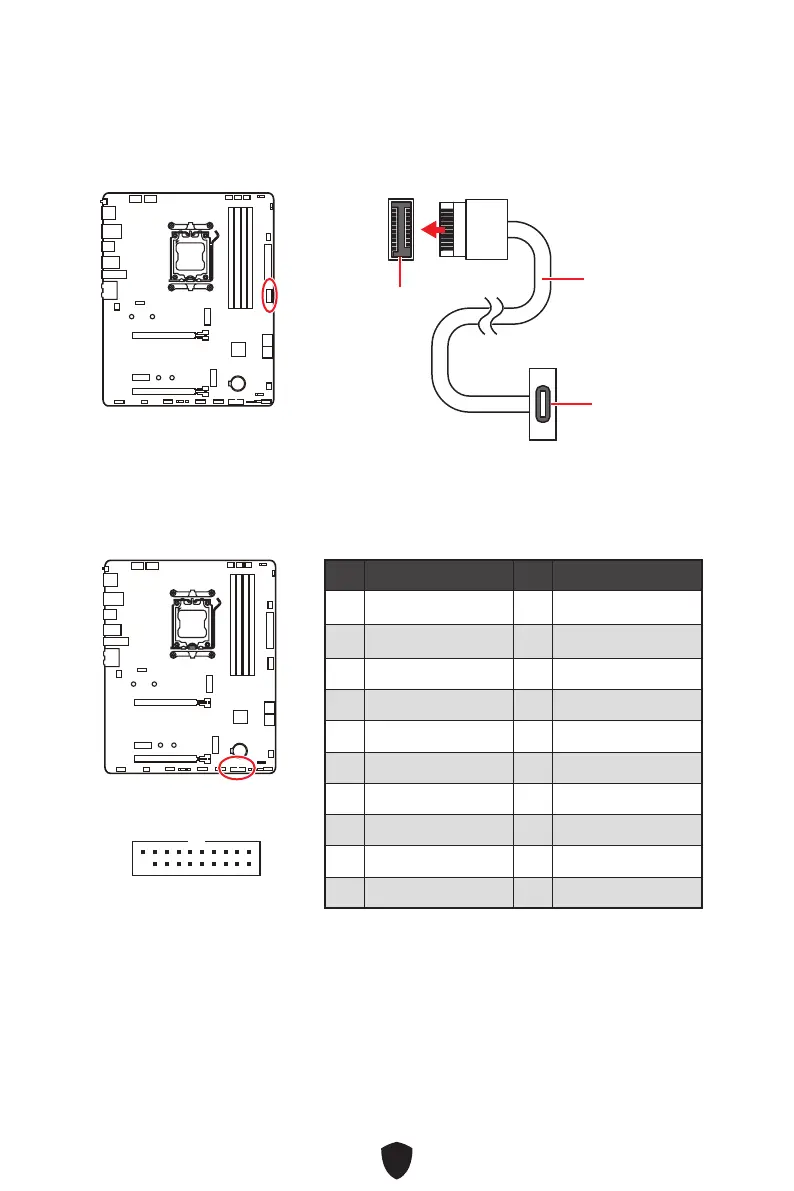

JUSB2: USB 3.2 Gen 1 Connector
These connectors allow you to connect USB 3.2 Gen 1 5Gbps ports on the front panel.
Important
Note that the Power and Ground pins must be connected correctly to avoid possible
damage.
Pin Signal Name Pin Signal Name
1 Power 2 USB3_RX_DN
3 USB3_RX_DP 4 Ground
5 USB3_TX_C_DN 6 USB3_TX_C_DP
7 Ground 8 USB2.0-
9 USB2.0+ 10 Ground
11 USB2.0+ 12 USB2.0-
13 Ground 14 USB3_TX_C_DP
15 USB3_TX_C_DN 16 Ground
17 USB3_RX_DP 18 USB3_RX_DN
19 Power 20 No Pin
1 10
11
20
JUSB1: USB 3.2 Gen 2 10Gbps Type-C front panel Connector
This connector allows you to connect USB Type-C connector on the front panel. The
connector possess a foolproof design. When you connect the cable, be sure to connect
it with the corresponding orientation.
JUSB1
USB Type-C Cable
USB Type-C port on
the front panel
To Next Page
