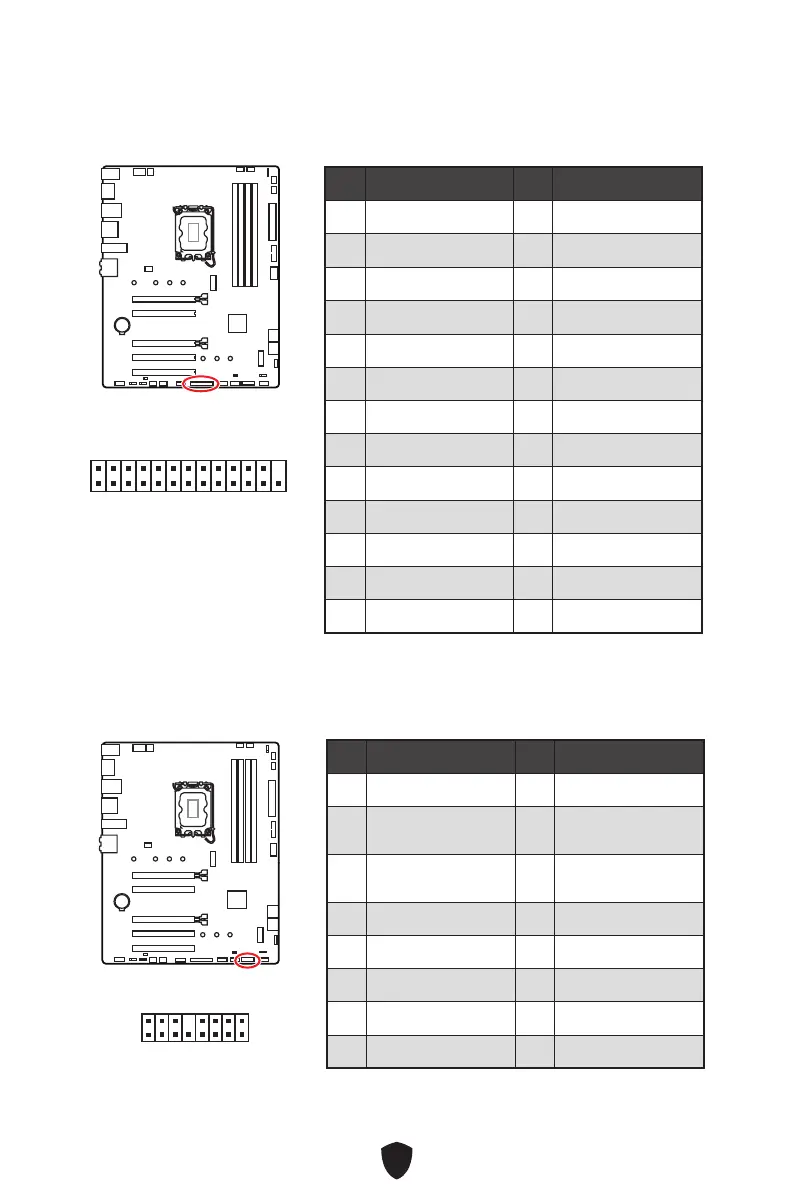

38
1
2 26
25
1 RSTB# 2 AFD#
3 PRND0 4 ERR#
5 PRND1 6 PINIT#
7 PRND2 8 LPT_SLIN#
9 PRND3 10 Ground
11 PRND4 12 Ground
13 PRND5 14 Ground
15 PRND6 16 Ground
17 PRND7 18 Ground
19 ACK# 20 Ground
21 BUSY 22 Ground
23 PE 24 Ground
25 SLCT 26 No Pin
1
2 16
15
1 TBT_FORCE_PWR 2 TBT_S0IX_ENTRY_REQ
3
TBT_CIO_PLUG_
EVENT#
4 TBT_S0IX_ENTRY_ACK
5 SLP_S3#_TBT 6
TBT_PSON_
OVERRIDE_N
7 SLP_S5#_TBT 8 No Pin
9 Ground 10 SMBCLK_VSB
11 DG_PEWAKE# 12 SMBDATA_VSB
13 TBT_RTD3_PWR_EN 14 Ground
15 TBT_CARD_DET_R# 16 PD_IRQ#
