MSI B760 GAMING PLUS WIFI User Manual

34

󹆢󸋘
󸕂󶅛󸓆󳩢󴊈󹩚󴽦󳱺󶮥󾖞󵷠󳋞󶑡󲕣󸹒󳲞󱵰󸼄󵯝󵷜󹩚󴽦󱣼󳦔󲑠󾖞󶅛󱥧󱛞󴡉󴍆󶑡󲹥󳺡󱢖󾖜
󾖛󹩚󴽦󳲞󹲋
󸸳󱝭󳲞󹲋󷅯󸛮󳞅󸹒󳲞󹩚󴽦󱣼󳦔󲑠󾖜

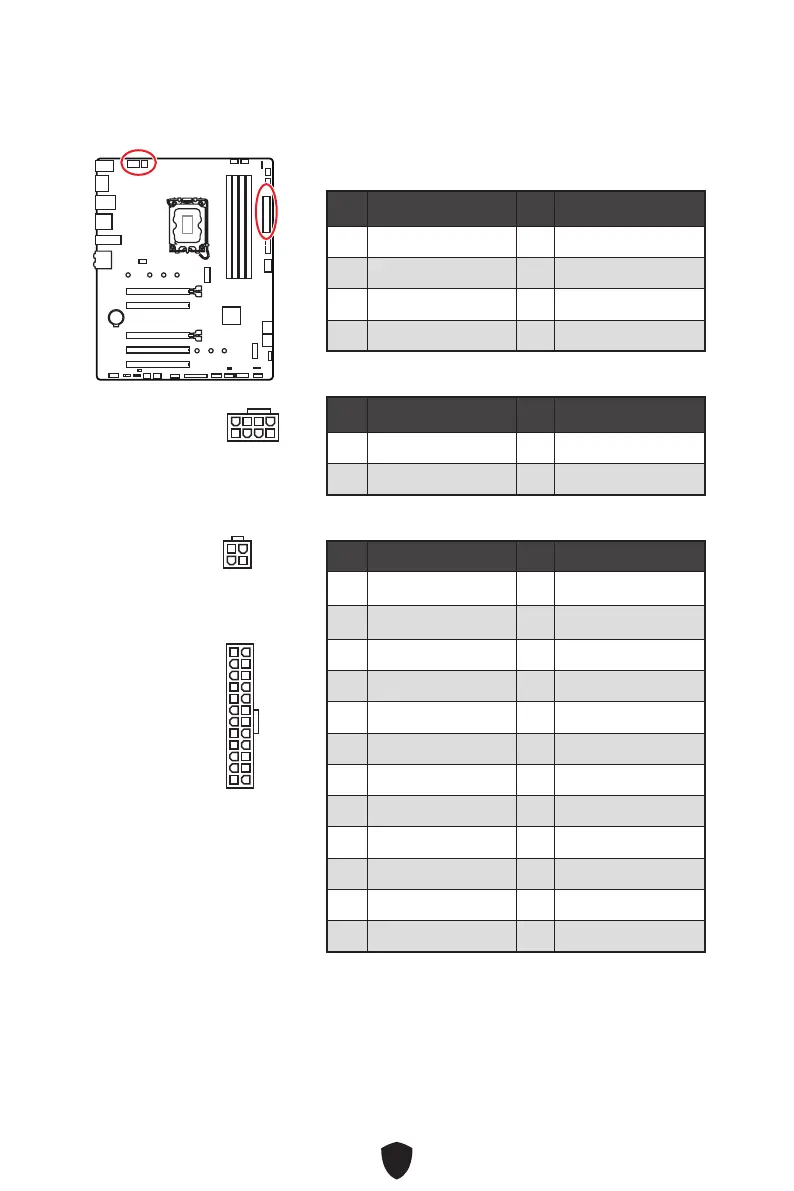

CPU_PWR1
󳲞󷉥 󸏁󷵏󲂁󶏺 󳲞󷉥 󸏁󷵏󲂁󶏺
1 Ground 2 Ground
3 Ground 4 Ground
5 +12V 6 +12V
7 +12V 8 +12V
CPU_PWR2
󳲞󷉥 󸏁󷵏󲂁󶏺 󳲞󷉥 󸏁󷵏󲂁󶏺
1 Ground 2 Ground
3 +12V 4 +12V
ATX_PWR1
󳲞󷉥 󸏁󷵏󲂁󶏺 󳲞󷉥 󸏁󷵏󲂁󶏺
1 +3.3V 2 +3.3V
3 Ground 4 +5V
5 Ground 6 +5V
7 Ground 8 PWR OK
9 5VSB 10 +12V
11 +12V 12 +3.3V
13 +3.3V 14 -12V
15 Ground 16 PS-ON#
17 Ground 18 Ground
19 Ground 20 Res
21 +5V 22 +5V
23 +5V 24 Ground
5
4 1
8
CPU_PWR1
CPU_PWR2
24
131
12
ATX_PWR1
3
2 1
4

MSI B760 GAMING PLUS WIFI Specifications

General

Form Factor	ATX
Chipset	Intel B760
Socket	LGA 1700
Memory Slots	4
Max Memory	128GB
Memory Type	DDR5
PCIe 5.0 x16 Slot	1
PCIe 4.0 x16 Slot	1
PCIe 3.0 x1 Slot	2
M.2 Slots	2
SATA Ports	4
Networking	2.5G LAN
Audio	Realtek ALC897
RGB Headers	2
