3.8 TV_Out Connector (S & C)

The VGA card provides a 9-pin TV_Out connector (S & C) for video-out func-

tion which allows you to output the image to a TV or video device. This type of

connector can be used for either RCA cable or S_Video cable if the attached

TV-Out 1-to-2 connector is plugged in. Simply plug one end of the RCA cable

or S_Video cable into the proper connector provided by the TV-Out 1-to-2

connector, and the other end to the video input connector on your TV or video

device. Most TVs and video devices support such kind of input connector. For

the correct connection, please refer to the TV’s and video devices' manuals

for more information.

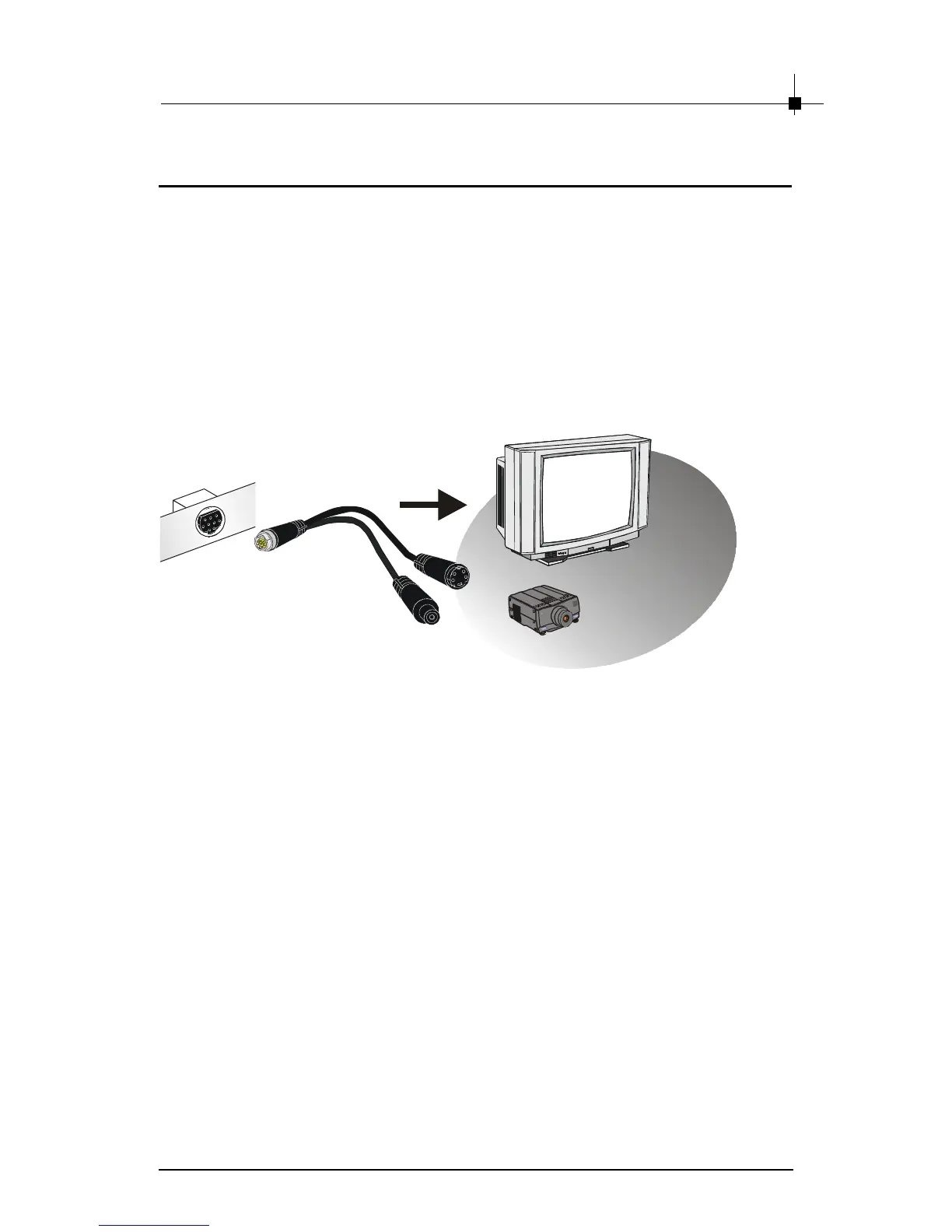

TV-Out 1-to-2

connector

TV_Out

Connector (S & C)

Projector
