Important
 If you install a large and heavy graphics card, you need to use a tool such as MSI
 to support its weight to prevent deformation of
the slot.
 For a single PCIe x16 expansion card installation with optimum performance, using
the  slot is recommended.
 When adding or removing expansion cards, always turn off the power supply and
unplug the power supply power cable from the power outlet. Read the expansion
card’s documentation to check for any necessary additional hardware or software
changes.
 When installing devices in M.2_2, PCI_E2 & PCI_E3 slots at the same time, PCI_E3
slot will be unavailable, and M2_2 slot only supports PCIe x2.


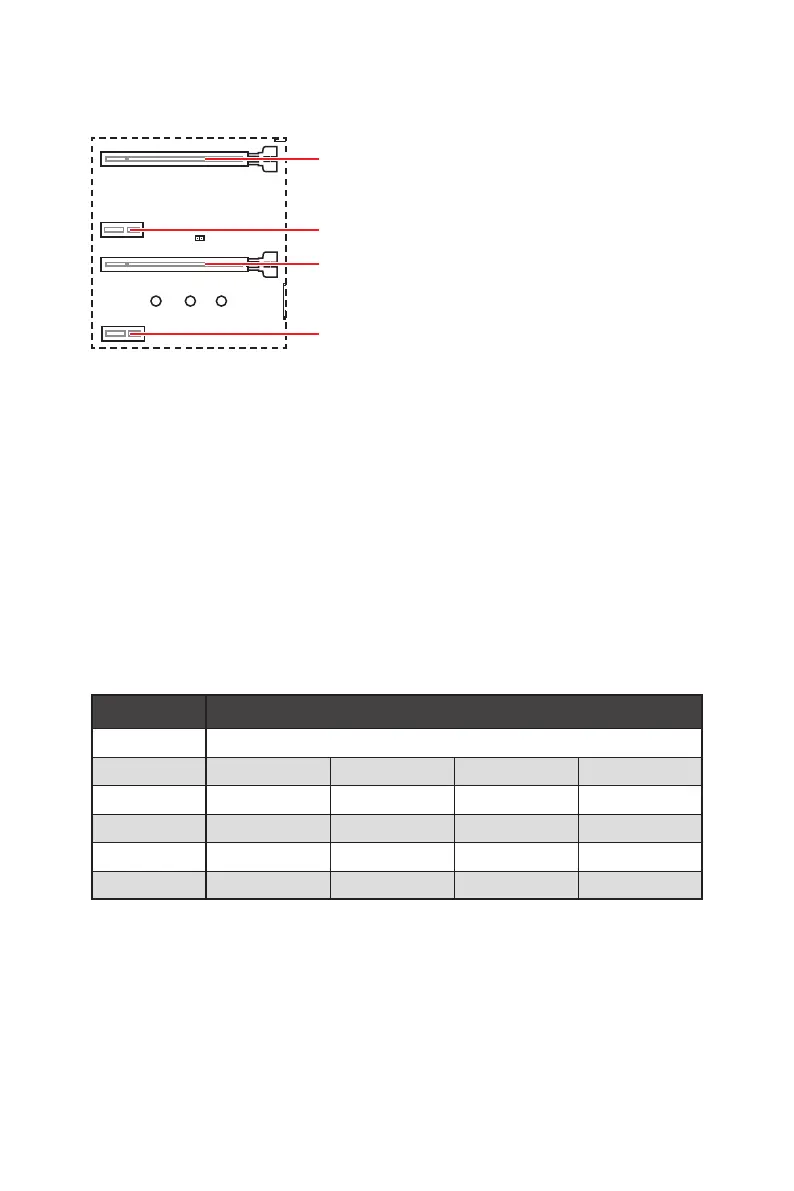

Slot 
M2_1 (CPU) PCIe/SATA
M2_2 (PCH) PCIe x2 PCIe x4 X X
PCI_E1 (CPU) ✓ ✓ ✓ ✓
PCI_E2 (PCH) ✓ X ✓ X
PCI_E3 (PCH) ─ X PCIe x2 PCIe x4
PCI_E4 (PCH) ✓ ✓ ✓ ✓
(SATA: M.2 SATA SSD, PCIe: M.2 PCIe SSD, X: no device, ✓: available, ─: unavailable)
: PCIe 3.0/ 4.0 x16 (CPU)
: PCIe 3.0 x4 (PCH)
: PCIe 3.0 x1 (PCH)
: PCIe 3.0 x1 (PCH)

MSI MAG B550 TOMAHAWK MAX WIFI Specifications

General

Processor socket	Socket AM4
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 3 3rd Gen, AMD Ryzen 5, AMD Ryzen 5 5th Gen, AMD Ryzen 7 3rd Gen, AMD Ryzen 7 5th Gen, AMD Ryzen 9 5th Gen
Audio chip	Realtek ALC897
Component for	PC
Motherboard chipset	AMD B550
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2666, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4200, 4266, 4300, 4400, 4533, 4600, 4800, 4866, 5000, 5100 MHz
Supported memory clock speed (max)	5100 MHz
Number of SATA III connectors	6
USB 3.2 Gen 1 (3.1 Gen 1) connectors	3
USB 3.2 Gen 2 (3.1 Gen 2) connectors	-
Peripheral (Molex) power connectors (4-pin)	1
Number of M.2 (M) slots	2
RAID levels	0, 1, 10
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Digital audio optical out	5
LAN controller	Realtek RTL8125B
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth version	5.2
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
DirectX version	12.0
Parallel processing technology support	Crossfire

Weight and Dimensions

Depth	305 mm
Width	244 mm
