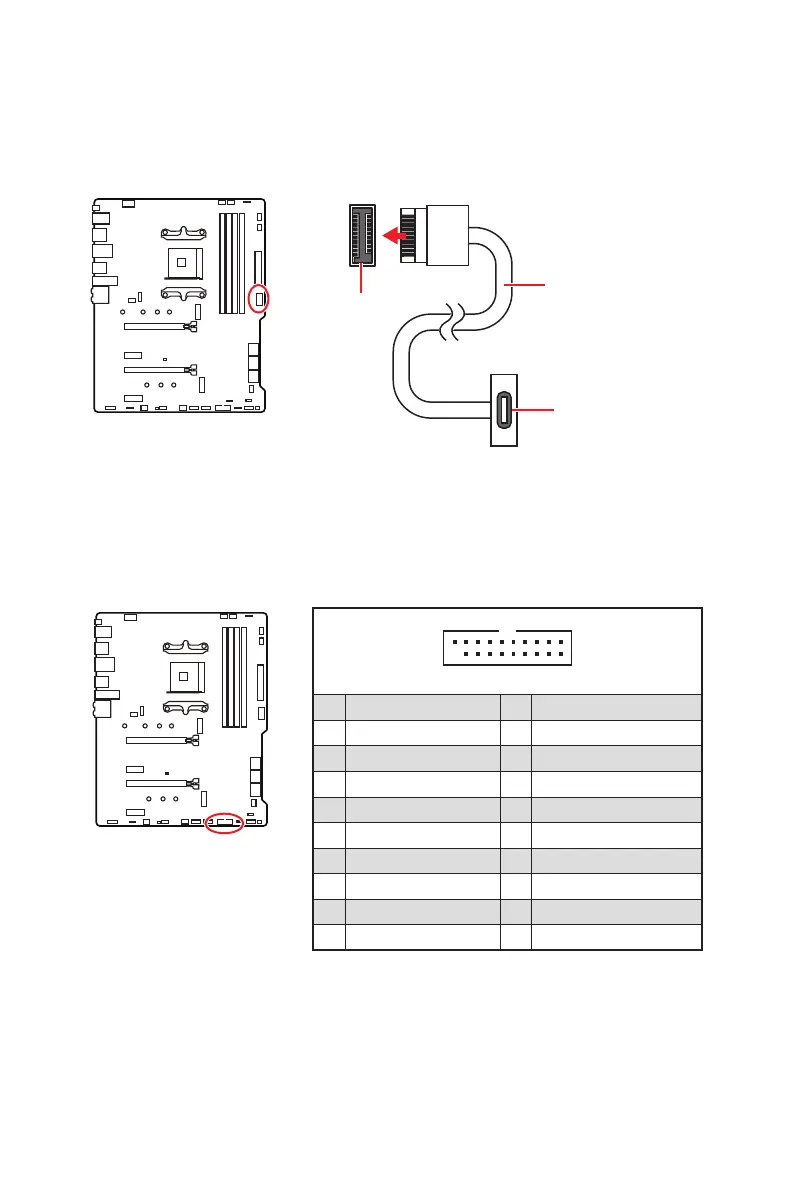

This connector allows you to connect USB 3.2 Gen 1 5Gbps Type-C connector on the

front panel. The connector possesses a foolproof design. When you connect the cable,

be sure to connect it with the corresponding orientation.



This connector allows you to connect USB 3.2 Gen 1 5Gbps ports on the front panel.



Important

Note that the Power and Ground pins must be connected correctly to avoid possible

damage.

1 Power 11 USB2.0+

2 USB3_RX_DN 12 USB2.0-

3 USB3_RX_DP 13 Ground

4 Ground 14 USB3_TX_C_DP

5 USB3_TX_C_DN 15 USB3_TX_C_DN

6 USB3_TX_C_DP 16 Ground

7 Ground 17 USB3_RX_DP

8 USB2.0- 18 USB3_RX_DN

9 USB2.0+ 19 Power

10 Ground 20 No Pin

JUSB4

USB Type-C Cable

USB Type-C port on

the front panel

Questions and Answers:

Need help?

Do you have a question about the MSI MAG B550 TOMAHAWK MAX WIFI and is the answer not in the manual?

MSI MAG B550 TOMAHAWK MAX WIFI Specifications

General

Processor socket	Socket AM4
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 3 3rd Gen, AMD Ryzen 5, AMD Ryzen 5 5th Gen, AMD Ryzen 7 3rd Gen, AMD Ryzen 7 5th Gen, AMD Ryzen 9 5th Gen
Audio chip	Realtek ALC897
Component for	PC
Motherboard chipset	AMD B550
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2666, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4200, 4266, 4300, 4400, 4533, 4600, 4800, 4866, 5000, 5100 MHz
Supported memory clock speed (max)	5100 MHz
Number of SATA III connectors	6
USB 3.2 Gen 1 (3.1 Gen 1) connectors	3
USB 3.2 Gen 2 (3.1 Gen 2) connectors	-
Peripheral (Molex) power connectors (4-pin)	1
Number of M.2 (M) slots	2
RAID levels	0, 1, 10
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Digital audio optical out	5
LAN controller	Realtek RTL8125B
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth version	5.2
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
DirectX version	12.0
Parallel processing technology support	Crossfire
