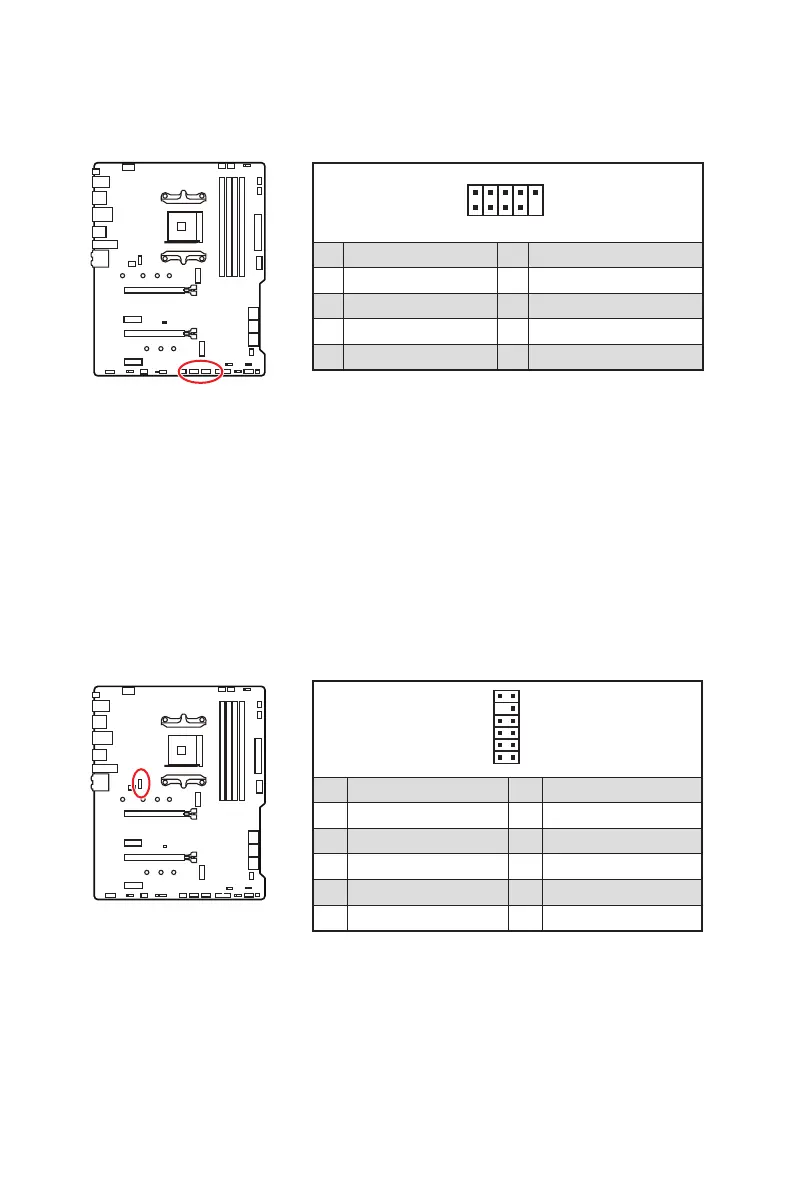

These connectors allow you to connect USB 2.0 ports on the front panel.

2 10

1 VCC 2 VCC

3 USB0- 4 USB1-

5 USB0+ 6 USB1+

7 Ground 8 Ground

9 No Pin 10 NC



Important



Note that the VCC and Ground pins must be connected correctly to avoid possible

damage.



In order to recharge your iPad,iPhone and iPod through USB ports, please install

MSI® DRAGON CENTER utility.

1 SPI Power 2 SPI Chip Select

Master In Slave Out (SPI Data)

Master In Slave In (SPI Data)

5 Reserved 6 SPI Clock

7 Ground 8 SPI Reset

9 Reserved 10 No Pin

11 Reserved 12 Interrupt Request



This connector is for TPM (Trusted Platform Module). Please refer to the TPM security

platform manual for more details and usages.

Questions and Answers:

Need help?

Do you have a question about the MSI MAG B550 TOMAHAWK MAX WIFI and is the answer not in the manual?

MSI MAG B550 TOMAHAWK MAX WIFI Specifications

General

Processor socket	Socket AM4
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 3 3rd Gen, AMD Ryzen 5, AMD Ryzen 5 5th Gen, AMD Ryzen 7 3rd Gen, AMD Ryzen 7 5th Gen, AMD Ryzen 9 5th Gen
Audio chip	Realtek ALC897
Component for	PC
Motherboard chipset	AMD B550
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2666, 2933, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4200, 4266, 4300, 4400, 4533, 4600, 4800, 4866, 5000, 5100 MHz
Supported memory clock speed (max)	5100 MHz
Number of SATA III connectors	6
USB 3.2 Gen 1 (3.1 Gen 1) connectors	3
USB 3.2 Gen 2 (3.1 Gen 2) connectors	-
Peripheral (Molex) power connectors (4-pin)	1
Number of M.2 (M) slots	2
RAID levels	0, 1, 10
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Digital audio optical out	5
LAN controller	Realtek RTL8125B
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth version	5.2
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
DirectX version	12.0
Parallel processing technology support	Crossfire
