MSI MAG B650 TOMAHAWK WIFI User Manual

35

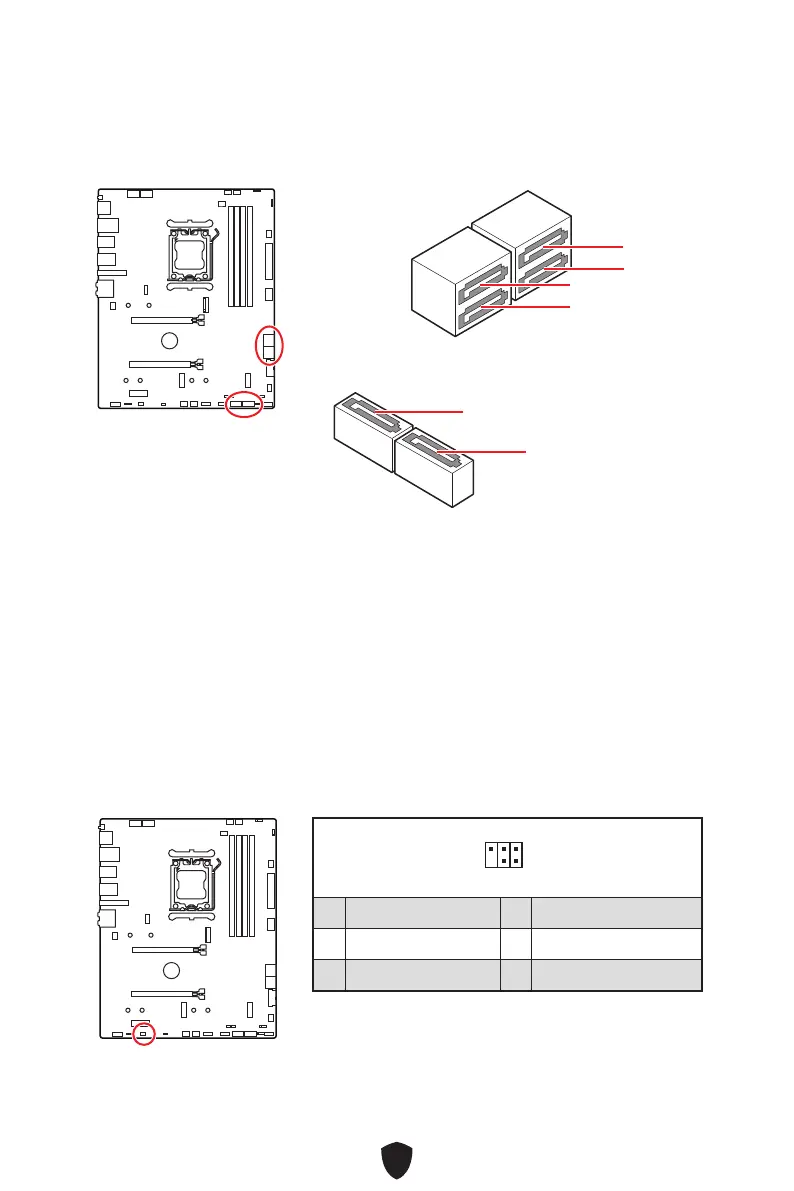

JDASH1 : Tuning Controller connector
This connector is used to connect an optional Tuning Controller module.
1
2 6
5
1 No Pin 2 NC
3 MCU_SMB_SCL_M 4 MCU_SMB_SDA_M
5 VCC5 6 Ground
SATA_1~4,A1~A2: SATA 6Gb/s Connectors
These connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device.
SATA_1
SATA_3
SATA_2
SATA_4
SATA_A2
SATA_A1

Important
 Please do not fold the SATA cable at a 90-degree angle. Data loss may result during
transmission otherwise.
 SATA cables have identical plugs on either sides of the cable. However, it is
recommended that the flat connector be connected to the motherboard for space
saving purposes.

MSI MAG B650 TOMAHAWK WIFI Specifications

General

Processor socket	Socket AM5
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
ECC	No
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600 MHz
RAID levels	0, 1, 10
RAID support	Yes
Supported storage drive interfaces	M.2, SATA
Parallel processing technology support	-
Number of SATA III connectors	6
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
LAN controller	Realtek RTL8125B
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Bluetooth version	5.2
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
Audio chip	Realtek ALC4080
Component for	PC
Product color	Black
Motherboard chipset	AMD B650
PC health monitoring	Fan
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 11 x64

Weight and Dimensions

Depth	243.84 mm
Width	304.8 mm
