Important
 The JRGB connector supports up to 2 meters continuous 5050 RGB LED strips
(12V/G/R/B) with the maximum power rating of 3A (12V).
 Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing the RGB LED strip.
 Please use MSI’s software to control the extended LED strip.

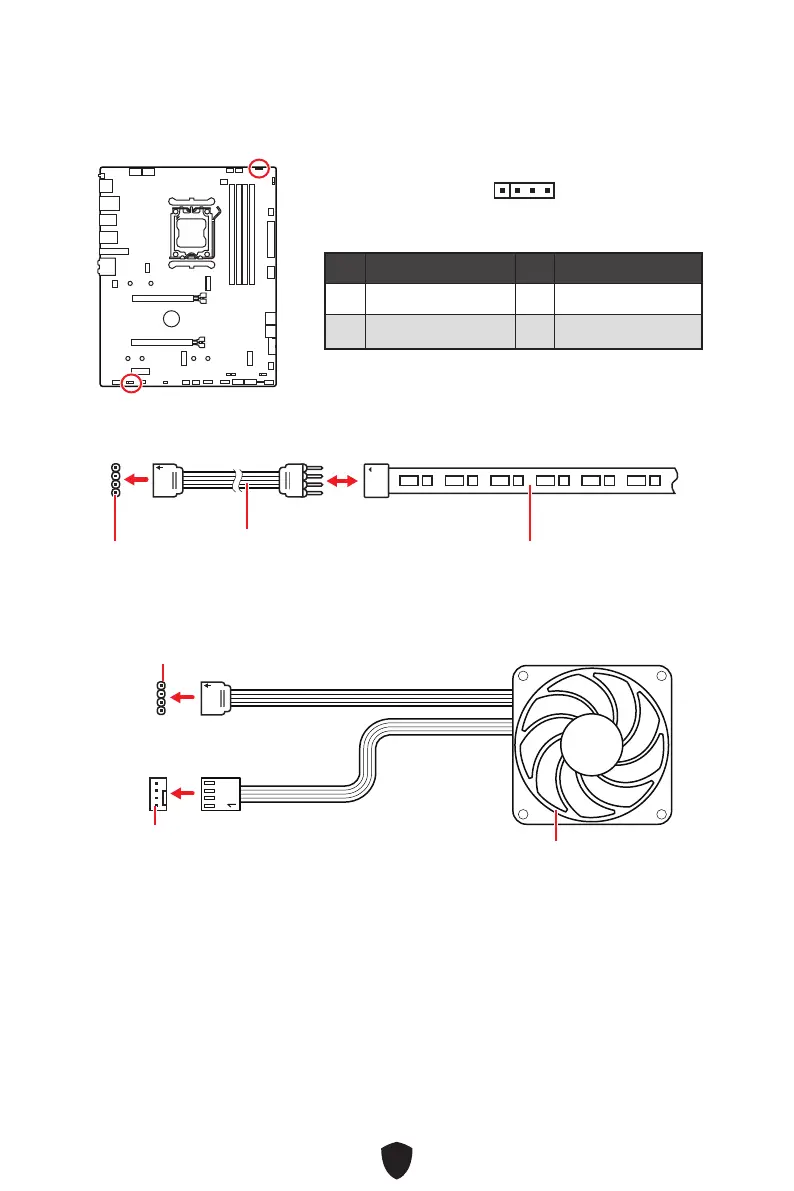

JRGB1~2: RGB LED connectors
The JRGB connector allows you to connect the 5050 RGB LED strips 12V.
1
G
R
B
JRGB connector
JRGB extension cable
5050 RGB LED strips 12V
RGB LED Strip Connection
1
1
G
R
B
JRGB connector
System fan connector
RGB LED Fan Connection
RGB LED fan
Pin Signal Name Pin Signal Name
1 +12V 2 G
3 R 4 B
1

MSI MAG B650 TOMAHAWK WIFI Specifications

General

Processor socket	Socket AM5
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
ECC	No
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600 MHz
RAID levels	0, 1, 10
RAID support	Yes
Supported storage drive interfaces	M.2, SATA
Parallel processing technology support	-
Number of SATA III connectors	6
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
LAN controller	Realtek RTL8125B
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Bluetooth version	5.2
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
Audio chip	Realtek ALC4080
Component for	PC
Product color	Black
Motherboard chipset	AMD B650
PC health monitoring	Fan
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 11 x64

Weight and Dimensions

Depth	243.84 mm
Width	304.8 mm
