Компоненты материнской платы

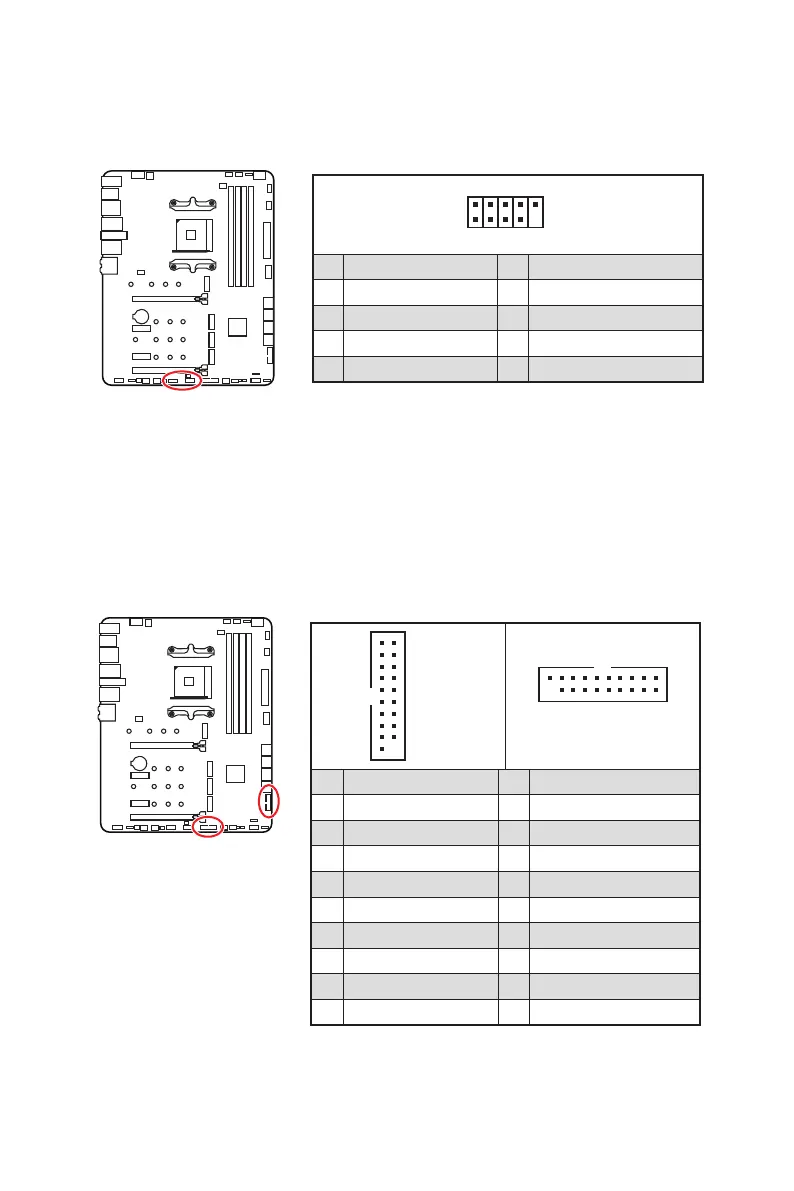

JUSB2~3: Разъемы USB 3.2 Gen 1 5Гб/с





⚠

Внимание!





10 11

JUSB2

1 10

1120

JUSB3

1 Power 11 USB2.0+

2 USB3_RX_DN 12 USB2.0-

3 USB3_RX_DP 13 Ground

4 Ground 14 USB3_TX_C_DP

5 USB3_TX_C_DN 15 USB3_TX_C_DN

6 USB3_TX_C_DP 16 Ground

7 Ground 17 USB3_RX_DP

8 USB2.0- 18 USB3_RX_DN

9 USB2.0+ 19 Power

10 NC 20 No Pin

JUSB4~5: Разъемы USB 2.0





2 10

1 VCC 2 VCC

3 USB0- 4 USB1-

5 USB0+ 6 USB1+

7 Ground 8 Ground

9 No Pin 10 NC

⚠

Внимание!

∙



∙




