MSI MPG X570S CARBON MAX WIFI Quick Start

19
Overview of Components
CPU Socket

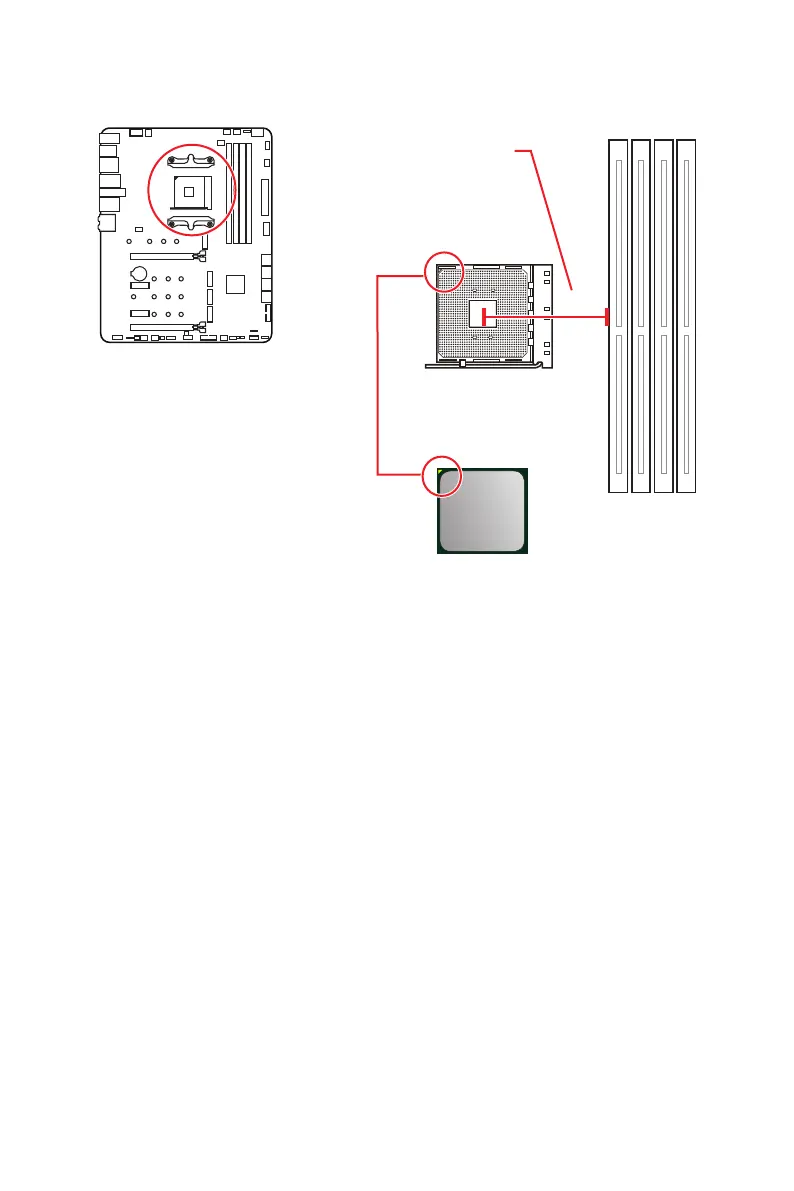

Introduction to the AM4 CPU
The surface of the AM4 CPU has a
yellow triangle to assist in correctly
lining up the CPU for motherboard
placement. The yellow triangle is
the Pin 1 indicator.
53.73 mm
Distance from the center of the
CPU to the nearest DIMM slot.
⚠
Important
∙ When changing the processor, the system configuration could be cleared and reset
BIOS to default values, due to the AM4 processor’s architecture.
∙ Always unplug the power cord from the power outlet before installing or removing
the CPU.
∙ When installing a CPU, always remember to install a CPU heatsink. A CPU heatsink
is necessary to prevent overheating and maintain system stability.
∙ Confirm that the CPU heatsink has formed a tight seal with the CPU before booting
your system.
∙ Overheating can seriously damage the CPU and motherboard. Always make sure
the cooling fans work properly to protect the CPU from overheating. Be sure to apply
an even layer of thermal paste (or thermal tape) between the CPU and the heatsink to
enhance heat dissipation.
∙ If you purchased a separate CPU and heatsink/ cooler, Please refer to the
documentation in the heatsink/ cooler package for more details about installation.
∙ This motherboard is designed to support overclocking. Before attempting to
overclock, please make sure that all other system components can tolerate
overclocking. Any attempt to operate beyond product specifications is not
recommended. MSI
®
does not guarantee the damages or risks caused by inadequate
operation beyond product specifications.

MSI MPG X570S CARBON MAX WIFI Specifications

General

Ethernet LAN	Yes
LAN controller	Realtek RTL8125B
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth version	5.2
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX210
Ethernet interface type	2.5 Gigabit Ethernet
DVI-D ports quantity	0
USB 2.0 ports quantity	2
Digital audio optical out	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
Cables included	SATA
Number of SATA III connectors	8
BIOS type	UEFI AMI
Parallel processing technology support	Crossfire
RAID levels	0, 1, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Memory channels	Dual-channel
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3600, 4000, 4266, 4400, 5100, 5300 MHz
Audio chip	Realtek ALC4080
Component for	PC
Motherboard chipset	AMD X570
Audio output channels	7.1 channels
Motherboard form factor	ATX
Number of mounting holes	9
Motherboard chipset family	AMD
Windows operating systems supported	Windows 10 x64
Processor socket	Socket AM4
Compatible processor series	AMD Ryzen 3, AMD Ryzen 5, AMD Ryzen 7, AMD Ryzen 9 3rd Gen, AMD Ryzen 9 5th Gen
Harmonized System (HS) code	84733020
Weight	1000 g

Weight and Dimensions

Depth	244 mm
Width	305 mm
Height	268 mm
