MSI MPG Z790 CARBON WIFI User Manual

44











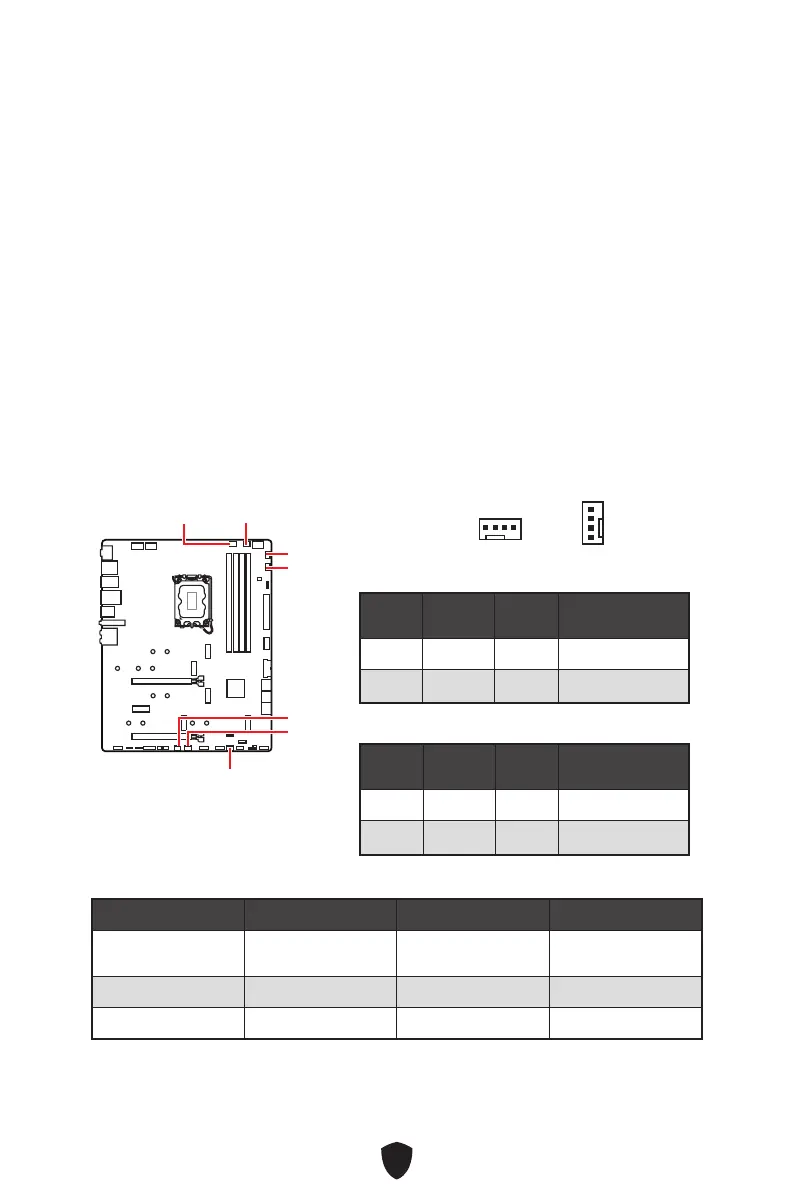

BIOS > HARDWARE MONITOR
Smart
Fan Mode





CPU_FAN1
SYS_FAN2
SYS_FAN1
SYS_FAN3
PUMP_FAN1
SYS_FAN5
SYS_FAN4




 
1 Ground 2 +12V
3 Sense 4 Speed Control Signal




 
1 Ground 2 Voltage Control
3 Sense 4 NC

   
CPU_FAN1 

2A 
PUMP_FAN1   
SYS_FAN1~5   
1
1

MSI MPG Z790 CARBON WIFI Specifications

General

Processor socket	LGA 1700
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium Gold
Non-ECC	Yes
Memory channels	Dual-channel
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	4800, 5000, 5200, 5400, 5600, 5800, 6400, 6600, 6800, 7000, 7200, 7400, 7600 MHz
Supported memory clock speed (max)	7600 MHz
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Number of storage drives supported	10
Supported storage drive interfaces	M.2, PCI Express
Parallel processing technology support	Not supported
Number of SATA II connectors	0
Number of SATA III connectors	6
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth version	5.3
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
Component for	PC
Product color	Black
Motherboard chipset	Intel Z790
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Cables included	SATA
Number of M.2 (M) slots	5

Weight and Dimensions

Depth	243.84 mm
Width	304.8 mm
