CAUTION
Do not connect the wrong type of LED strips. The JRGB connector and the JARGB_V2
connector provide different voltages, and connecting the ARGB 5V LED strip to the
JRGB connector will result in damage to the LED strip.

Important
 If you connect the ARGB Gen1 and ARGB Gen2 LED strips into the same connector, it
may cause some issues. Please do not mix the ARGB Gen1 LED and the ARGB Gen2
LED strips together.
 It is recommended that you install LED strips with the same specification to achieve
the best effects.
 Always turn off the power supply and unplug the power cord from the power outlet
before installing or removing the addressable RGB LED strip.
 Please use MSI’s software to control the extended LED strip.
Normal
(default)
Boot with the saved
BIOS settings.
Enabled
Apply the BIOS default
settings and lower PCIe
(from CPU) mode for
Safe Boot

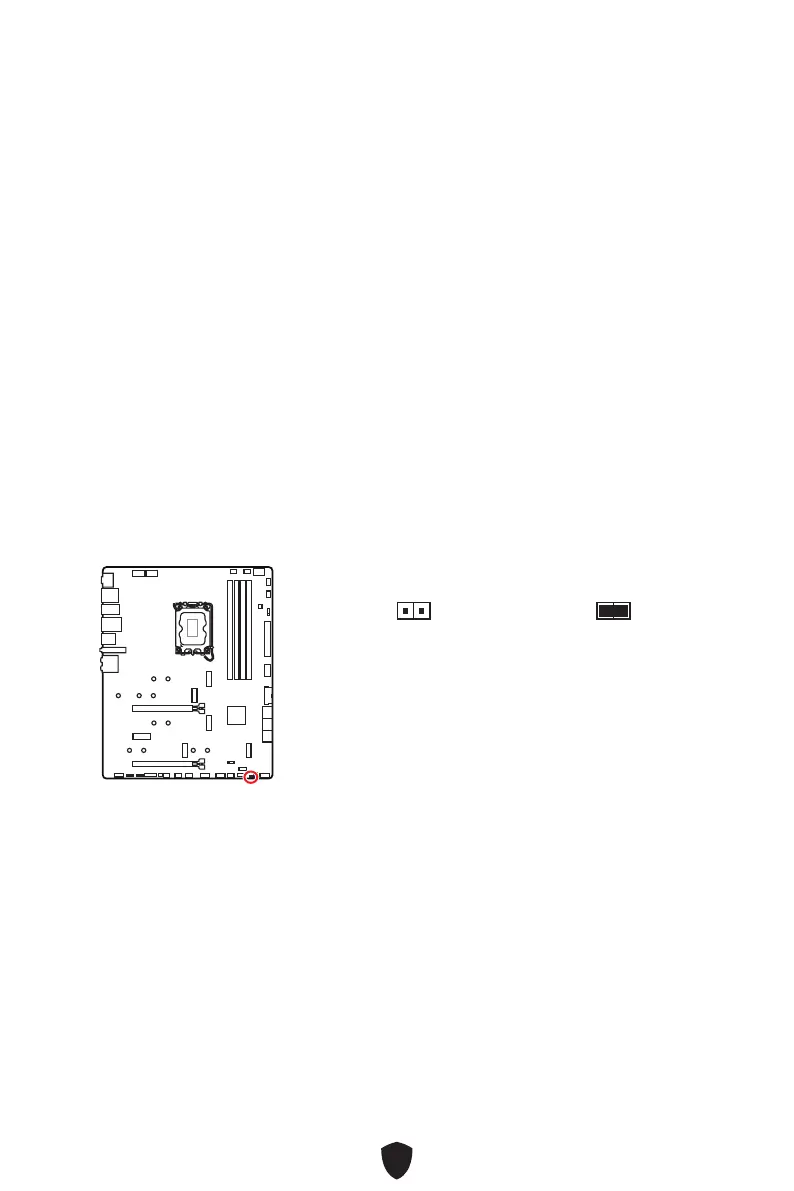

JOCFS1: Safe Boot Jumper
This jumper is used for Safe Boot. Once enabled, the system will boot with default
settings and lower PCIe (from CPU) mode.

MSI MPG Z790 CARBON WIFI Specifications

General

Processor socket	LGA 1700
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium Gold
Non-ECC	Yes
Memory channels	Dual-channel
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	4800, 5000, 5200, 5400, 5600, 5800, 6400, 6600, 6800, 7000, 7200, 7400, 7600 MHz
Supported memory clock speed (max)	7600 MHz
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Number of storage drives supported	10
Supported storage drive interfaces	M.2, PCI Express
Parallel processing technology support	Not supported
Number of SATA II connectors	0
Number of SATA III connectors	6
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Bluetooth version	5.3
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
Component for	PC
Product color	Black
Motherboard chipset	Intel Z790
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Cables included	SATA
Number of M.2 (M) slots	5

Weight and Dimensions

Depth	243.84 mm
Width	304.8 mm
