Getting Started
Left-wing: Current system status
In the left sub-menu, you can configure the settings of FSB, Vcore, Memory
Voltage and AGP Voltage by clicking the radio button in front of each item and make it
available (the radio button will be lighted as yellow when selected), use the “+” and
“-” buttons to adjust, then click “OK” to apply the changes. Then you can click Save
to save the desired FSB you just configured.
Also you may click Auto to start testing the maximal CPU overclocking value,
The CPU FSB will automatically increase the testing value until the PC reboots. Or you
may click Default to restore the default values.
Right-wing: PC hardware status during real time operation
In the right sub-menu, you can configure the PC hardware status such as CPU
& system temperatures and fan speeds. You may use the scroll bars to adjust each
item, then click “OK” to apply the changes. The values you set for the temperatures
are the maximum thresholds for the system for warnings, and the value for fan
speeds are the minimum thresholds.
Top-side: User mode/Auto mode
Here you may adjust the CPU fan speed. If you choose User mode, you may
adjust the CPU fan speed in 8 different modes, from Low speed to High speed.

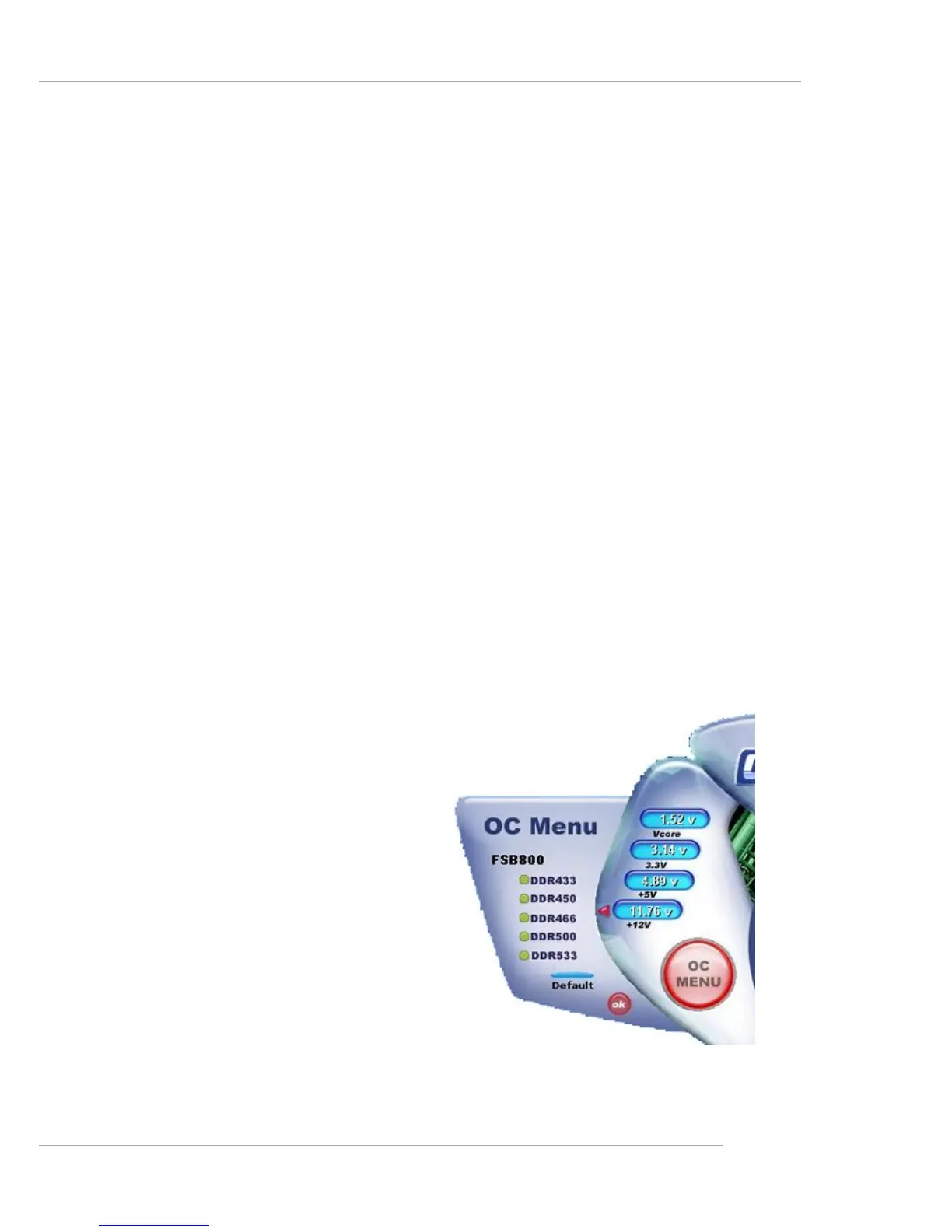

OC Menu
The exclusive OC Menu is fully developed to support DDR400+ memory modules.
By comprehensive validation of over 67 DDR400+ memory modules, MSI concluded
best parameters for DRAM voltage, Vio and other BIOS settings. You can select
DDR433, DDR450, DDR466 and DDR500 from DRAM frequency in BIOS setting. Or
you can just click on OC Menu button to configure in the OC Menu at CoreCenter. OC
Menu will adjust the necessary pa-
rameters of voltage and frequency
simultaneously. The only limitation was
the margin of processor from
overclocking.
