3-23
BIOS Setup

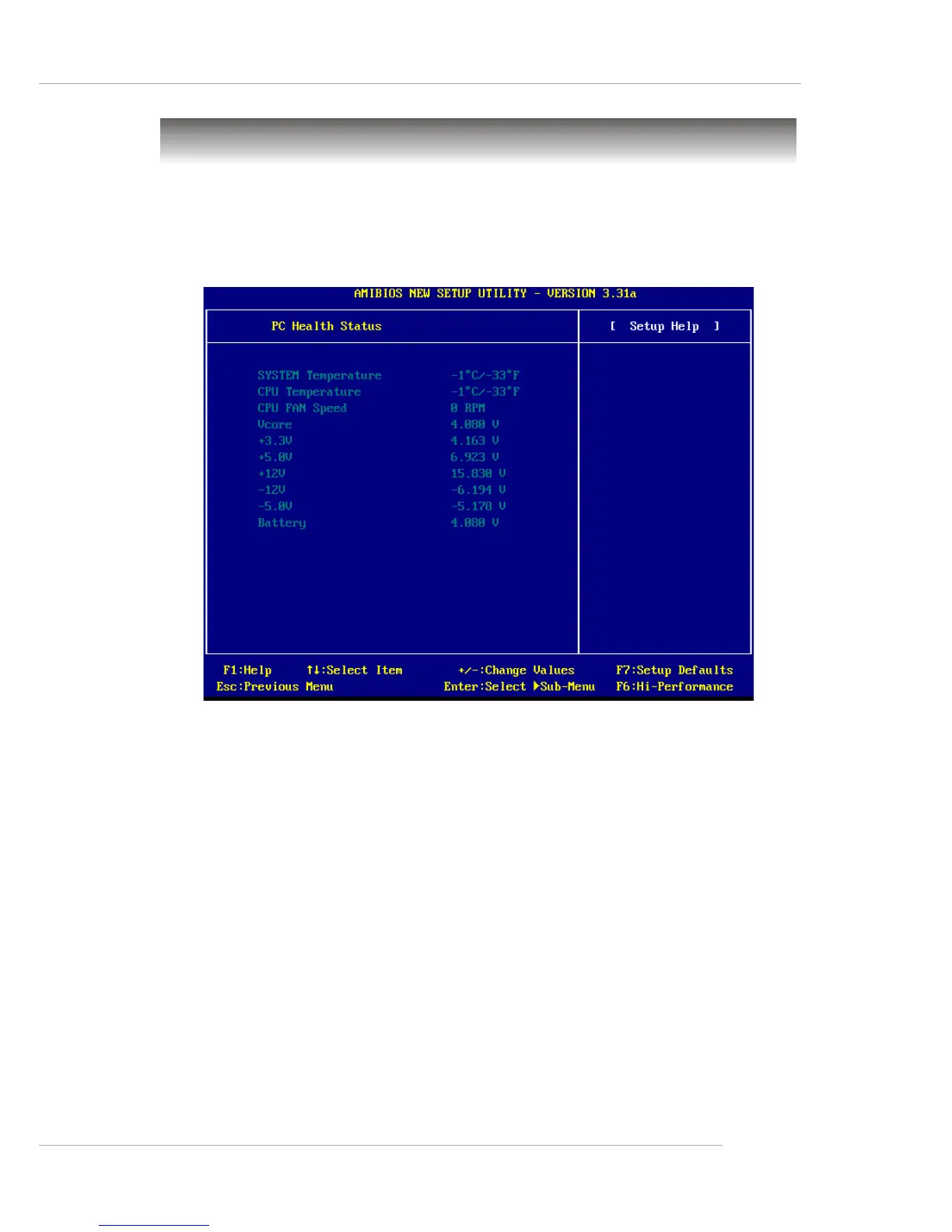

PC Health Status
This setup screen shows the status of your CPU, fan, overall system status,..
etc. Monitor function is available only if there is hardware monitoring mechanism
onboard.
System/CPU T
emperature, CPU Fan Speed, Vcore, +3.3V
, +5.0V
, +12V
, -12V
,
-5.0V, Battery
These items display the current status of all of the monitored hardware devices/
components such as CPU voltages, temperatures and all fans’ speeds.
62
64
Table of Contents
Default Chapter
2
FCC-A Radio Frequency Interference Statement
2
Copyright Notice
3
Revision History
3
Technical Support
3
Trademarks
3
Safety Instructions
4
Table of Contents
5
Chapter 1. Getting Started
8
Mainboard Specifications
9
Getting Started
10
Mainboard Layout
11
MSI Special Features
12
Color Management
12
Corecenter
13
Core Celltm Chip
15
Round Cable (Optional)
16
CPU Thermal Protection
16
Live Bios™/Live Driver
17
Live Monitor
18
D-Bracket™ 2 (Optional)
19
S-Bracket (Optional)
21
Chapter 2. Hardware Setup
22
Quick Components Guide
23
Central Processing Unit: CPU
24
CPU Core Speed Derivation Procedure
24
Memory Speed/Cpu FSB Support Matrix
24
CPU Installation Procedures for Socket 478
25
Installing the CPU Fan
26
Memory
28
Memory Population Rules
28
Installing DDR Modules
29
Power Supply
30
ATX 20-Pin Power Connector: ATX1
30
ATX 12V Power Connector: JPW1
30
Back Panel
31
Floppy Disk Drive Connector: FDD1
32
ATA133 Hard Disk Connectors: IDE1 & IDE2
32
Connectors
32
Serial ATA RAID 0, 1 Connectors: SATA1, SATA2
33
Fan Power Connector: CPUFA1
34
Front Panel Audio Connector: JAUD1
34
Chassis Intrusion Switch Connector: JCI1 (Optional)
35
Front Panel Connectors: JFP1 & JFP2
35
CD-In Connector: JCD1
36
D-Bracket™ 2 Connector: JDB1 (Optional)
36
S-Bracket (SPDIF) Connector: JSP1 (Optional)
37
Front USB Connectors: JUSB1 & JUSB2 (Optional)
38
Jumpers
39
Clear CMOS Jumper: JBAT1
39
Slots
40
PCI Interrupt Request Routing
40
AGP (Accelerated Graphics Port) Slot
40
PCI (Peripheral Component Interconnect) Slots
40
Chapter 3. BIOS Setup
41
Entering Setup
42
Selecting the First Boot Device
42
Getting Help
43
Control Keys
43
The Main Menu
44
Standard CMOS Features
46
Advanced BIOS Features
48
Advanced Chipset Features
51
Power Management Setup
55
PNP/PCI Configurations
58
Integrated Peripherals
60
PC Health Status
63
Frequency/Voltage Control
64
Set Supervisor/User Password
67
Load Optimal/High Performance Defaults
68
Appendix A: Using 2-, 4- & 6-Channel Audio Function
69
Installing the Audio Driver
70
Installation for Windows 98SE/ME/2000/XP
70
Special Notice During Installation
70
Software Configuration
72
Playback
72
Recording
72
SPDIF & Speaker Configuration
73
Speaker Test
73
Using 2-, 4- & 6- Channel Audio Function
73
Information
74
Appendix B: VIA VT8237 Serial ATA RAID
78
Introduction
79
BIOS Configuration
81
Create Disk Array
82
Delete Disk Array
85
Create and Delete Spare Hard Drive
86
Duplicate Critical Raid 1 Array
88
Rebuild Broken Raid 1 Array
89
Installing RAID Software & Drivers
91
Using VIA RAID Tool
94
