A-7
Using 2-, 4-, & 6-Channel Audio Function
Using 2-, 4- & 6- Channel Audio Function
Connecting the Speakers
When you have set the Multi-Channel Audio Function mode properly in the
software utility, connect your speakers to the correct phone jacks in accord-
ance with the setting in software utility.
2-Channel Mode for Stereo-Speaker Output

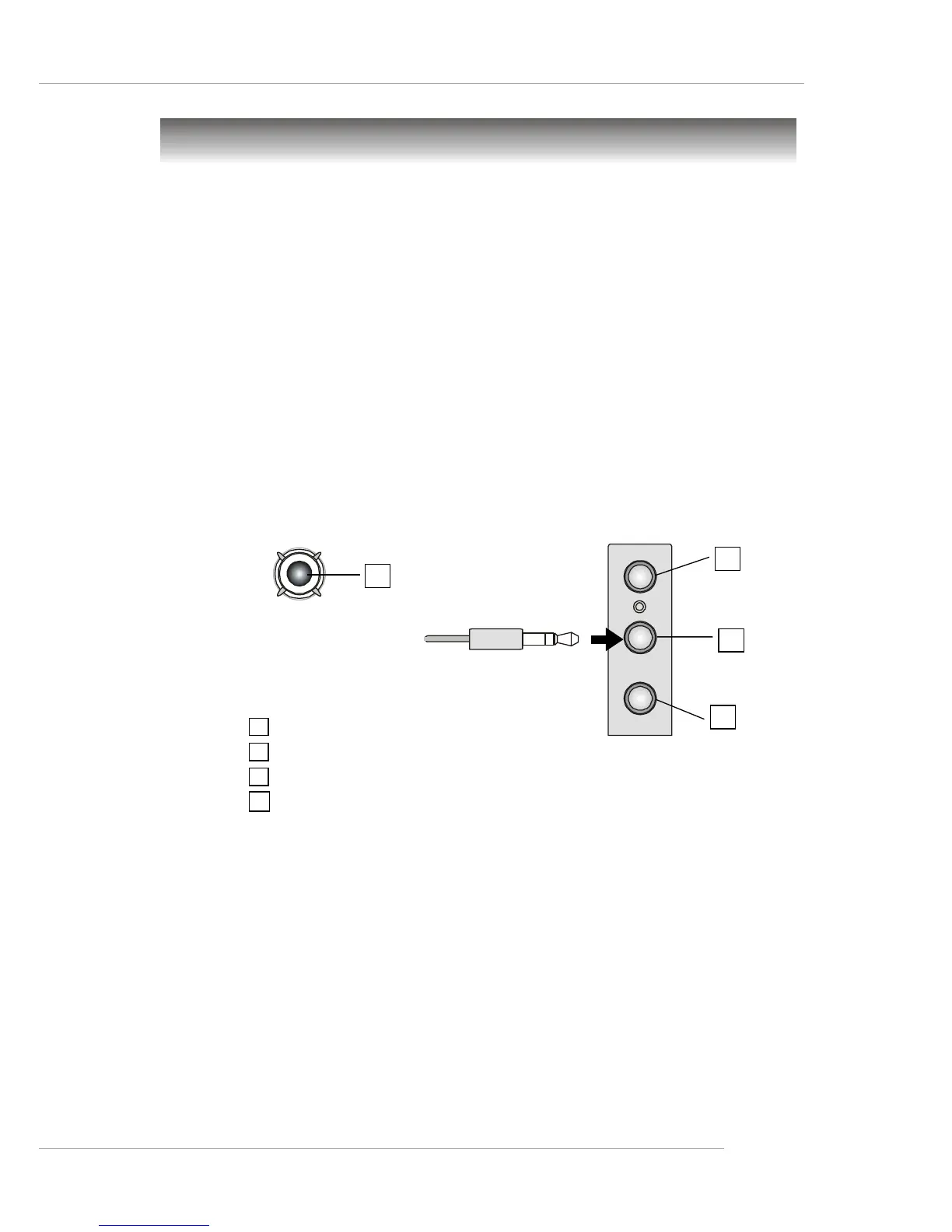

Refer to the following diagram and caption for the function of each phone
jack on the back panel when 2-Channel Mode is selected.
Back Panel
3
1
2
4
1 Line In
2 Line Out (Front channels)
3 MIC
4 SPDIF Coaxial jack
To Next Page
