2-14
MS-7222 Micro-ATX Mainboard

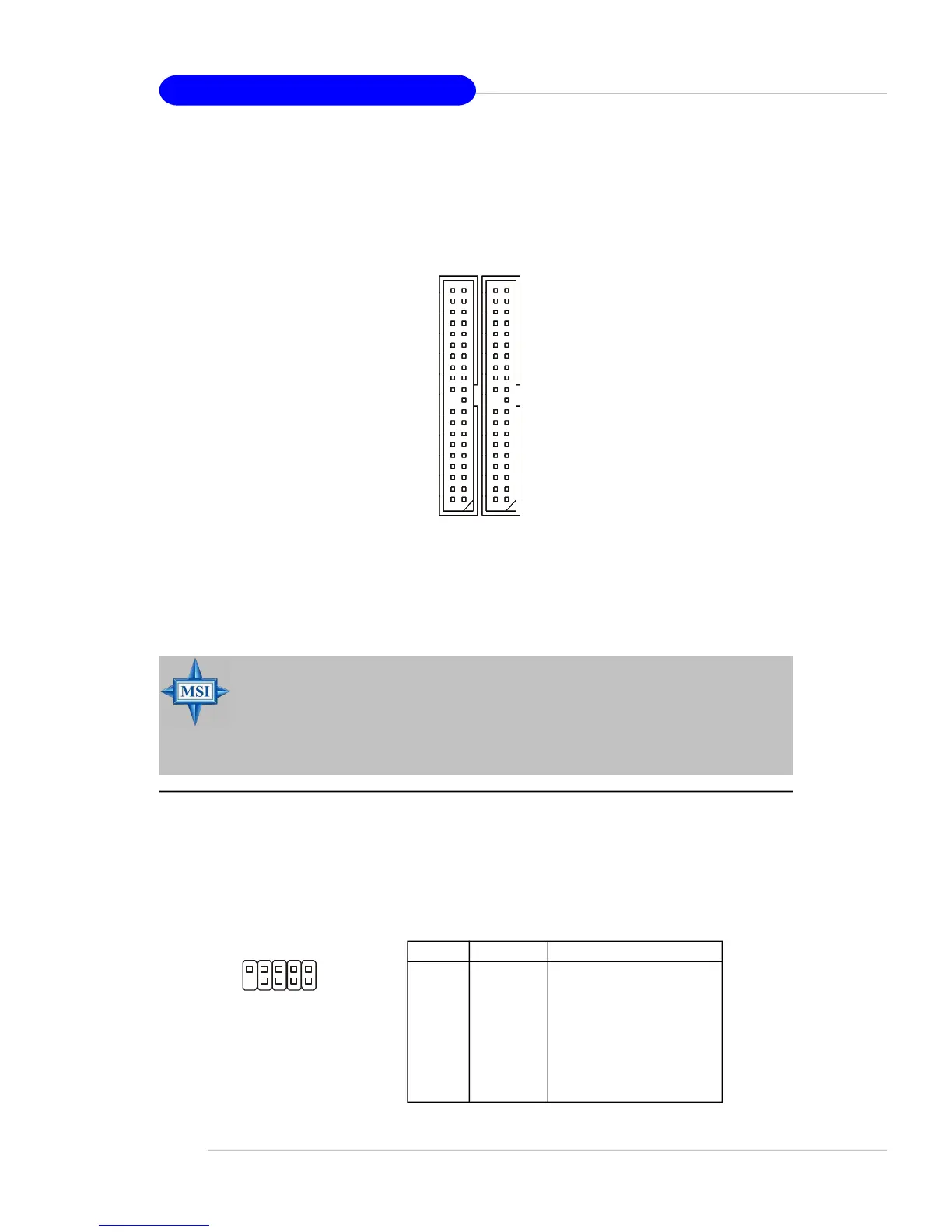

Hard Disk Connectors: IDE1, IDE2
The mainboard has one 32-bit Ultra DMA 66/100 IDE controller integrated in
ICH6, which supports PIO & Bus Master operation modes and it can connect up to
two Ultra ATA drives.
IDE1 (Primary IDE Connector)
IDE1 can connect a Master and a Slave drive. You must configure second hard drive
to Slave mode by setting the jumper accordingly.
IDE2 (Secondary IDE Connector)
IDE2 can also connect a Master and a Slave drive.
MSI Reminds You...
If you install two hard disks on cable, you must configure the second
drive to Slave mode by setting its jumper. Refer to the hard disk
documentation supplied by hard disk vendors for jumper setting
instructions.
IDE2
Serial Port Header: COM2
The mainboard offers one 9-pin header as serial port. The port is a 16550A high
speed communication port that sends/receives 16 bytes FIFOs. You can attach a
serial mouse or other serial device directly to it.
Pin Definition
PIN SIGNAL DESCRIPTION
1 DCD Data Carry Detect
2 SIN Serial In or Receive Data
3 SOUT Serial Out or Transmit Data
4 DTR Data Terminal Ready)
5 GND Ground
6 DSR Data Set Ready
7 RTS Request To Send
8 CTS Clear To Send
9 RI Ring Indicate
COM2
15
6
9
IDE1
