2-13
Hardware Setup

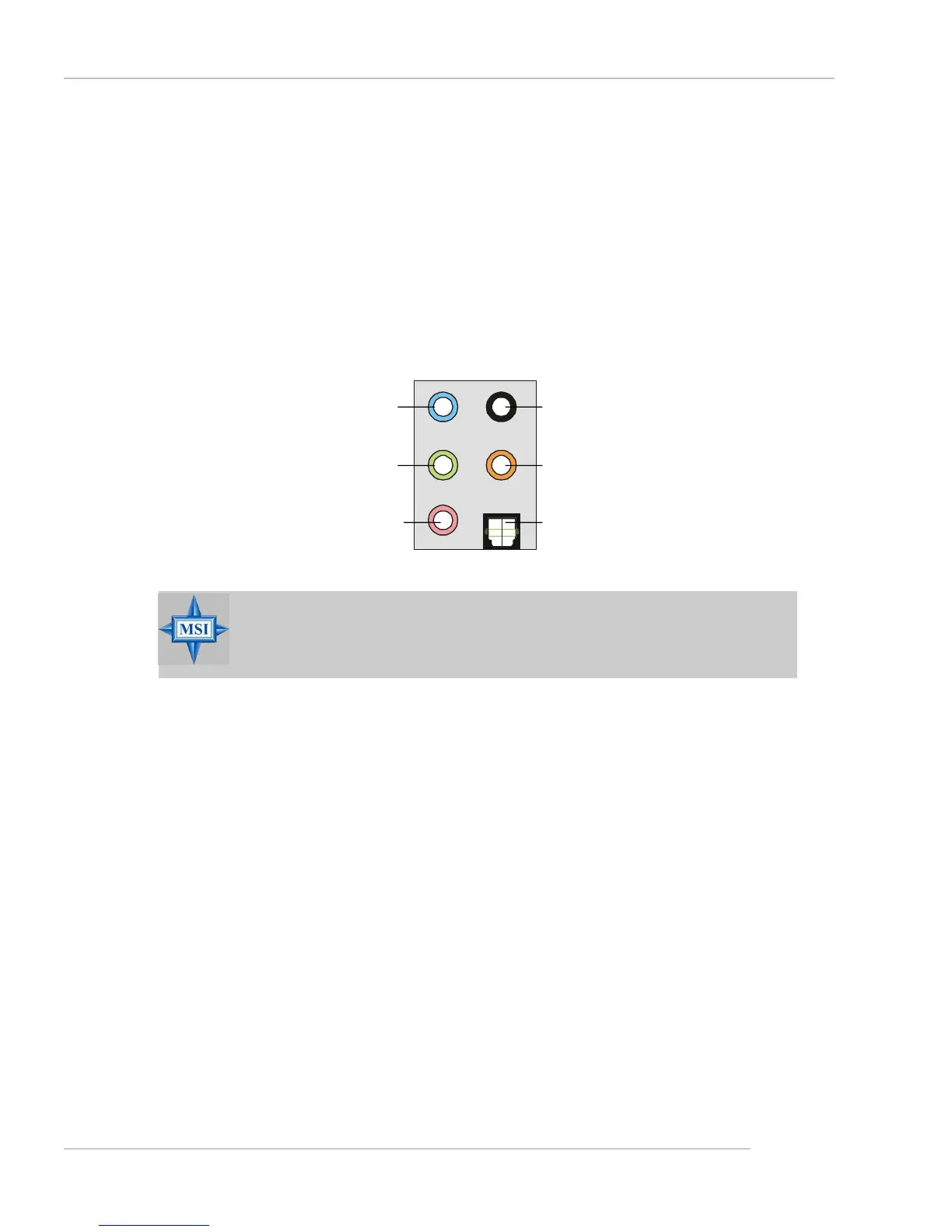

Audio Port Connectors
The left 3 audio jacks are for 2-channel mode for stereo speaker output: Line
Out is a connector for Speakers or Headphones. Line In is used for external CD
player, Tape player, or other audio devices. Mic is a connector for microphones.
However, there is an advanced audio application provided by Realtek ALC850
to offer support for 7.1-channel audio operation and can turn rear audio connectors
from 2-channel to 4-/5.1-/7.1- channel audio.
MSI Reminds You...
For the advanced functions of the audio codec, please refer to Appen-
dix A for details.
Rear Speaker Out
(in 7.1CH / 5.1CH)
Line Out
(Front R/L)
Line In / Line Out
(Surround R/L)
(in 7.1 CH)
MIC
Center/Subwoofer
Speaker Out
( in 7.1CH / 5.1CH)
SPDIF-Out
