13
Overview of Components

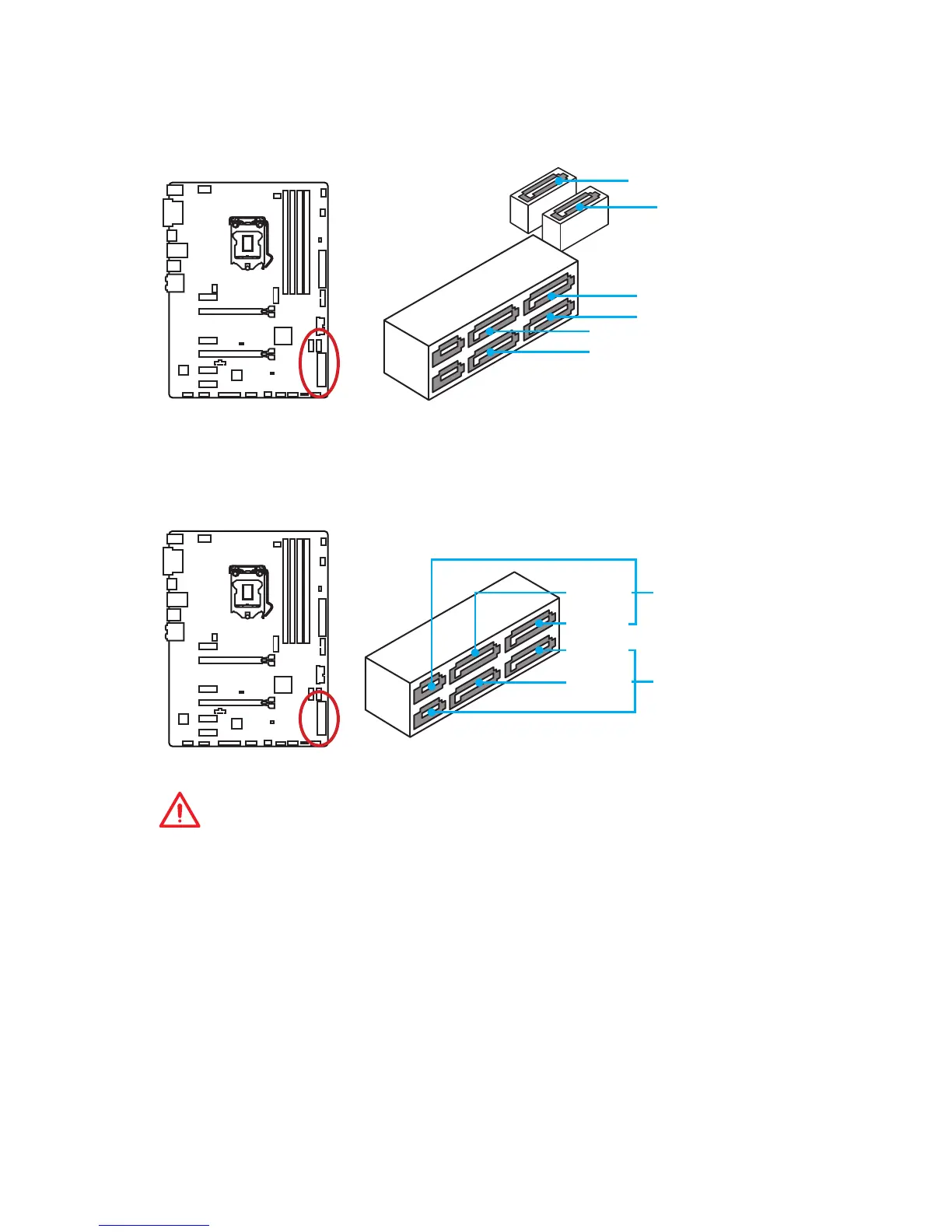

SATA1~6: SATA 6Gb/s Connectors
These connectors are SATA 6Gb/s interface ports. Each connector can connect to
one SATA device.
SATA5
SATA1
SATA2
SATA6
SATA3
SATA4
SE1_21-SE2_65: SATAe Connectors
These connectors are SATAe (SATA Express) interface ports. Each SATAe connector
can be used with a single SATAe device or two legacy SATA devices.
SATA1
SATA5
SATA2
SATA6
SE1_21
(SATA_EX1)
SE2_65
(SATA_EX2)
Important
●
Please do not fold the SATA or SATAe cable at a 90-degree angle. Data loss may
result during transmission otherwise.
●
SATA cable has identical plugs on either sides of the cable. However, it is
recommended that the flat connector be connected to the motherboard for space
saving purposes.
