Vue d’ensemble des composants

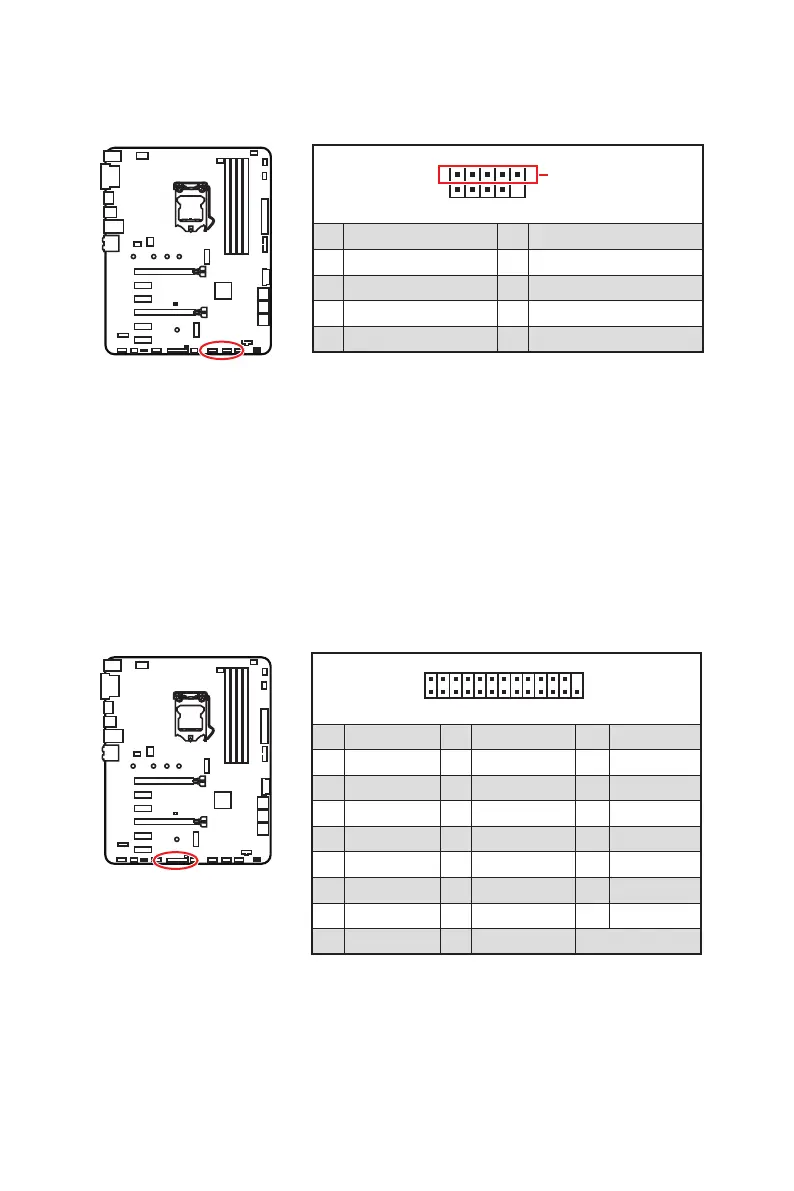

JUSB1~2 : Connecteurs USB 2.0

Ces connecteurs vous permettent de relier un port USB 2.0 sur le panneau avant.

⚠

Important

∙

Notez que les broches VCC et Terre doivent être branchées correctement afin

d’éviter tout dommage sur la carte mère.

∙

Pour recharger votre iPad, iPhone et iPod par l’intermédiaire d’un port USB, veuillez

installer l’utilitaire MSI Dragon Center.

∙

CNVI_1 et JUSB2 partagent la même bande passante. Et un port USB se connectant

à JUSB2 est indispobible quand le slot CNVI_1 a été installé.

2 10

Note

1 VCC 2 VCC

3  4 

5 USB0+ 6 USB1+

7 Ground 8 Ground

9 No Pin 10 NC

Remarque : Pour JUSB2, l’ensemble des broches sont indisponible



CNVI_1.

2 26

1 RSTB# 2 AFD# 3 PRND0

4 ERR# 5 PRND1 6 PINIT#

7 PRND2 8 LPT_SLIN# 9 PRND3

10 Ground 11 PRND4 12 Ground

13 PRND5 14 Ground 15 PRND6

16 Ground 17 PRND7 18 Ground

19 ACK# 20 Ground 21 BUSY

22 Ground 23 PE 24 Ground

25 SLCT 26 No Pin

JLPT1 : Connecteur de port parallèle

Ce connecteur sert à connecter un support de port parallèle optionnel.
