MSI Z390-A PRO Manual

20
Übersicht der Komponenten

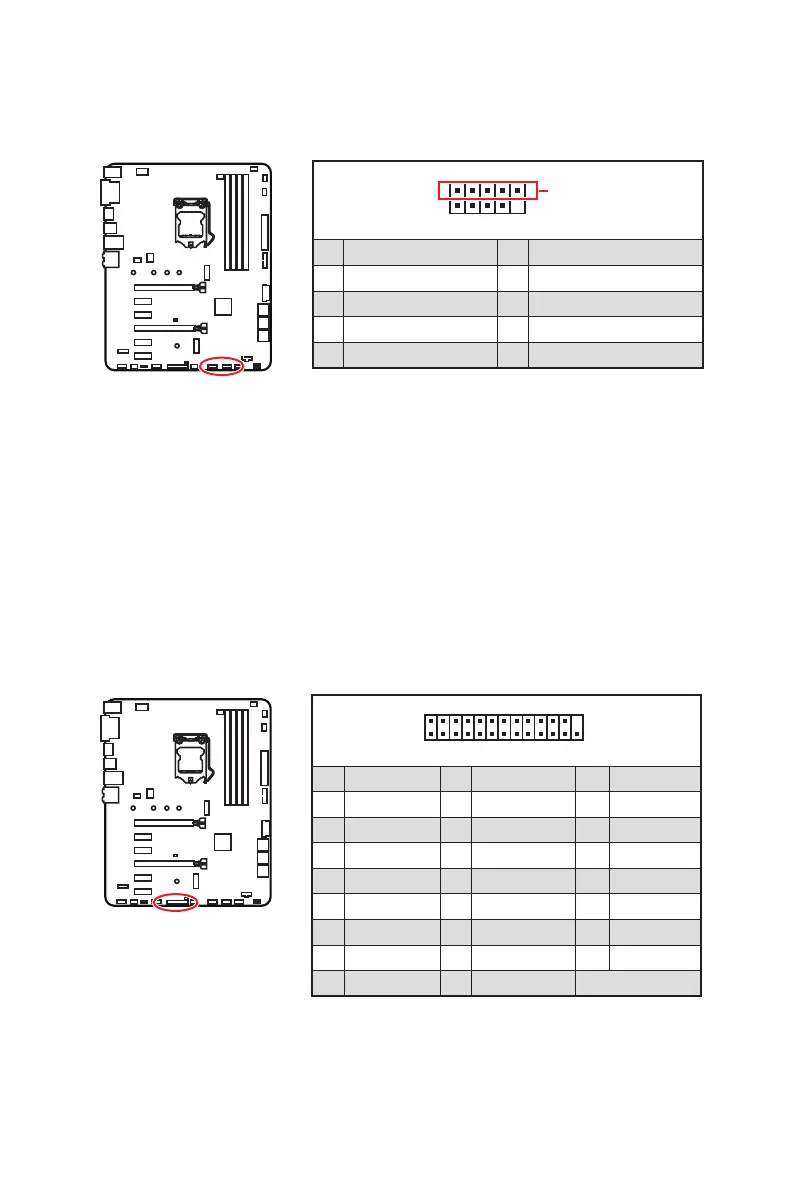

JUSB1~2: USB 2.0 Anschlüsse

verbinden.
⚠
Wichtig
∙ 

kommen.
∙ 
Sie bitte die MSI
DRAGON CENTER Software.
∙ 

1
2 10
Note
9
1 VCC 2 VCC
3  4 
5 USB0+ 6 USB1+
7 Ground 8 Ground
9 No Pin 10 NC


1
2 26
25
1 RSTB# 2 AFD# 3 PRND0
4 ERR# 5 PRND1 6 PINIT#
7 PRND2 8 LPT_SLIN# 9 PRND3
10 Ground 11 PRND4 12 Ground
13 PRND5 14 Ground 15 PRND6
16 Ground 17 PRND7 18 Ground
19 ACK# 20 Ground 21 BUSY
22 Ground 23 PE 24 Ground
25 SLCT 26 No Pin
JLPT1: Parallele Schnittstelle
Mit dieser Schnittstelle können Sie das optionale parallele Schnittstelle mit dem
Einbausatze verbinden.

MSI Z390-A PRO Specifications

General

Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Pentium
Audio chip	Realtek ALC892 / Realtek ALC897
Component for	PC
Motherboard chipset	Intel Z390
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 10
Memory channels	Dual-channel
Memory slots type	DIMM
Unbuffered memory	Yes
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2666, 2800, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4200, 4266, 4300, 4400 MHz
Supported memory module capacities	16GB
Number of M.2 (M) slots	1
PCI Express x16 (Gen 3.x) slots	2
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	SATA
DirectX version	12.0
Maximum resolution	4096 x 2304 pixels
Parallel processing technology support	2-Way CrossFireX
Number of SATA III connectors	6
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
BIOS type	UEFI AMI
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Wi-Fi	No
LAN controller	Intel® I219-V
Ethernet interface type	Gigabit Ethernet
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	305 mm
Width	244 mm
