11

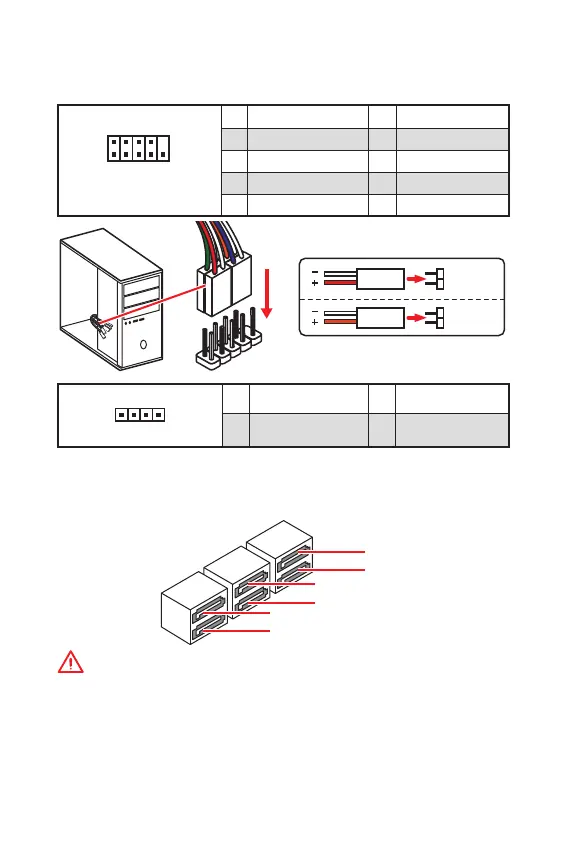

SATA1~6: SATA 6Gb/s
SATA 6Gb/s SATA
SATA1
SATA3
SATA5
SATA2
SATA4
SATA6
y
SATA 90
y
SATA
JFP1, JFP2:
LED
1
2 10
9
JFP1
1 HDD LED + 2 Power LED +
3 HDD LED - 4 Power LED -
5 Reset Switch 6 Power Switch
7 Reset Switch 8 Power Switch
9 Reserved 10 No Pin
1
JFP2
1 Speaker - 2 Buzzer +
3 Buzzer - 4 Speaker +
HDD LED
RESET SW
HDD LED
HDD LED -
HDD LED +
POWER LED -
POWER LED +
POWER LED
JFP1
