Appendix A
A-4Realtek Audio
Hardware Default Setting

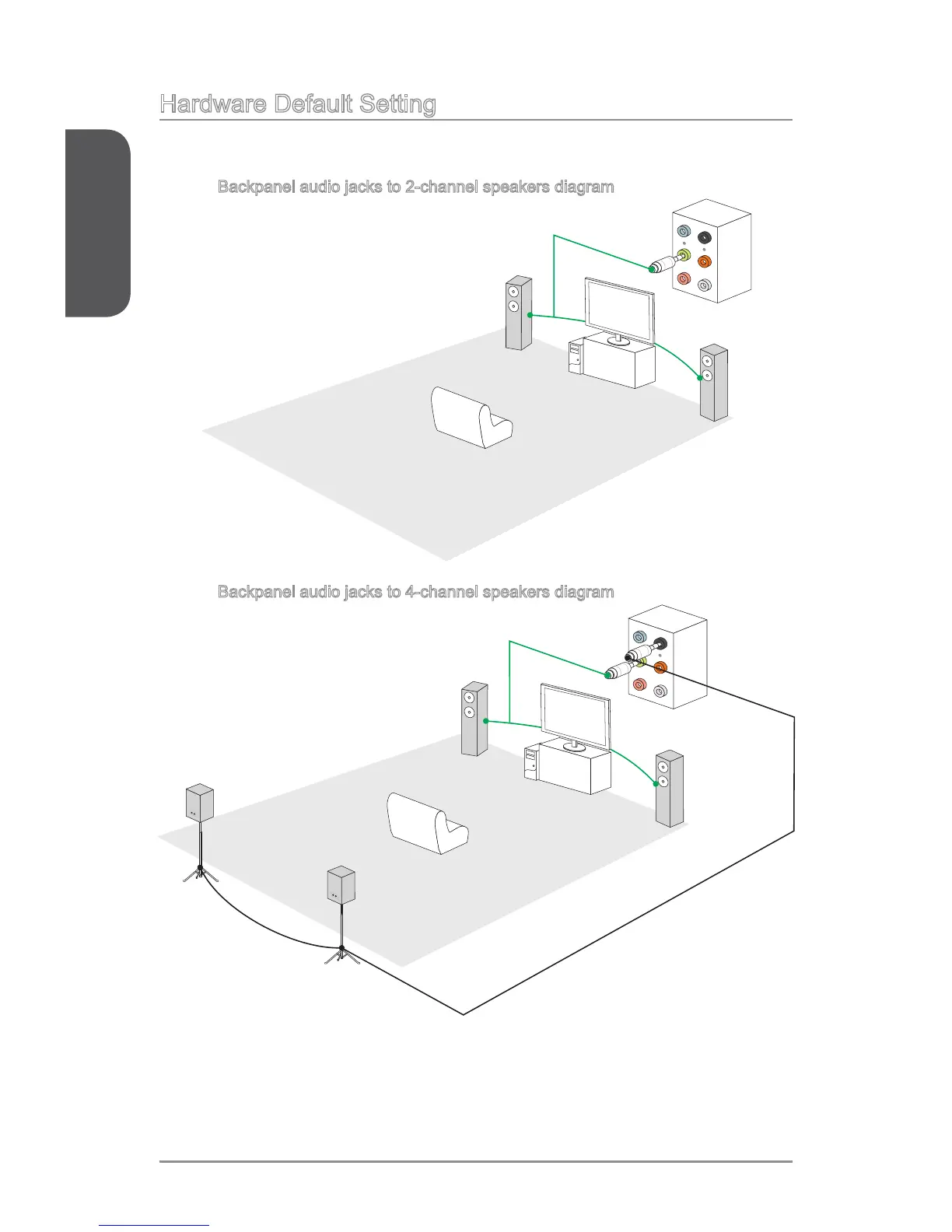

The following diagrams are audio back panel default setting.
Backpanel audio jacks to 2-channel speakers diagram
Front
Backpanel audio jacks to 4-channel speakers diagram
Rear
Front
■
■
