Chapter 1
1-32Getting Started

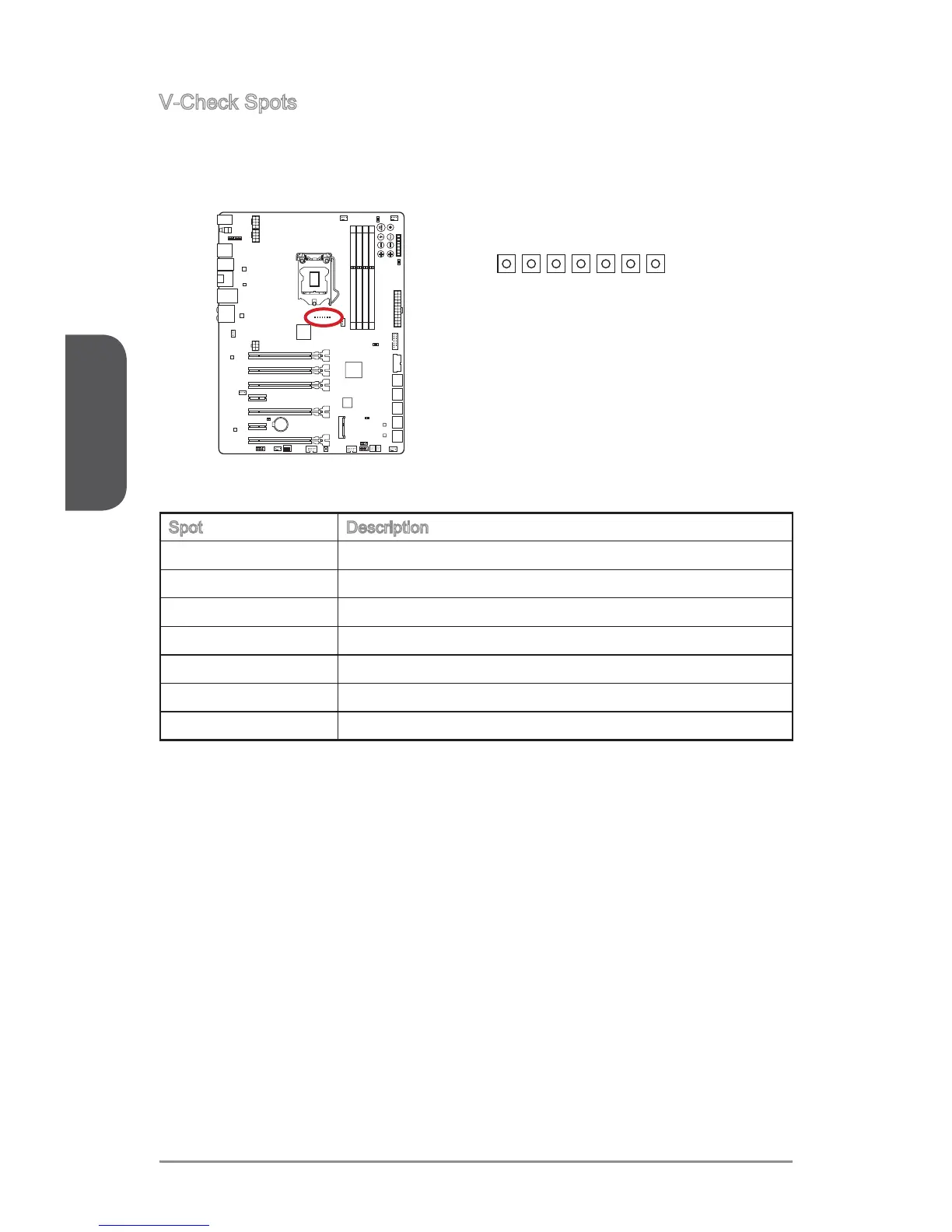

V-Check Spots
These voltage check spots are for you to measure the voltages. To check the voltage,
please attach the positive lead of the multimeter to these spots and the negative lead
to any ground spot.
PCH_1P05
PCH_1P5
CPU_VTT
CPU_CORE2
CPU_CORE1
CPU_CORE3
VCCIOA
Spot Description
PCH_1P05 PCH 1.05V voltage
PCH_1P5 PCH 1.5V voltage
CPU_VTT CPU VTT voltage
CPU_CORE1 CPU core1 voltage
CPU_CORE2 CPU core2 voltage
CPU_CORE3 CPU core3 voltage
VCCIOA IO voltage for CPU VCC
