Chapter 1

1-10Getting Started

Important

This platform supports dual-display and triple-display function.

HDMI+VGA HDMI+DVI VGA+DVI HDMI+VGA+DVI

Extend mode

(Extend the desktop to the second

and third monitor)

◯ ◯ ◯ ◯

Clone mode

(Monitors have the same screen)

◯ ◯ ◯ ◯

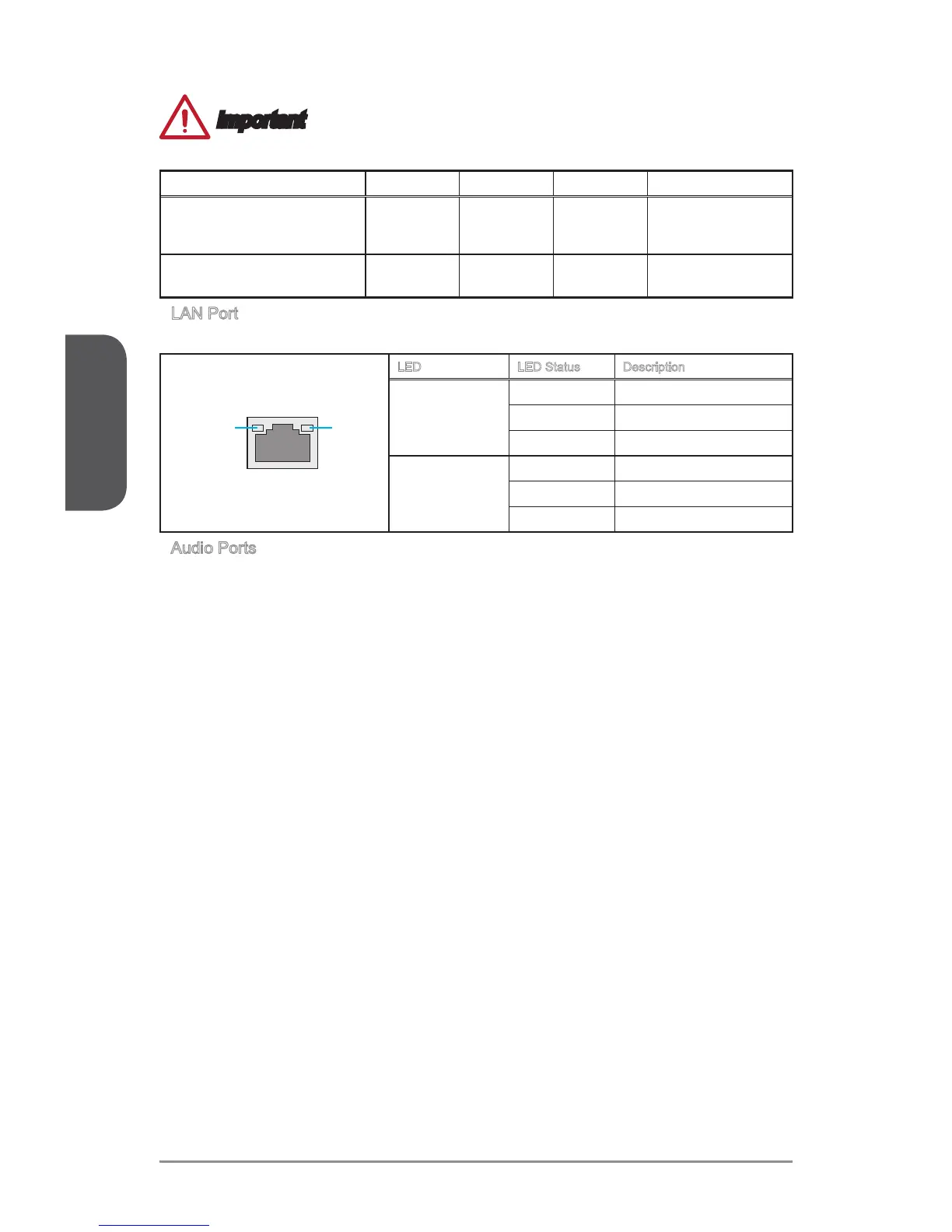

LAN Port

The standard RJ-45 LAN jack is for connecting to a Local Area Network (LAN).

LINK/ACT

LED

SPEED

LED

LED LED Status Description

Link/ Activity LED

O󰘯 No link

Yellow Linked

Blinking Data activity

Speed LED

O󰘯 10 Mbps connection

Green 100 Mbps connection

Orange 1 Gbps connection

Audio Ports

These connectors are used for audio devices. The color of the jack refers to the

function of the connector.

Blue-Line in: Used for connecting external audio outputting devices.

Green- Line out: Used as a connector for speakers or headphone.

Pink- Mic: Used as a connector for a microphone.

▶

■
