6 . Install the new belt by hooking it over the engine
pulley and twisting the belt to the left as you at¬
tach it to the pulley.
7. Test the operation of the tractor to make certain
the belt has been installed correctly.

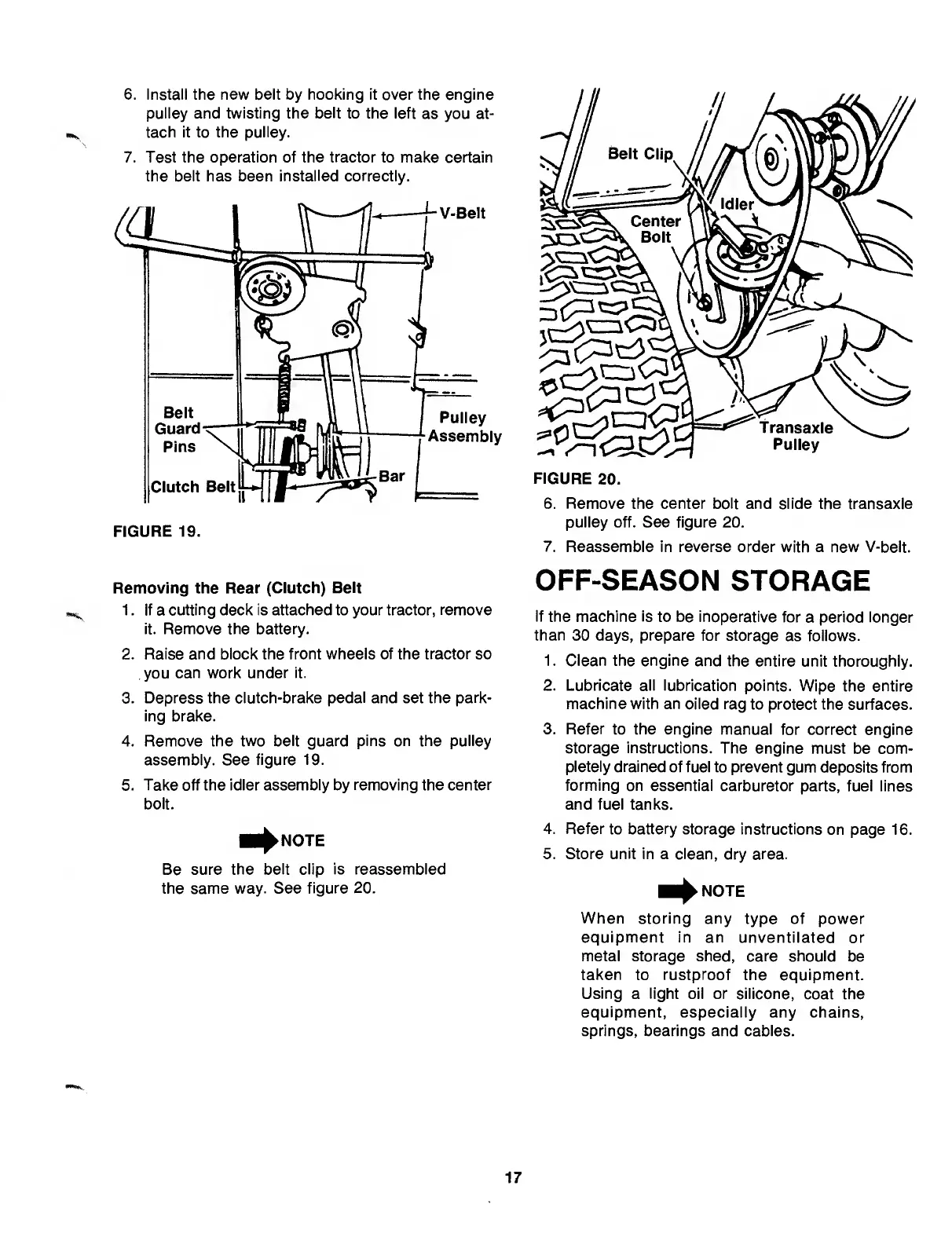

FIGURE 19.
FIGURE 20.
6 . Remove the center bolt and slide the transaxle
pulley off. See figure 20.
7. Reassemble in reverse order with a new V-belt.
Removing the Rear (Clutch) Belt OFF-SEASON STORAGE
1. If a cutting deck is attached to your tractor, remove
it. Remove the battery.
2. Raise and block the front wheels of the tractor so
you can work under it.
3. Depress the clutch-brake pedal and set the park¬
ing brake.
4. Remove the two belt guard pins on the pulley
assembly. See figure 19.
5. Take off the idler assembly by removing the center
bolt.
■ i^NOTE
Be sure the belt clip is reassembled
the same way. See figure 20.
If the machine is to be inoperative for a period longer
than 30 days, prepare for storage as follows.
1. Clean the engine and the entire unit thoroughly.
2. Lubricate all lubrication points. Wipe the entire
machine with an oiled rag to protect the surfaces.
3. Refer to the engine manual for correct engine
storage instructions. The engine must be com¬
pletely drained of fuel to prevent gum deposits from
forming on essential carburetor parts, fuel lines
and fuel tanks.
4. Refer to battery storage instructions on page 16.
5. Store unit in a clean, dry area.
^^NOTE
When storing any type of power
equipment in an unventilated or
metal storage shed, care should be
taken to rustproof the equipment.
Using a light oil or silicone, coat the
equipment, especially any chains,
springs, bearings and cables.
17
