MTD 148-802-000 User Manual

Models 802 thru 828

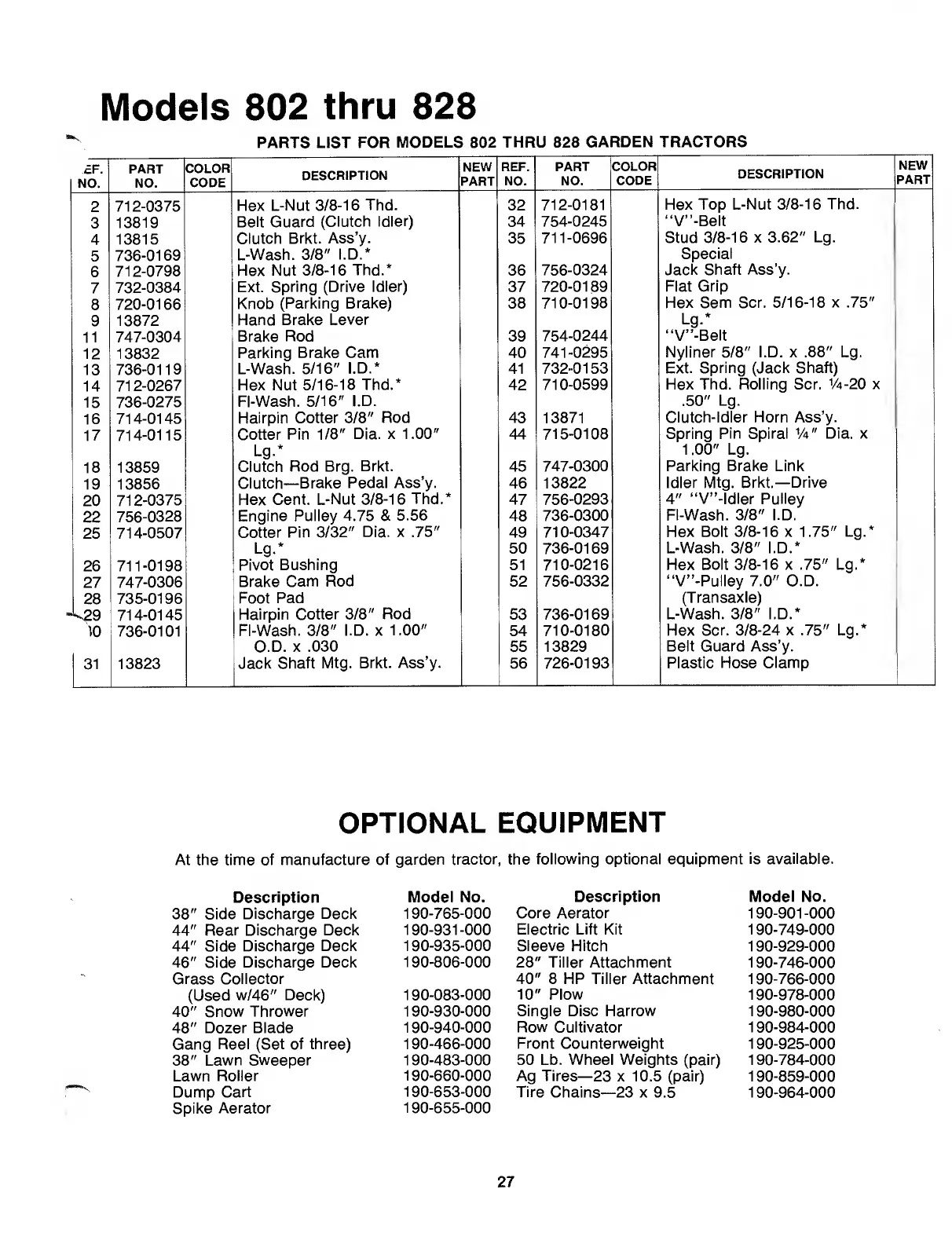

PARTS LIST FOR MODELS 802 THRU 828 GARDEN TRACTORS
£F.
NO.
PART
NO.
COLOR
CODE
DESCRIPTION
NEW
PART
REF.
NO.
PART
NO.
COLOR
CODE
DESCRIPTION
NEW
PART
2
712-0375
Hex L-Nut 3/8-16 Thd. 32 712-0181
Hex Top L-Nut 3/8-16 Thd.
3
13819
Belt Guard (Clutch Idler) 34 754-0245
“V”-Belt
4
13815
Clutch Brkt. Ass’y-
35
711-0696
Stud 3/8-16 X 3.62" Lg.
5
736-0169
L-Wash. 3/8" I.D.*
Special
6
712-0798
Hex Nut 3/8-16 Thd.* 36
756-0324
Jack Shaft Ass’y.
7
732-0384
Ext. Spring (Drive Idler) 37 720-0189
Flat Grip
8
720-0166
Knob (Parking Brake) 38
710-0198
Hex Sem Scr. 5/16-18 x .75"
9
13872
Hand Brake Lever
Lg.*
11
747-0304 Brake Rod
39
754-0244 “V”-Belt
12
13832
Parking Brake Cam 40
741-0295
Nyliner 5/8" I.D. x .88" Lg.
13
736-0119
L-Wash. 5/16" I.D.* 41 732-0153
Ext. Spring (Jack Shaft)
14
712-0267
Hex Nut 5/16-18 Thd.* 42 710-0599
Hex Thd. Rolling Scr. y4-20 x
15
736-0275
FI-Wash. 5/16" I.D.
.50" Lg.
16
714-0145
Hairpin Cotter 3/8" Rod 43
13871
Clutch-Idler Horn Ass’y.
17 714-0115
Cotter Pin 1/8" Dia. x 1.00" 44 715-0108
Spring Pin Spiral V4" Dia. x
Lg-*
1.00" Lg.
18 13859
Clutch Rod Brg. Brkt. 45
747-0300
Parking Brake Link
19
13856
Clutch—Brake Pedal Ass’y. 46
13822
Idler Mtg. Brkt.—Drive
20
712-0375
Hex Cent. L-Nut 3/8-16 Thd.* 47 756-0293
4" “V”-ldler Pulley
22
756-0328
Engine Pulley 4.75 & 5.56 48
736-0300
FI-Wash. 3/8" I.D.
25
714-0507
Cotter Pin 3/32" Dia. x .75" 49
710-0347 Hex Bolt 3/8-16 x 1.75" Lg.*
Lg.*
50 736-0169
L-Wash. 3/8" I.D.*
26
711-0198
Pivot Bushing 51 710-0216
Hex Bolt 3/8-16 x .75" Lg.*
27
747-0306
Brake Cam Rod 52 756-0332
“V”-Pulley 7.0" O.D.
28 735-0196
Foot Pad
(T ransaxle)
■ -k29
714-0145
Hairpin Cotter 3/8" Rod
53
736-0169
L-Wash. 3/8" I.D.*
10
736-0101
FI-Wash. 3/8" I.D. x 1.00" 54
710-0180
Hex Scr. 3/8-24 x .75" Lg.*
O.D. X .030
55
13829
Belt Guard Ass’y.
31
13823
Jack Shaft Mtg. Brkt. Ass’y.
56 726-0193
Plastic Hose Clamp
OPTIONAL EQUIPMENT
At the time of manufacture of garden tractor, the following optional equipment is available.
Description
38" Side Discharge Deck
44" Rear Discharge Deck
44" Side Discharge Deck
46" Side Discharge Deck
Grass Collector
(Used w/46" Deck)
40" Snow Thrower
48" Dozer Blade
Gang Reel (Set of three)
38" Lawn Sweeper
Lawn Roller
Dump Cart
Spike Aerator
Modei No.
190-765-000
190-931-000
190-935-000
190-806-000
190-083-000
190-930-000
190-940-000
190-466-000
190-483-000
190-660-000
190-653-000
190-655-000
Description
Core Aerator
Electric Lift Kit
Sleeve Hitch
28" Tiller Attachment
40" 8 HP Tiller Attachment
10" Plow
Single Disc Harrow
Row Cultivator
Front Counterweight
50 Lb. Wheel Weights (pair)
Ag Tires—23 x 10.5 (pair)
Tire Chains—23 x 9.5
Model No.
190-901-000
190-749-000
190-929-000
190-746-000
190-766-000
190-978-000
190-980-000
190-984-000
190-925-000
190-784-000
190-859-000
190-964-000
27
