A and B series mowers
20
Trail shield
To remove/replace a trail shield:
1. Grab the trail shield in the middle.
2. Pull back on the trial shield, bending it until it clears
the sub frame.
3. Install it by bending it until the pins fit into the sub-
frame.
4. Let the trail shield snap into place.
5. Test run the mower in a safe area before returning it
to service.
Side discharge door
To remove/replace the side discharge/mulching door:
1. Disconnect the spark plug wire.
2. Open the side discharge door.
3. Remove the screw that secures the hinge to the
mowing deck using a 3/8” wrench.
4. Install by following the previous steps in reverse
order.
NOTE: The hinge is spring loaded. Hold the hinge
flat against the deck before starting the
screw.
5. Test run the mower in a safe area before returning it to service.
Never operate a mower without the trail shield. It is a safety feature that is required by law.
The trail shield is designed to drag on the ground behind the mower. This helps keep the oper-
ator from getting their feet under the mowing deck.
! CAUTION! CAUTION

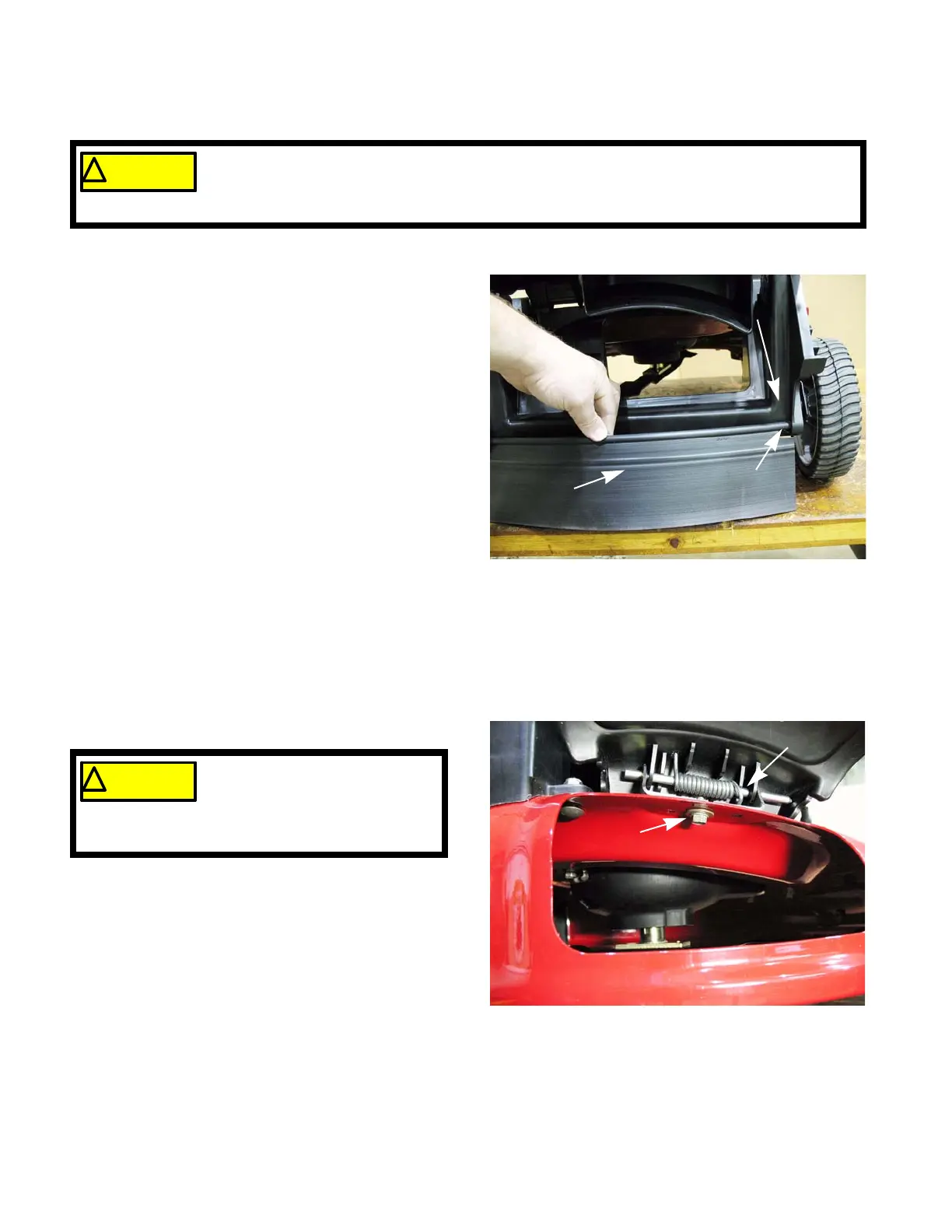

Figure 4.3
Trail shield
Pin
Sub-frame
Figure 4.4
Screw
Hinge
Serious injury from flying debris
is possible if the machine is
operated with the side dis-
charge door open and the side discharge
chute is not in place
! CAUTION! CAUTION
