Mueller E-Star OESE-A51-HFC User Manual

Mueller E-Star OESE 3.5 and 5 HP HFC Condensing Unit
Installation and Operation Manual, Part No. 8828747 Effective April 13, 2020
15

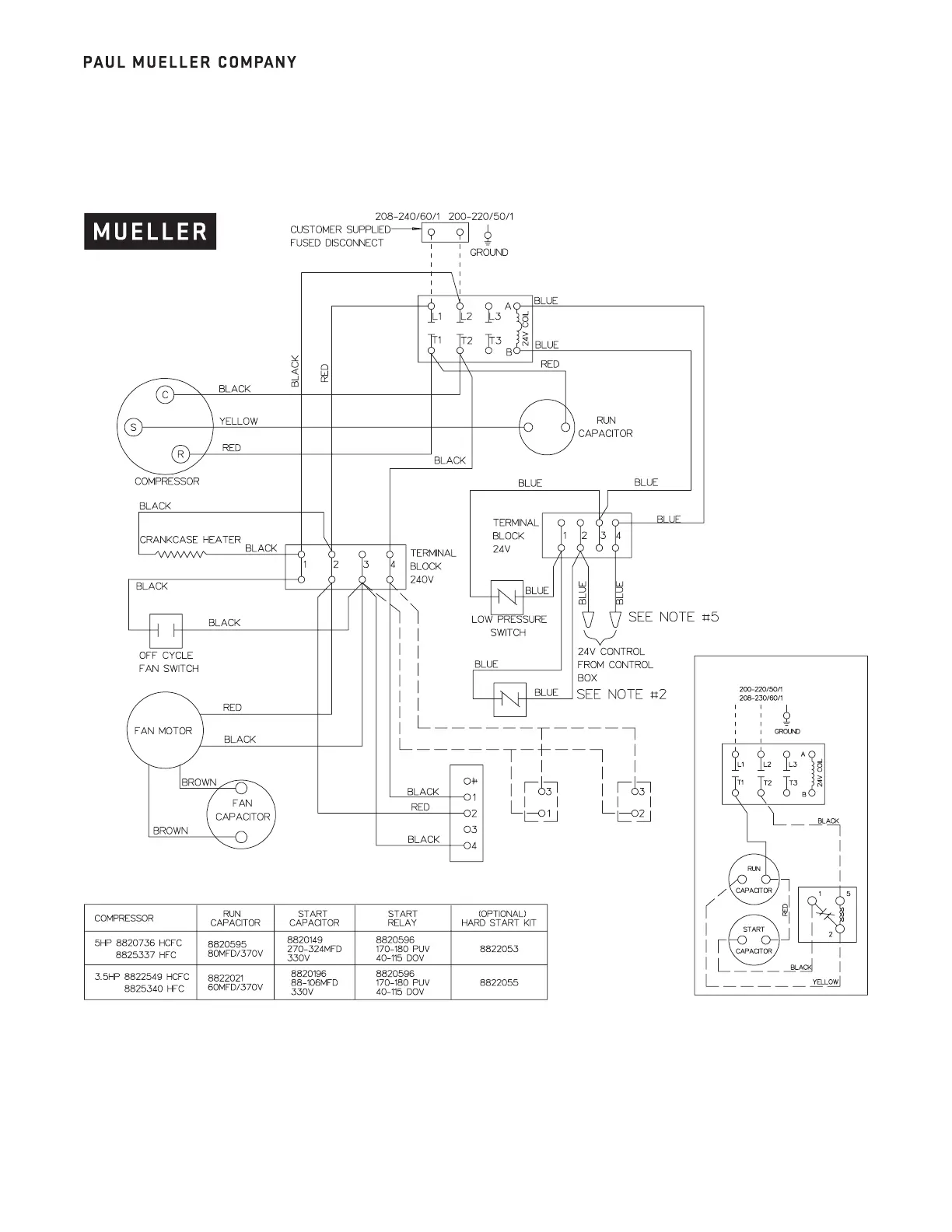

7.3 OESE 3.5 AND 5 HP, 200–220/50/1, 208–230/60/1 WIRING SCHEMATIC
DFE0153
NO
TES:
1.
CAUTION: The side of the control circuit employing the safety device shall not be grounded.
2.
Minimal 20 VA transformer required for control voltage.
3.
Use minimum of 75°C insulated copper wire on field wiring.
4.
Fan motor is internally thermal protected.
5.
Connect 24-volt control wiring to leads with supplied wire nuts.
6.
Field wiring not to come in contact with control box heater.
7. All enforced electrical codes must be followed during installation, service, and/or operation of this equipment.
CONDENSING UNIT WIRING SCHEMATIC
FOR CONTROL CABINETS UTILIZIN
G
24-VOLT CONTROL OU
TPUT
CONDENSING UNIT WIRING
SCHEMATIC FOR HARD START KIT
FAN SPEED
CONTROL
FV31-S2-15S
EFFECTIVE TO
SEPTEMBER 2002
FAN SPEED
CONTROL
FV31-S2-25S
EFFECTIVE TO
JANUARY 2002
FAN SPEED
CONTROL
CURRENT
