Section 3 Operation
Part Number 000003912 6/17 3-3

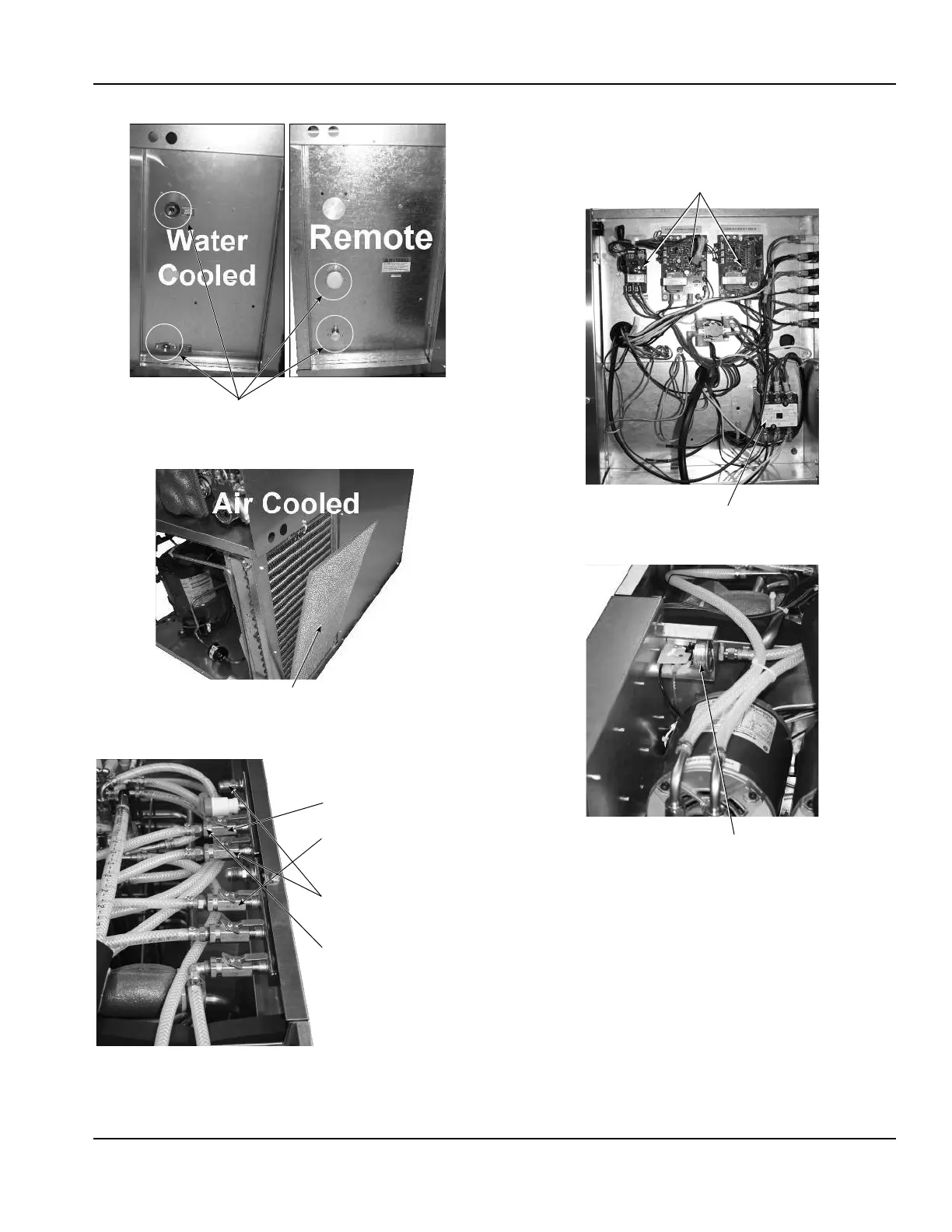

WATER MANIFOLD TS
ELECTRICAL TS
• TS remote and water-cooled back panel connections
are offset to protect fittings.
• TS air-cooled condenser comes standard with a filter.
Two Stainless Steel log
style manifolds
• One regulated supply for
carbonator pumps.
• One unregulated supply
for non-carb drinks and
water bath fill.
Other Connections
• Connections are made in
the water bath
compartment.
• Separate plain water
manifold eliminates need
to plug off during
installation
• New unit has service connections in the electrical compartment.
Allows more room to work and more reliable connection.
• Electrical compartment has been moved up on the unit to
eliminate water intrusion potential from the pump compartment.
• All components are now 208/230V. This eliminates the need for
a neutral wire.
• Pump protection switch has been moved to the
pump compartment to eliminate potential leak point
in electrical compartment.
