National Instruments NI 6221 User Manual

Chapter 7 Counters
M Series User Manual 7-10 ni.com
Method 1b—Measure Low Frequency with
One Counter (Averaged)
In this method, you measure several periods of your signal using a known
timebase. This method is good for low to medium frequency signals.
You can route the signal to measure (F1) to the Gate of a counter. You can
route a known timebase (Ft) to the Source of the counter. The known
timebase can be 80MHzTimebase. For signals that might be slower than
0.02 Hz, use a slower known timebase.
You can configure the counter to make K + 1 buffered period
measurements. Recall that the first period measurement in the buffer should
be discarded.
Average the remaining K period measurements to determine the average
period of F1. The frequency of F1 is the inverse of the average period.

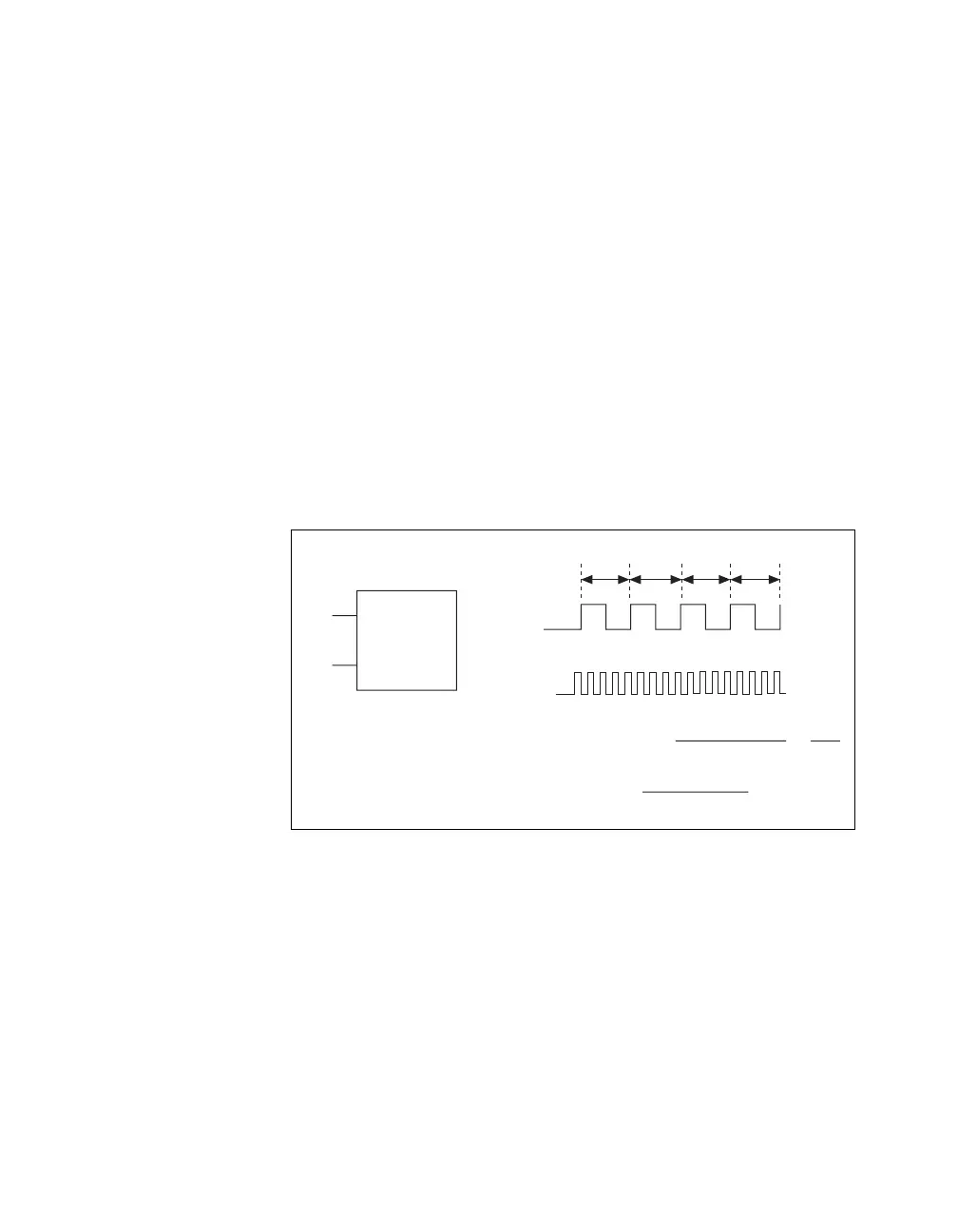

Figure 7-11 illustrates this method.
Figure 7-11. Method 1b
F1
Ft
F1
Intervals Measured
Gate
Source
Buffered Period
Measurement
Average Period of F1 =
N
1
+ N
2
+ … N
K
K
Frequency of F1 =
N
1
+ N
2
+ … N
K
K × Ft
Ft
T
1
T
2
…T
K
1
Ft
×
1
2 ... N
1
1... ... N
2
… 1... ... N
K
