8

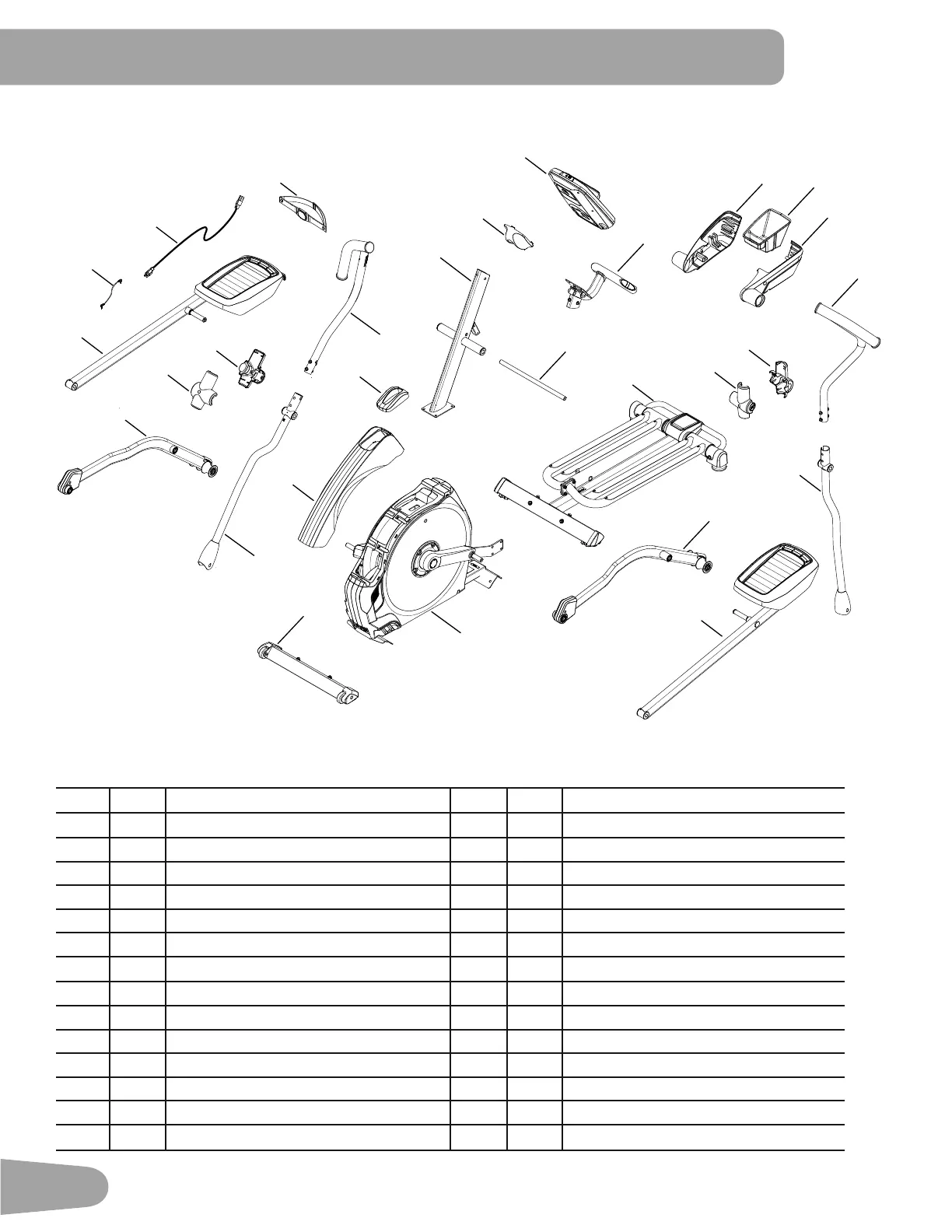

A decal has been applied to all right (“ R ”) and left (“ L ”) parts to assist with assembly.
Item Qty Description Item Qty Description
1 1 Console Mast 15 1 Left Pedal
2 1 Console Junction Cover 16 1 Frame
3 1 Console 1 Front Stabilizer
4 1 Static Handlebar 18 1 Lower Right Handlebar Arm
5 1 Water Bottle Holder Shroud, Right 19 1 Upper Right Handlebar Arm
6 1 Water Bottle Holder 20 1 Upper Shroud
1 Water Bottle Holder Shroud, Left 21 1 Shroud Cap
8 1 Upper Left Handlebar Arm 22 1 Right Leg
9 2 Handlebar Shroud, Outer 23 1 Right Pedal
10 2 Handlebar Shroud, Inner 24 1 MP3 Cord
11 1 Rail Assembly 25 1 Power Cord
12 1 Arm Pivot Rod 26 1 Heart Rate (HR) Chest Strap
13 1 Left Leg 1 Silicone Lubricant, Bottle (not shown)
14 1 Lower Left Handlebar Arm
PARTS
24
25
1
2
3
4
5
6
7
8
9
10
10
9
11
12
13
14
15
16
20
17
18
19
21
22
23
26
