SECTION 1 – ENGINE SYSTEMS
Engine Component Locations (cont.)
COMPONENT LOCATION - EXHAUST SIDE

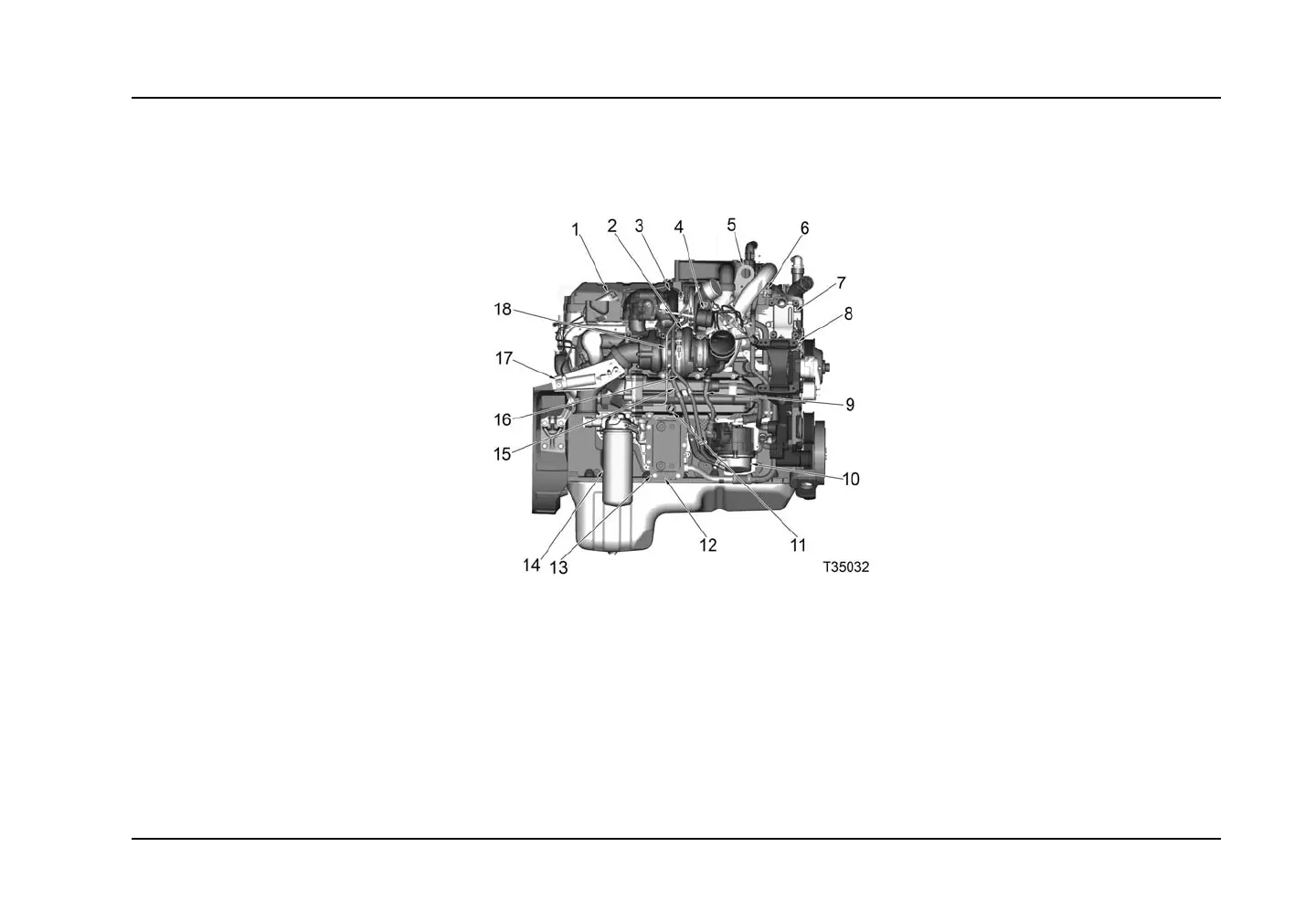

Figure 6 Exhaust side
1. Exhaust brake valve assembl y
2. Low-pressure turbocharger
3. H igh-pressure turbocharger
4. Turbocharger wastegate actuator
5. Lifting eye
6. Vehicle heater port
7. Water supply housing refrigerant
compressor mount
8. Alternator bracket
9. Crankcase breather outlet tube
10. Crankcase breather assembly with
turbine
11. Exhaust Gas Recirculation (EGR) coolant
drain plug
12. Coolant drain plug
13. Oil cooler module
14. Oil filter
15. Lo w-pressure turbo oil drain tube
16. High-pressure turbo oil drain tube
17. Exha ust b rake assembly
18. Turbocharger oil supply tube
Form No. 1172040R1
Printed in the United States of America Page 27
