SECTION 1 – ENGINE SYSTEMS
Engine Component Locations (cont.)
COMPONENT LOCATION - REAR

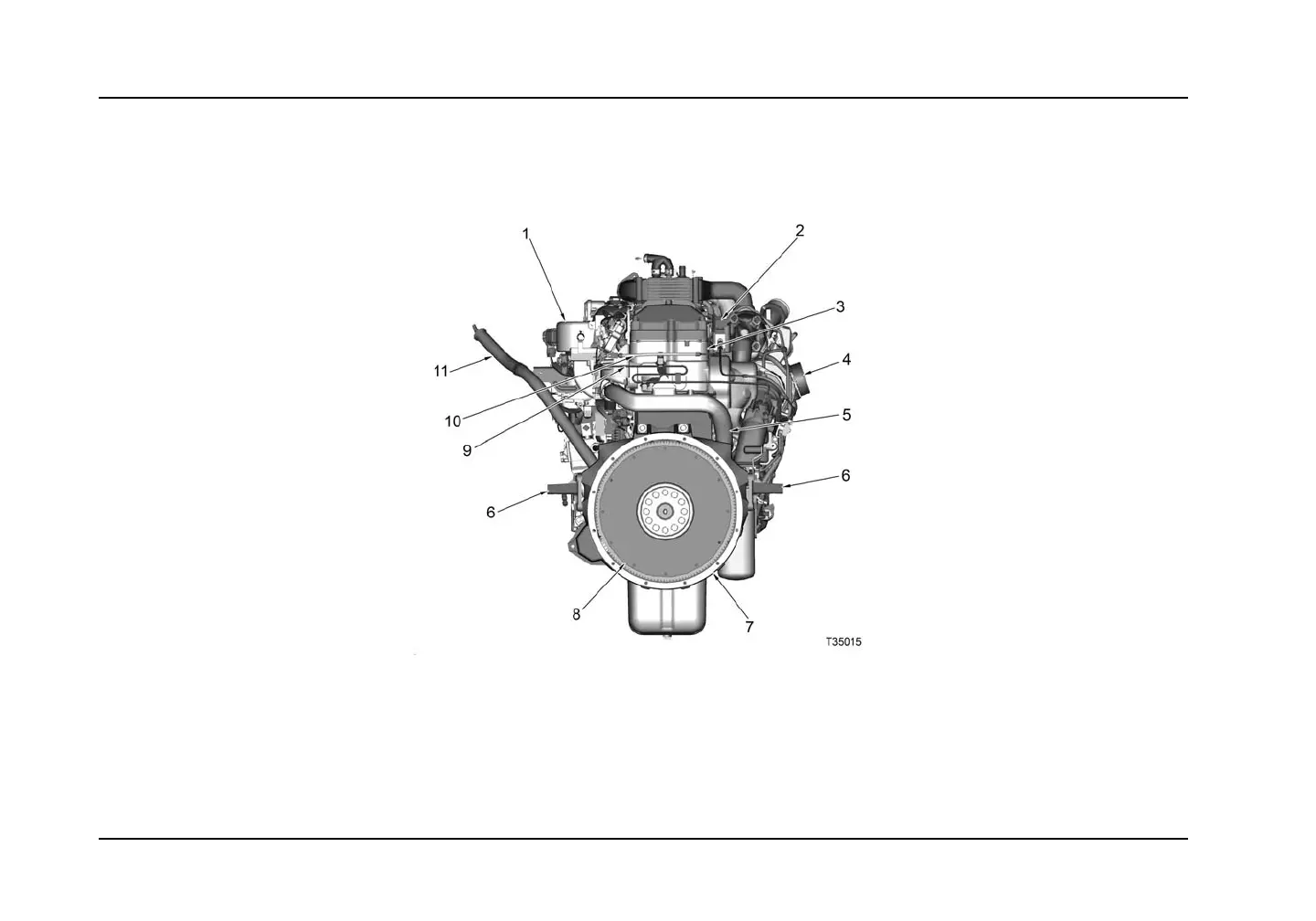

Figure 7 Rear
1. Air and Exhau st Gas Recirculation (EGR)
mixer
2. Exhaust brake valve
3. Cylinder head
4. Turbo air inlet duct
5. EGR crossover tube assembly
6. Rear engine mounting bra cket (2)
7. Flywheel housing
8. Flywheel
9. Injector feed tube assembly
10. Exhaust brake valve supply hose
11. Oil fi ll tube
Form No. 1172040R1
Page 28
Printed in the United States of America
